06NA2174S7NA-A00 85HP Air Cooled Screw Compressor HVAC
06NA2174S7NA-A00 85HP Air Cooled Screw Compressor HVAC
06NA2174S7NA-A00 85HP Air Cooled Screw Compressor HVAC
06NA2174S7NA-A00 85HP Air Cooled Screw Compressor HVAC
06NA2174S7NA-A00 85HP Air Cooled Screw Compressor HVAC
06NA2174S7NA-A00 85HP Air Cooled Screw Compressor HVAC
06NA2174S7NA-A00 85HP Air Cooled Screw Compressor HVAC
06NA2174S7NA-A00 85HP Air Cooled Screw Compressor HVAC
Specifications
Model Number :
06NA2174S7NA-A00
Brand Name :
Carlyle
Packaging Details :
WOODEN CASE
Payment Terms :
Western Union,T/T
Condensertype :
Air-cooled
Horse Power :
85HP
Supply Ability :
100PC
Compressor Type :
Screw
MOQ :
1
Delivery Time :
1 Month
Certification :
CE
Place of Origin :
China
Price :
Discussed
Commercial Refrigeration :
HVAC&Cooling Units
Refrigerant :
R134a
Description
06NA2174S7NA-A00 85HP Air Cooled Screw Compressor HVAC
Product Overview
Advanced screw compressor designed for large-scale air conditioning and industrial fluid chilling applications with superior efficiency and reliability.
Precision Energy Management
Features a 3-step capacity modulation system (100%-66%-33%) driven by dual solenoid valves, enabling precise matching to variable thermal demands while reducing power consumption during partial-load operation.
Robust Construction
Engineered with patented high-precision rotor profiles, heavy-duty SKF/NSK bearings, and integrated safety components including internal check valve, oil filter, safety relief valve, and discharge muffler for continuous, quiet operation.
Environmental Compliance
Operates on eco-friendly R134a refrigerant with UL, CE, and ISO 9002 certifications. Features high-efficiency motor windings with NTC thermal sensors and supports Y-Δ step-starting across global voltage standards.
Product Image
06NA2174S7NA-A00 85HP Air Cooled Screw Compressor HVAC

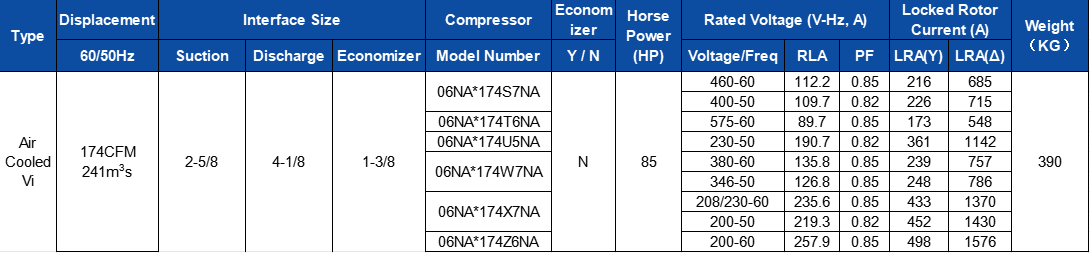

Technical Specifications
Model 06NA2174S7NA-A00
Nominal Power 85 HP
Refrigerant Type R134a
Displacement (60/50Hz) 174 CFM / 241 m³/h
Economizer N
Rated Voltage (V-Hz, A) 460V-60Hz-112.2A
400V-50Hz-109.7A
Weight 390 kg
06NA2174S7NA-A00 85HP Air Cooled Screw Compressor HVAC
Company Profile
Ruifujie brings over 20 years of technical expertise to the global cooling industry, manufacturing high-performance scroll, piston, rotary, semi-hermetic, and screw compressors, as well as complete cold storage equipment and commercial ice machines.
We provide comprehensive OEM/ODM customization options to adapt equipment to localized voltage standards and regional engineering requirements. Our machinery is exported worldwide to major international markets including Canada, the United Arab Emirates, and Peru, earning trusted long-term partnerships with global contractors and distributors.
06NA2174S7NA-A00 85HP Air Cooled Screw Compressor HVAC
Frequently Asked Questions
What are the exact displacement figures and port dimensions for the 06NA2174S7NA-A00 model?
The 06NA2174S7NA-A00 yields a displacement of 241 m³/h at 50Hz (174 CFM at 60Hz), featuring a 2-5/8 in suction port and a 4-1/8 in discharge port.
Does this 85HP screw compressor model include an economizer port interface?
No, the 06NA2174S7NA-A00 is the standard non-economizer version designed specifically for direct-expansion air-cooled chiller applications.
What internal protective features are built into this screw compressor unit?
The unit contains an internal check valve to prevent reverse rotation, an internal safety relief valve, a built-in oil filter, a discharge muffler, and NTC thermistor thermal sensors.
What is the standard production lead time for bulk volume orders?
Standard bulk production orders are completed and prepared for dispatch within 10 to 15 working days.
How is this heavy 390 kg unit packaged for safe international transport?
Each compressor is securely bolted onto a reinforced wooden pallet, wrapped in moisture-proof anti-corrosion film, and fully enclosed in a heavy-duty export plywood crate.
Start Your Project Engineering
Finding the exact compressor match for complex chillers or low-temperature systems requires expert application analysis. Our engineering specialists at Ruifujie assist you with precise component matching, voltage customization, and private label support.
Submit your cooling capacity requirements, operating conditions, and delivery timeline today, and our team will deliver a comprehensive proposal within eight hours.
