06TVW680 225HP R134a Industrial Water Cooled Screw AC Refrigeration Compressor
06TVW680 225HP R134a Industrial Water Cooled Screw AC Refrigeration Compressor
06TVW680 225HP R134a Industrial Water Cooled Screw AC Refrigeration Compressor
06TVW680 225HP R134a Industrial Water Cooled Screw AC Refrigeration Compressor
06TVW680 225HP R134a Industrial Water Cooled Screw AC Refrigeration Compressor
06TVW680 225HP R134a Industrial Water Cooled Screw AC Refrigeration Compressor
06TVW680 225HP R134a Industrial Water Cooled Screw AC Refrigeration Compressor
06TVW680 225HP R134a Industrial Water Cooled Screw AC Refrigeration Compressor
Specifications
MOQ :
1
Delivery Time :
1 Month
Compressor Type :
Water Cooled
Packaging Details :
WOODEN CASE
Model Number :
06TVW680
Application :
HVAC, Cooling Units, Cold Room
Payment Terms :
Western Union,T/T
Price :
Discussed
Supply Ability :
100000Pcs/Year
Certification :
CE
Refrigerant :
R134a/R22/R404A/R407C/R507/R448A/R449A
Brand Name :
Carlyle/Carrier
Horse Power :
225HP
Place of Origin :
China
Displacement 60/50Hz :
1133 / 944 m3/hr
Description
06TVW680 225HP R134a Industrial Water Cooled Screw AC Refrigeration Compressor
Product Overview
The 06TVW680 AC screw compressor is an industrial-grade cooling engine designed for large commercial water-cooled liquid chillers, central air conditioning installations, and heavy process refrigeration systems using R134a refrigerant.
Key Features
  • High Volumetric Output: Powered by a high-torque 225 HP motor delivering up to 1133 m³/hr displacement for rapid thermal pull-down and stable efficiency
  • Stepless Output Modulation: 25%-100% (or optional 15%-100%) capacity modulation with integrated economizer circuit for optimized system performance
  • Energy Efficient: Minimizes electrical consumption during part-load operating cycles with improved COP
  • Heavy-Duty Construction: 1173 kg weight with precision 5-inch suction and 4-1/8-inch discharge flange connections
  • Durable Design: Anti-friction rolling bearings, thermal-protected motor windings, and zero-leakage dual-casing frame
Standard & Optional Accessories
  • Standard: Terminal box, oil system components, motor protection device, capacity control device, stop valve
  • Optional: Paragon control module / Kriwan protection module, oil separator, flanges, economizer, oil cooler, high-temperature expansion valve

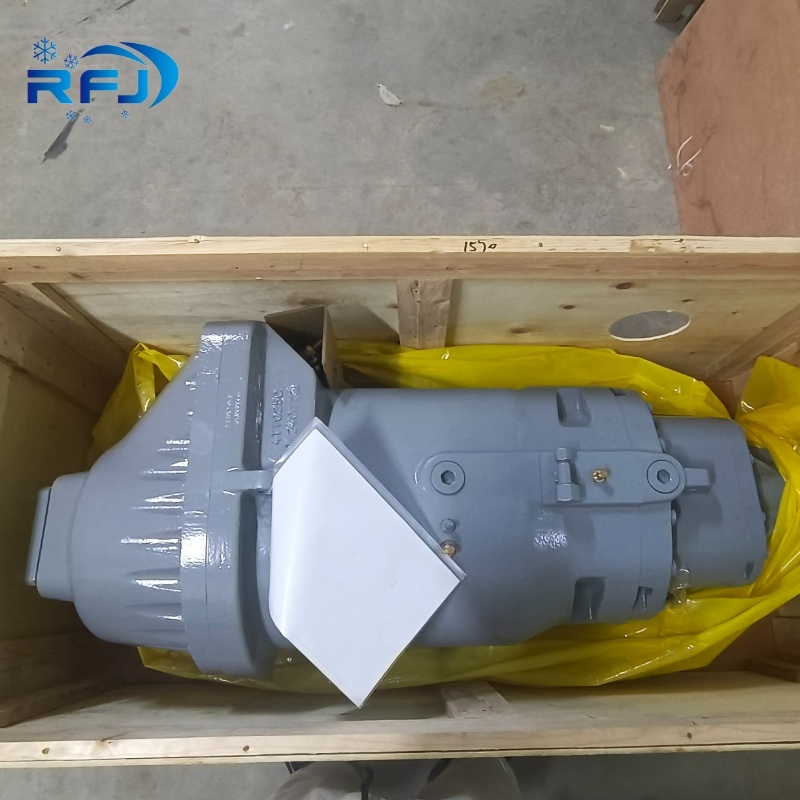

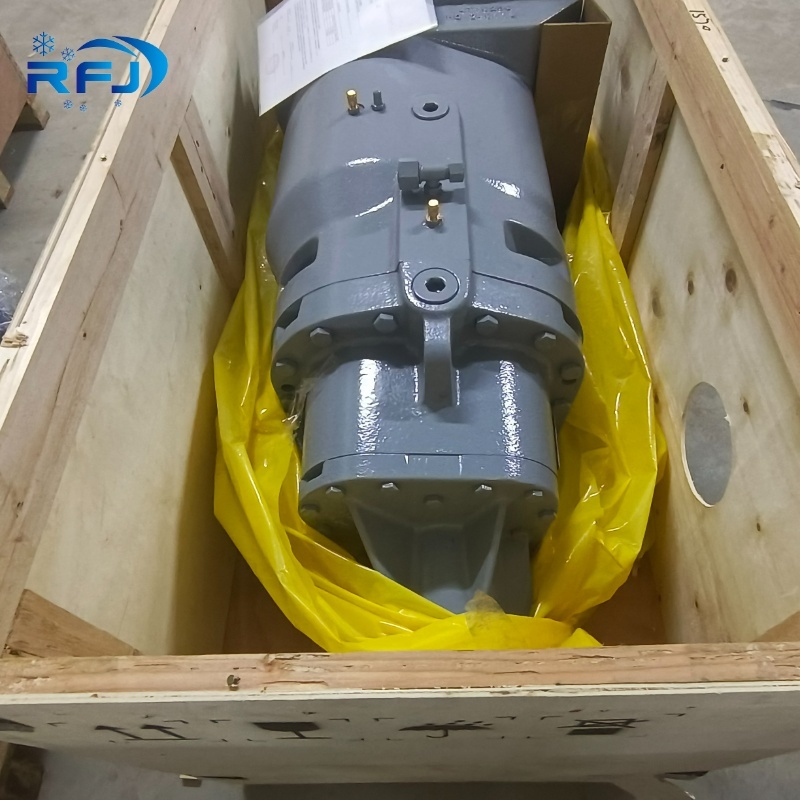

Product Image
06TVW680 225HP R134a Industrial Water Cooled Screw AC Refrigeration Compressor

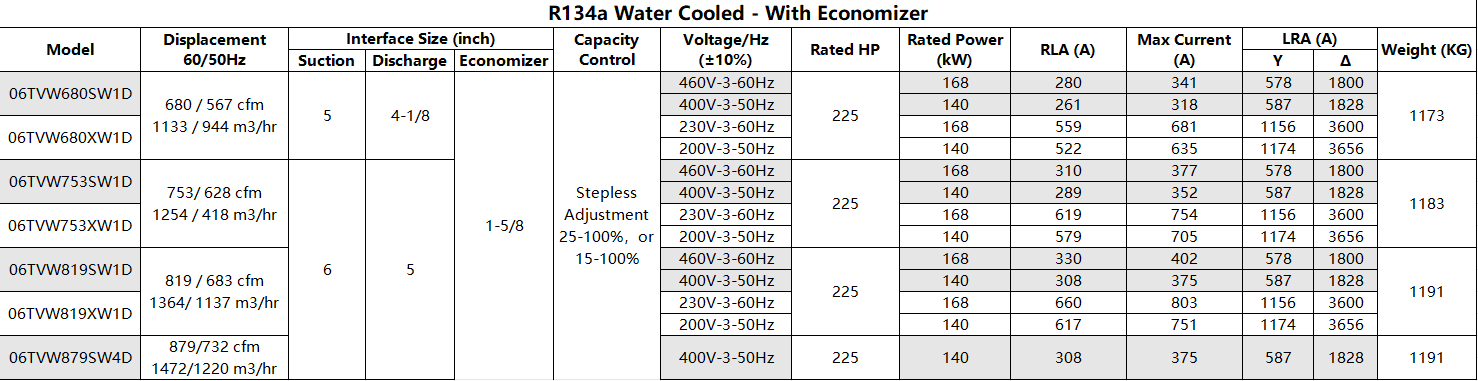

Technical Specifications
Model 06TVW680
Nominal Power 225HP
Refrigerant Type R134a
Displacement (60/50Hz) 680 / 567 cfm | 1133 / 944 m³/hr
Capacity Control Stepless Adjustment 25-100%/15-100%
Economizer Y
Voltage (V,A) 06TVW680SW1D | 460V-3-60Hz-280A
400V-3-50Hz-261A
06TVW680XW1D | 230V-3-60Hz-559A
200V-3-50Hz-522A
Weight 1173kg
06TVW680 225HP R134a Industrial Water Cooled Screw AC Refrigeration Compressor
Company Introduction
With over two decades of technical expertise in industrial cooling systems, Ruifujie operates as a modernized enterprise producing premium scroll, piston, rotary, semi-hermetic, and twin-screw compressors, alongside cold room evaporators, quick-freezing equipment, and industrial ice machinery.
We offer full OEM/ODM engineering customization tailored to international project standards. Ruifujie products are exported worldwide, serving engineering clients in Russia, the United States, the United Kingdom, Saudi Arabia, the UAE, and other regions.
06TVW680 225HP R134a Industrial Water Cooled Screw AC Refrigeration Compressor
Frequently Asked Questions
Q1: What central air conditioning systems are best matched for the 06TVW680 model?
A1: The 06TVW680 is engineered for commercial R134a water-cooled chillers, central air conditioning plants, and high-capacity industrial liquid chilling operations.
Q2: What interface connections are configured on the 06TVW680 compressor?
A2: The unit is equipped with a 5-inch suction port, a 4-1/8-inch discharge port, and a 1-5/8-inch economizer port for liquid subcooling integration.
Q3: How does the 15% -100% capacity control range benefit building operators?
A3: It enables smooth continuous capacity adjustment during light thermal load periods, preventing frequent compressor cycling and lowering operating power expenses.
Q4: What payment methods are supported for overseas orders?
A4: Ruifujie supports TT and Western Union payment methods.
Q5: What standard trade terms and settlement currency apply to export shipments?
A5: Transactions are executed under FOB Shenzhen or EXW terms, settled in USD.
Commercial Air Conditioning Engineering Support
As an established supplier and manufacturer of commercial chilling equipment, Ruifujie delivers factory-direct wholesale pricing, complete system design guidance, and full OEM support for every AC screw compressor.
Send us your project parameters, required cooling capacity, operating voltage, or batch requirement today, and our engineering sales team will deliver a comprehensive proposal within 8 hours.
