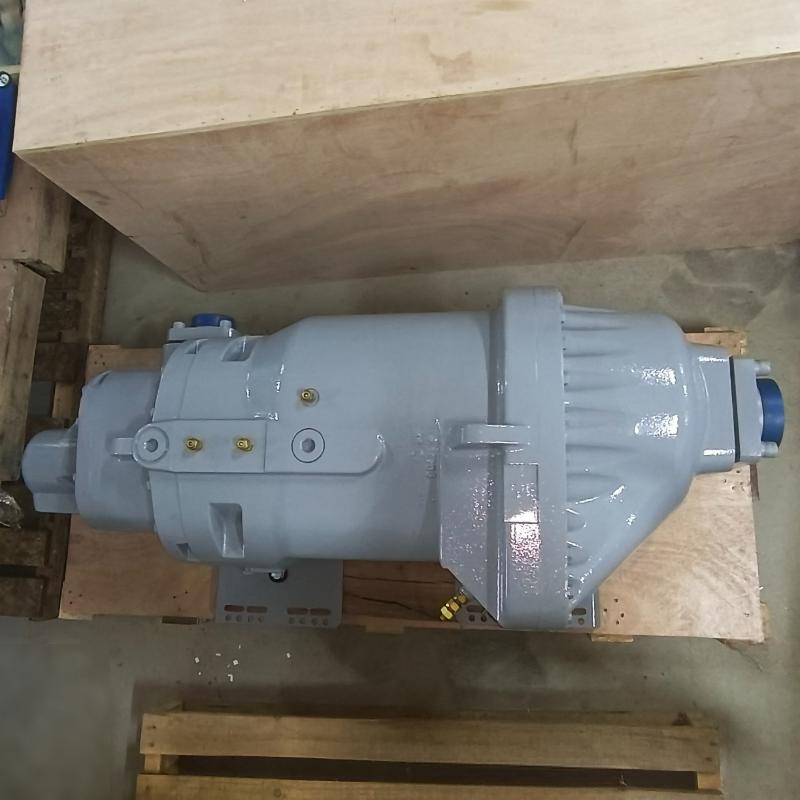

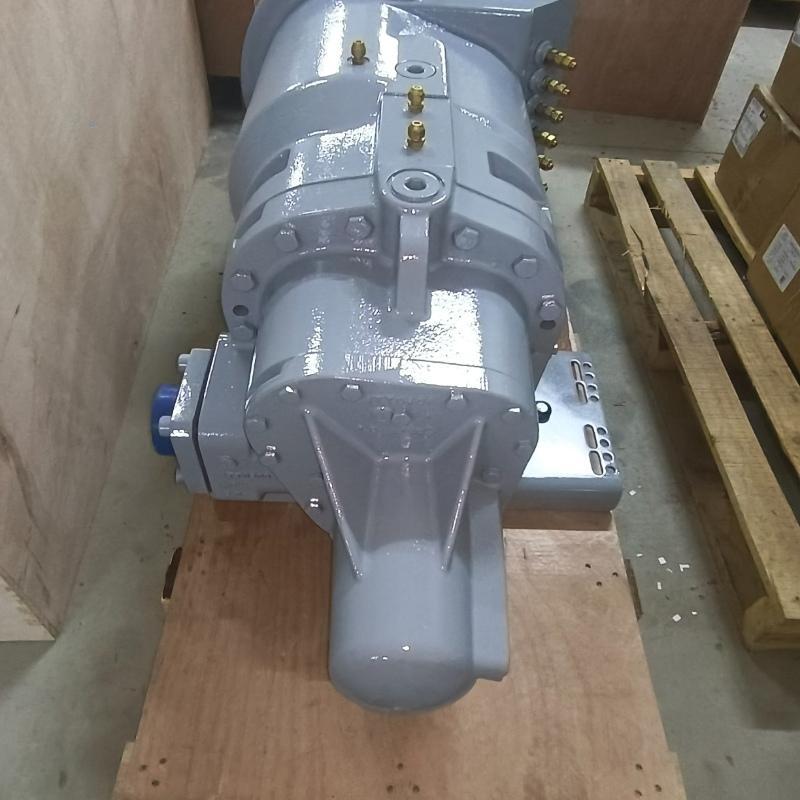

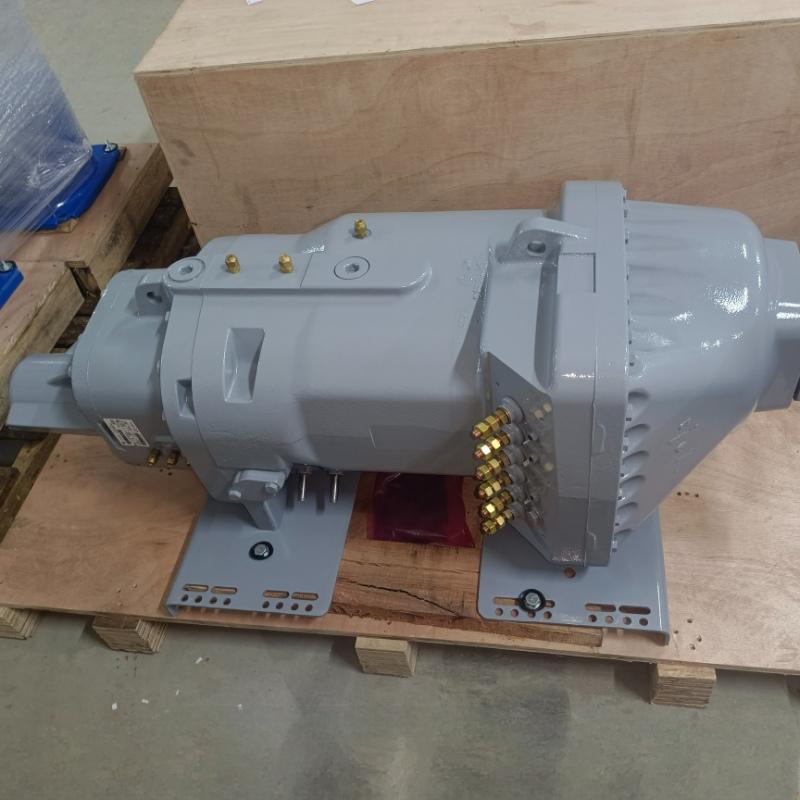

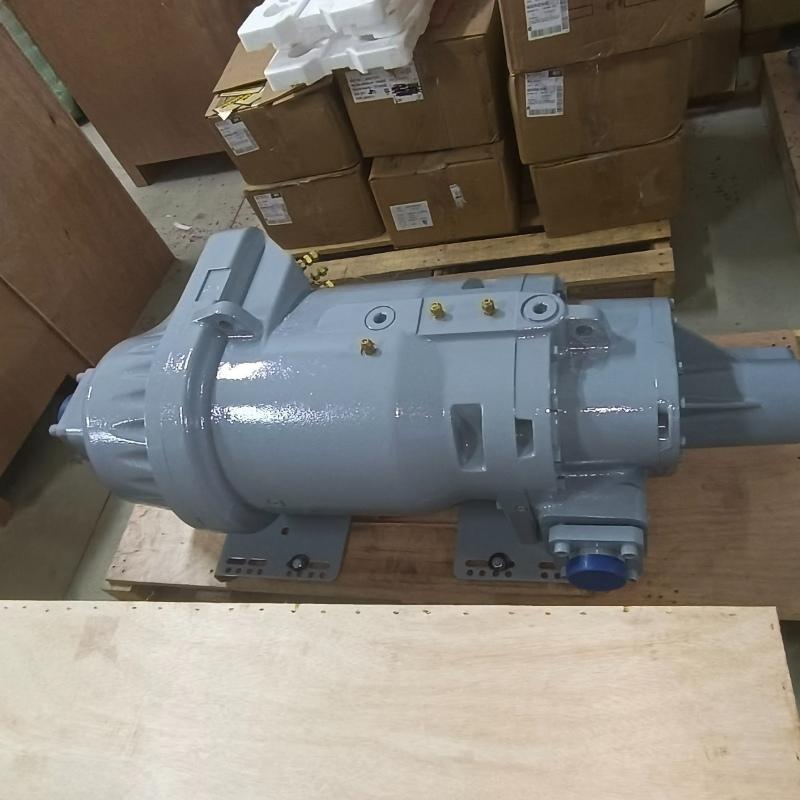

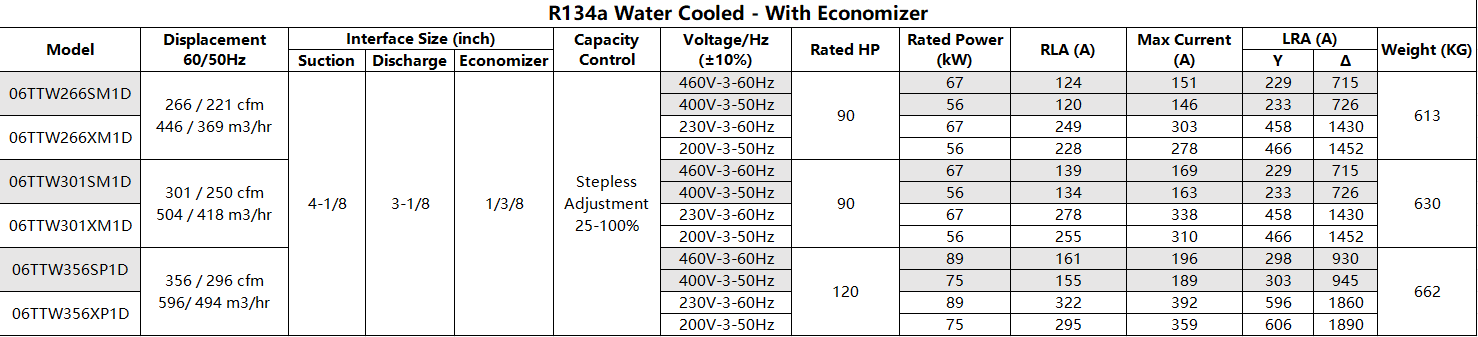

The 06TTW301 HVAC screw compressor is engineered specifically for commercial water-cooled chillers, large-scale HVAC air handling plants, and industrial water chilling systems. Delivering a nominal 90 HP output with a high volumetric displacement reaching up to 504 m³/hr (301 cfm at 60Hz), this compressor provides superior thermal transfer, fast system pull-down, and steady temperature management under heavy-duty continuous cooling operations.

• Stepless Output Modulation & Energy Savings: Features 25%-100% stepless capacity modulation with integrated liquid subcooling economizer for real-time load balancing, reduced utility consumption, and minimized electrical stress.
• Industrial Structural Sealing & Bearing Reliability: Built with high-precision rolling bearings, heat-resistant motor windings with internal thermal safeguards, and robust double-casing construction for zero-leakage security and long-term durability.

• Standard: Terminal box, oil system components, motor protection device, capacity control device, stop valve
• Optional: Paragon control module / Kriwan protection module, oil separator, flanges, economizer, oil cooler, high-temperature expansion valve

Drawing upon over 20 years of technical expertise in industrial cooling systems, Ruifujie operates as a modernized enterprise producing premium scroll, piston, rotary, semi-hermetic, and twin-screw compressors, alongside cold room evaporators, quick-freezing equipment, and industrial ice machinery. We offer full OEM/ODM engineering customization tailored to international project standards.

Ruifujie products are exported across worldwide markets, serving engineering clients in Russia, the United States, the United Kingdom, Saudi Arabia, the UAE, and other regions. With dedicated technical capabilities and outstanding cost efficiency, Ruifujie maintains strong, long-term strategic relationships with global commercial buyers.
