06TUA483 225HP High Output Refrigeration Screw Compressor for Rooftop Condensing Unit
06TUA483 225HP High Output Refrigeration Screw Compressor for Rooftop Condensing Unit
06TUA483 225HP High Output Refrigeration Screw Compressor for Rooftop Condensing Unit
06TUA483 225HP High Output Refrigeration Screw Compressor for Rooftop Condensing Unit
06TUA483 225HP High Output Refrigeration Screw Compressor for Rooftop Condensing Unit
06TUA483 225HP High Output Refrigeration Screw Compressor for Rooftop Condensing Unit
06TUA483 225HP High Output Refrigeration Screw Compressor for Rooftop Condensing Unit
06TUA483 225HP High Output Refrigeration Screw Compressor for Rooftop Condensing Unit
Specifications
Payment Terms :
Western Union,T/T
Model Number :
06TUA483
Refrigerant :
R134a/R22/R404A/R407C/R507/R448A/R449A
MOQ :
1
Delivery Time :
1 Month
Horse Power :
225HP
Price :
Discussed
Certification :
CE
Displacement 60/50Hz :
809 / 670 m3/hr
Supply Ability :
100000Pcs/Year
Brand Name :
Carlyle/Carrier
Compressor Type :
Air Cooled
Packaging Details :
WOODEN CASE
Place of Origin :
China
Application :
HVAC, Cooling Units, Cold Room
Description
06TUA483 225HP High Output Refrigeration Screw Compressor for Rooftop Condensing Unit
Product Overview

The 06TUA483 refrigeration screw compressor is an industrial-class cooling engine engineered for massive air-cooled chillers, central commercial HVAC plants, and large industrial process refrigeration systems operating on R134a.

Key Features
  • Ultra-High Volumetric Capacity: 225 HP rated output with displacement up to 809 m³/hr (483 cfm at 60Hz) for extreme thermal heat removal and rapid pull-down performance
  • Stepless Capacity Modulation: 25%-100% stepless capacity regulation with high-flow 1-5/8 inch economizer loop connection
  • Heavy-Duty Mechanical Build: Robust 5-inch suction and 4-1/8-inch discharge flange connections with SKF/NSK anti-friction rolling bearings
  • Advanced Protection: Heat-resistant motor windings with NTC thermal sensors and built-in check/safety valves
Standard & Optional Accessories
  • Standard: Terminal box, oil system components, motor protection device, capacity control device, stop valve
  • Optional: Paragon control module / Kriwan protection module, oil separator, flanges, economizer, oil cooler, high-temperature expansion valve
Product Image
06TUA483 225HP High Output Refrigeration Screw Compressor for Rooftop Condensing Unit

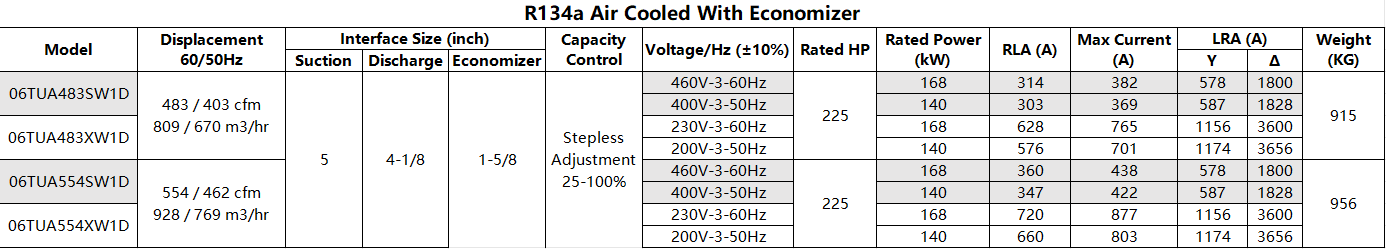

Technical Specifications
Model 06TUA483
Nominal Power 225HP
Refrigerant Type R134a
Displacement (60/50Hz) 483 / 403 cfm | 809 / 670 m3/hr
Capacity Control Stepless Adjustment 25-100%
Economizer Y
Voltage (V,A) 06TUA483SW1D: 460V-3-60Hz-314A, 400V-3-50Hz-303A
06TUA483XW1D: 230V-3-60Hz-628A, 200V-3-50Hz-576A
Weight 915kg
06TUA483 225HP High Output Refrigeration Screw Compressor for Rooftop Condensing Unit
Company Profile

Drawing upon over 20 years of technical expertise in industrial cooling systems, Coolstart operates as a modernized enterprise producing premium scroll, piston, rotary, semi-hermetic, and twin-screw compressors, alongside cold room evaporators, quick-freezing equipment, and industrial ice machinery.

We offer full OEM/ODM engineering customization tailored to international project standards. Coolstart products are exported across worldwide markets, serving engineering clients in Russia, the United States, the United Kingdom, Saudi Arabia, the UAE, and other regions.

06TUA483 225HP High Output Refrigeration Screw Compressor for Rooftop Condensing Unit
Frequently Asked Questions
What industrial installations are best suited for the 06TUA483 compressor?
The 06TUA483 is engineered for large air-cooled water chillers, central HVAC systems, and heavy-duty industrial process liquid chillers operating on R134a refrigerant.
How does the 1-5/8 inch economizer connection improve system cooling performance?
The large-capacity economizer port subcools liquid refrigerant before entering the main expansion valve, boosting total refrigeration capacity and COP without increasing motor electrical load.
What electrical grid configurations are supported by the 06TUA483 model?
It supports multi-voltage setups including 460V/230V at 60Hz and 400V/200V at 50Hz, providing broad compatibility across regional power grids.
Does Coolstart support customized branding and nameplates for export orders?
Coolstart supports full OEM customization, including multi-language metal nameplates and customized brand logos.
What trade delivery terms and transaction currencies apply to international orders?
Transactions are executed under FOB Shenzhen or EXW terms, settled in USD.
Industrial System Solution Support

As an established manufacturer and exporter of commercial cooling equipment, Coolstart provides factory-direct wholesale pricing, tailored technical selection guidance, and full OEM customization for every refrigeration screw compressor.

Submit your required cooling capacity, operating voltage, project parameters, or batch quantity today, and our sales engineering team will deliver a comprehensive proposal within 8 hours.
