GI CS Rack Shelf Roll Forming Machine Hydraulic Cutting Upright Roll Forming Machine
GI CS Rack Shelf Roll Forming Machine Hydraulic Cutting Upright Roll Forming Machine
Specifications
Brand Name :
TECHWELL
Model Number :
TW-Beam100
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Contact us
Payment Terms :
40% T/T in advance, 60% T/T before shipment
Supply Ability :
10sets
Delivery Time :
70-80 working days
Packaging Details :
Standard packing
Material :
GI or carbon steel
Material Thickness :
1.2-2.0mm
Profile size :
auto adjusted or Manual type
Forming Stations :
14 Stations
Work Speed :
0-15m/min
Cutting type :
Hydraulic cutting
Lock type :
by seam lock machine
Drive type :
Chain or gearbox drive
Description

Supermarket Shelf Roll Forming Machine Shelf Rack Upright Roll Forming Machine

Storage Racking Box Beam Production Line is for making the racking load beam section profiles.

Item Specification

Material

 Type Galvanized coils
Thickness 2.0-3.0mm
Yield strength 550Mpa
Roller material No. 45 forged Steel
Forming speed About 15-20m/min
Output speed 15m/min
Speed adjusting mode AC Frequency
Roller drive Decelerating motor + Chain drive
Cutting mode Hydraulic cutting
Cutter material Cr12 mould steel
Length measurement Encoder
Control mode Mitsubishi PLC
Operating mode Button + Mitsubishi Touch screen
Main motor power(kw) 11*2KW
Hydraulic station motor power(kw) 5.5 KW

Introduction of Rack Beam Roll Forming Machine

Racking system box beam roll forming machine is designed to produce various sizes of box beam sections as the client's profile drawing or requirements. The standard material thickness is 1.5-2.0mm, or upto 2.5mm.

And the Whole box beam roll former is made up with 3 Ton Uncoiler, feeding & leveling, main roll forming, hydraulic cutting, hydraulic station, plc control board, support tables and box beam interlock machine.

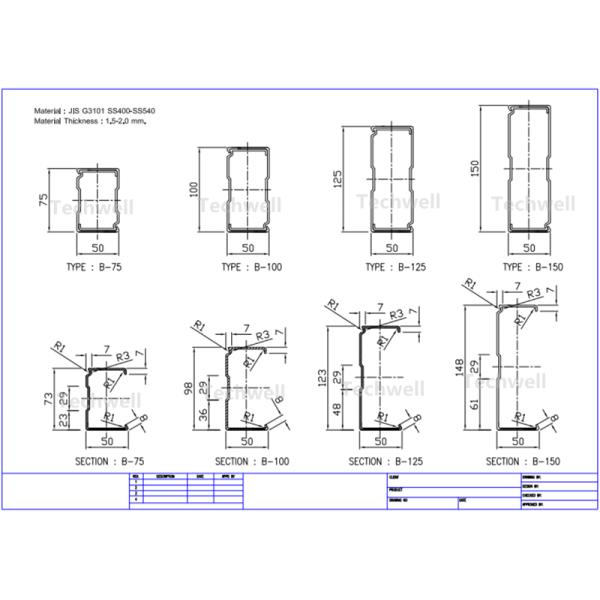

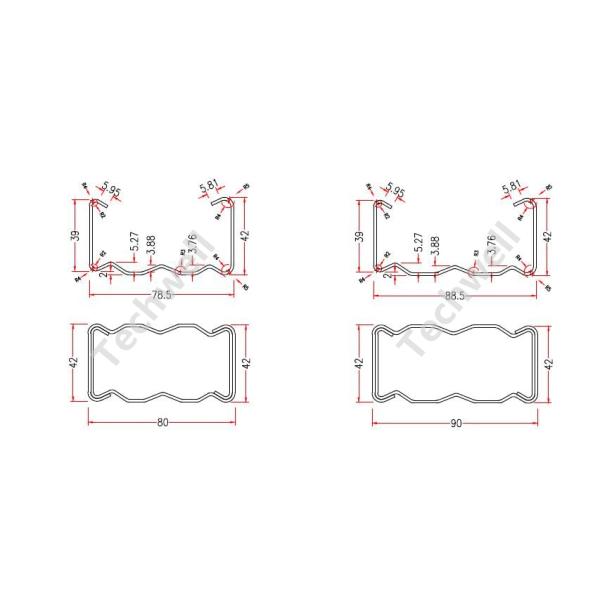

Box Beam Profiles

GI CS Rack Shelf Roll Forming Machine Hydraulic Cutting Upright Roll Forming Machine

GI CS Rack Shelf Roll Forming Machine Hydraulic Cutting Upright Roll Forming Machine

Main Specifications of Upright Rack Roll Forming Machine

Main Specifications of Box Beam Roll Forming Machine
No. Item Parameter Remark
1. Suitable Material Type JIS G3101 SS400-SS540
Thickness 1.5-2.0mm
Width Based on profile
2. Profile Size

C100 * 50mm

C125 * 50mm
3. Line Speed 0-20m/min. excluding cut time
3. Forming Station ≈ 14
5. Shaft Diameter Φ70mm Roll forming
Φ75mm Beam lock machine
6. Roller Material GCr15 bearing steel, HRC 58-62° and roller surface with hard chrome ≥ 0.05mm
7. Drive Type Chain Drive
8. Forming Structure Welded wall structure
9. Motor Power Main Machine ≈ 11KW + 3KW

Hydraulic Stations

 ≈ 5.5KW For cutting
10. Total Power ≈ 19.5KW
11. Electric Source AC380V, 3 Phase Or Customized
12. Main Machine color Blue Or Customized

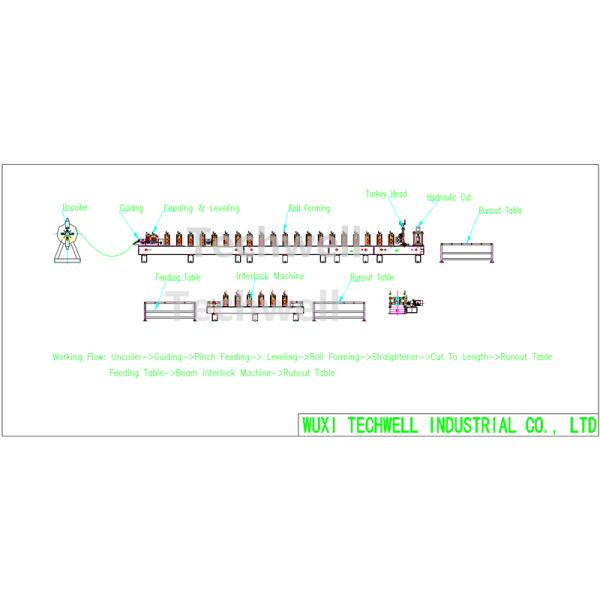

The Working Flow of Step Beam Forming Machine

Uncoiler --> Feeding & Leveling --> Roll Forming --> Cutting --> Seam lock Machine -->Run-out Tables

GI CS Rack Shelf Roll Forming Machine Hydraulic Cutting Upright Roll Forming Machine


Main Components of Upright Rack Production Line

Hydraulic Decoiler 1 Unit
Leveling 1 Unit
Main Roll Forming Machine 1 Unit
Hydraulic Cutting 1 Unit
Seamlock Machine 1 Unit
Electric Control System 1 Unit
Run out Table 1 Unit

More Upright Rack Forming Machine Pictures

GI CS Rack Shelf Roll Forming Machine Hydraulic Cutting Upright Roll Forming Machine

GI CS Rack Shelf Roll Forming Machine Hydraulic Cutting Upright Roll Forming Machine

GI CS Rack Shelf Roll Forming Machine Hydraulic Cutting Upright Roll Forming Machine
