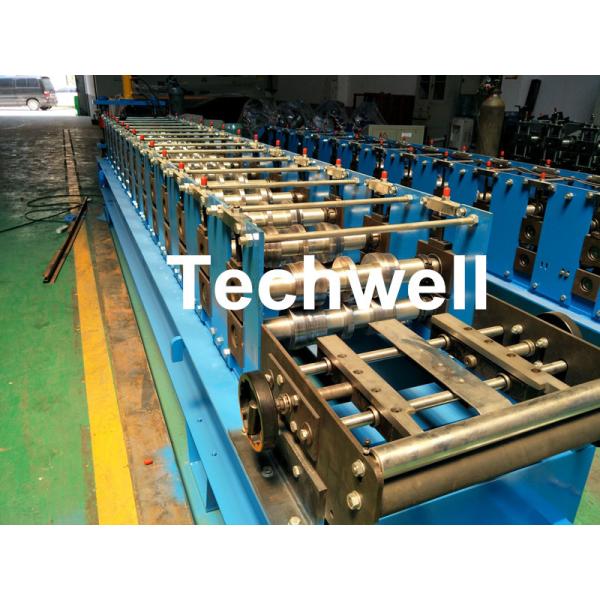

Gutter Roll Forming Machine With Welded Wall Plate Structure Forming Structure, Plc Frequency Control

Main Technical Specifications

1. Forming Mateial Thickness: 0.4-0.8mm

2. Forming Material Type: PPGI, Aluminum

3. Machine Frame: high grade steel welded and tempering treatment

4. Forming Structure: Welded wall plte structure

5. Forming Motor: 5.5KW

6. Shaft Material: 45# high grade steel tempering treatment (HB220-260)

7. Shaft Diameter: 65mm

8. Bearing: HRB bearing (Top Chinese brand)

9. Roller Material: 45# high grade steel, and roller surface with hard chrome ≥ 0.05mm

10. Forming Speed: About 0-15m/min ( excluding cutting time )

11. Forming Stations: About 16 stations

12. Cutting Type: Hydraulic cutting after roll forming, Burr-free cutting

13. When cutting, Machine stop

14. Cutting blade material: Cr12Mov, Quench treatment, HRC58-62

15. Hydraulic Station Power: 4KW

16. Hydraulic Pressure: 10Mpa

Working Flow Chart

Decoiler --- Pinch Feeding --- Main Roll Forming --- Hydraulic Cutting --- Support Table

Main Components

• Decoiler / Uncoiler ------------------------------------------------------------1 Unit
• Pinch Feeding -----------------------------------------------------------------1 Unit
• Main Roll Forming ------------------------------------------------------------1 Unit
• Hydraulic Cutting--------------------------------------------------------------1 Unit
• Hydraulic Station--------------------------------------------------------------1 Unit
• Electrical Control Board------------------------------------------------------1 Unit
• Run-out Table------------------------------------------------------------------1 Unit

Competitive Advantages

• High Quality
• Reliable
• Durable
• Reasonable Price
• Good after Service
• 1 Year Warranty
• More Than 10 Years Experience
