Specifications
Brand Name :
TECHWELL
Model Number :
TW-GM5
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1 Set
Price :
Contact Us
Payment Terms :
40% T/T in advance, 60% T/T before shipment
Supply Ability :
20 sets
Delivery Time :
60-70 working days
Packaging Details :
Standard packing
Forming Material Thickness :
0.3-0.8mm
Forming Material Type :
PPGI
Drive Type :
Chain Of Transmission
Cutting Tolerance :
+/-1.5mm
Cutting Type :
Hydraulic cutting
Cutting blade material :
Cr12Mov, Quench treatment, HRC58-62
Description

Customized Half Round Gutter Roll Forming Machine For Making Rainwater Gutter & Box Gutter

Main Technical Specifications

Coil Material Thickness 0.4-0.8mm
Coil Width Custom-made
Material PPGI, Aluminum
Decoiler / Uncoiler Decoiler Type Manual or Hydraulic or Auto
Coil Width Max.1250mm
I.D 508-610mm
O.D Max. 1500mm
Gutter Roll Forming Machine Forming Stations About 15 stations (depend on final profile)
Roller Material 45# high grade steel, and roller surface with hard chrome ≥ 0.05mm
Diameter of Shaft 65mm
Shaft Material 45# high grade steel tempering treatment (HB220-260)
Drive Type Chain of Transmission
Forming Speed 0-15m/min (excluding cutting time)
Main Power 5.5KW
Cutting Device Cutting Type Hydraulic cutting
Cutting Die Material Cr12Mov steel, HRC58-62
Cutting Power 3KW
Cutting Tolerance +/-1.5mm
Encoder OMRON Brand

Working Flow Chart

Decoiler --- Pinch Feeding --- Main Roll Forming --- Hydraulic Cutting --- Support Table

Main Components

  • Decoiler / Uncoiler ------------------------------------------------------------1 Unit
  • Pinch Feeding -----------------------------------------------------------------1 Unit
  • Main Roll Forming ------------------------------------------------------------1 Unit
  • Hydraulic Cutting--------------------------------------------------------------1 Unit
  • Hydraulic Station--------------------------------------------------------------1 Unit
  • Electrical Control Board------------------------------------------------------1 Unit
  • Run-out Table------------------------------------------------------------------1 Unit

Applications

Rainwater gutter, k gutter, box gutter , seamless gutter

PPGI Half Round Gutter Roll Forming Machine For Making Rainwater Gutter & Box Gutter

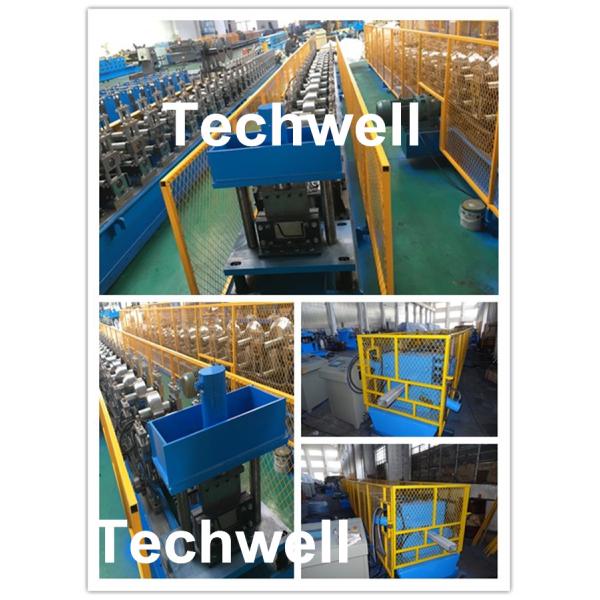

More Machine Pictures

PPGI Half Round Gutter Roll Forming Machine For Making Rainwater Gutter & Box Gutter
