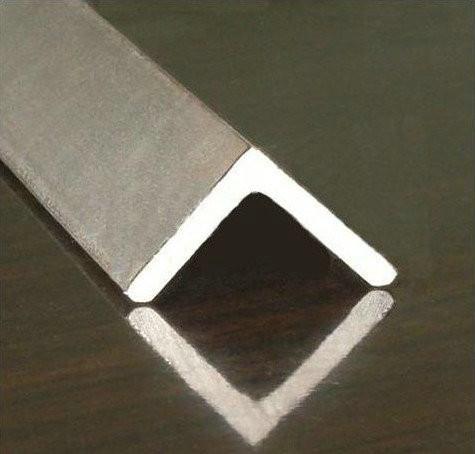

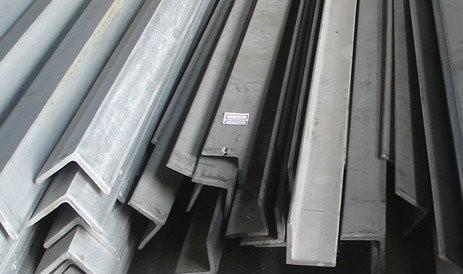

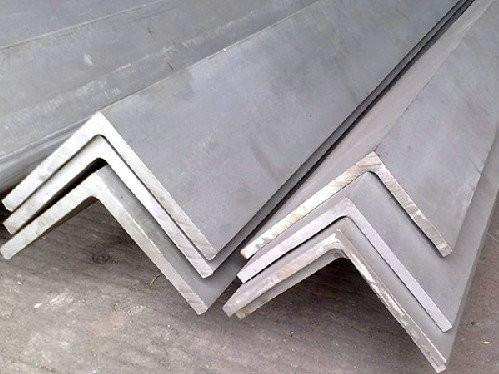

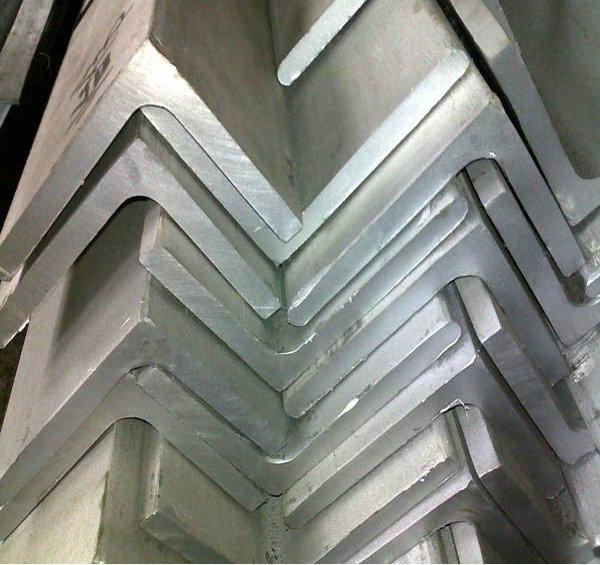

Equal and Unequal 304 Stainless Steel Angle Bar / Bars With Mill Finish For Architecture, Engineering Structure

Applications:

Architecture and engineering structure, such as the beam, Bridges, transmission tower, hoisting, ship, industrial furnace, container frame

Specifications:

The available Standard Size for the Hot Formed ( HRAP ) Angle Bar

(1) Type: Equal Angle Bar & Un-equal Angle Bar

(2) Steel Grade: 304

(3) Surface: Mill Finish (No.1 )

(4) Specification: ASTM A276

(5) Thickness : 3mm , 4mm , 5mm , 6mm , 8mm , 9mm & 10mm ( max. )

Or in Imperial Thickness: 1/8", 3/16" & 1/4"

(6) L-Arm Width : 25mm , 30mm , 40mm ( or 38mm ) , 50mm , 60mm , 65mm , 75mm & 100mm (max. )

Or in Imperial Sizes : 1" , 1-1/4" , 1-1/2", 2", 2-1/4" , 2-1/2" , 3" & 4"

(7) Length: 6000mm, 6096mm (20 ft. ) or other tailor-cut length.

(8) Example of the description for the normal sizes of the:

(a) Equal Angle Bars:

3mm x 25mm x 25mm x 6000mm

3mm x 30mm x 30mm x 6000mm

3mm x 40mm x 40mm x 6000mm

3mm x 50mm x 50mm x 6000mm

4mm x 25mm x 25mm x 6000mm

4mm x 30mm x 30mm x 6000mm

4mm x 40mm x 40mm x 6000mm

4mm x 50mm x 50mm x 6000mm

4mm x 60mm x 60mm x 6000mm

5mm x 25mm x 25mm x 6000mm

5mm x 30mm x 30mm x 6000mm

5mm x 40mm x 40mm x 6000mm

5mm x 50mm x 50mm x 6000mm

5mm x 60mm x 60mm x 6000mm

5mm x 65mm x 65mm x 6000mm

6mm x 30mm x 30mm x 6000mm

6mm x 40mm x 40mm x 6000mm

6mm x 50mm x 50mm x 6000mm

6mm x 60mm x 60mm x 6000mm

6mm x 65mm x 65mm x 6000mm

6mm x 75mm x 75mm x 6000mm

8mm x 60mm x 60mm x 6000mm

8mm x 65mm x 65mm x 6000mm

8mm x 75mm x 75mm x 6000mm

8mm x 100mm x 100mm x 6000mm

9mm x 65mm x 65mm x 6000mm

9mm x 75mm x 75mm x 6000mm

9mm x 100mm x 100mm x 6000mm

10mm x 75mm x 75mm x 6000mm

10mm x 100mm x 100mm x 6000mm

(a) Un-equal Angle Bars (Width different thickness):

3mm x 25mm x 50mm x 6000m

3mm x 30mm x 60mm x 6000m & etc.....

Competitive Advantage:

We absolutely assure that the good quality and best service and competitive price
