Specifications
Place of Origin :
CHINA
Brand Name :
STTOY
MOQ :
1 ton
Packaging Details :
Pallet(required by the customers' requirements)
Delivery Time :
20-60 working day
Payment Terms :
L/C,T/T,Paypal
Supply Ability :
100 tons
Model Number :
Alloy cold rolled steel strip
Description

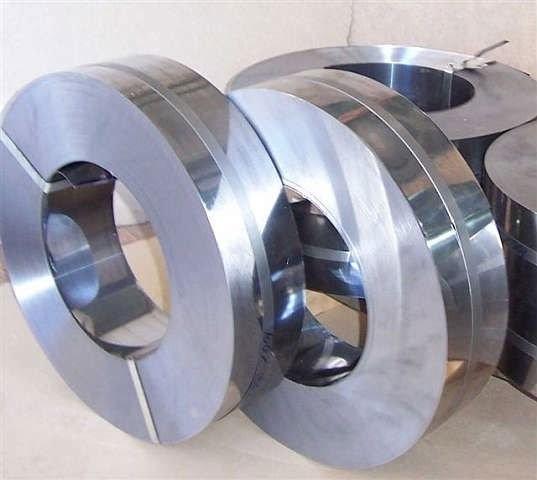

1J87, 1J88, 1J89, 1J90, 1J91 T 0.03—0.10mm W 180—200mm T 0.10—1.00mm W 10—200mm

Description:

Having a high initial permeability, high resistivity, high hardness, strength and wear resistance, the magnetic of stress is not sensitive.

Applications:

Tape recorder, video recorder, digital movie projector and computer tape drive head chip, micro motors, transformers, sensors, magnetic amplifiers and other high-frequency inductive element core.

Specifications:

Thickness:0.03—0.10mm Width:180—200mm

Thickness:0.10—1.00mm Width:10—200mm

Tolerance: +/-0.01mm.

Other specifications can be customized

Surface:2B

Hardness:240—280HV(As order’s requirements)

MOQ:1 tons

Port of Loading:Shanghai

Payment:T/T

Direct magnetic alloy strip, resistivity and microhardness

Alloy

Name

Thickness/㎜

DC magnetic properties

Resistivity

ρ/μΩ·cm

Microhardness

Hv

Initial permeability

μ1(mH/m)

Maximum permeability μm (mH / m)

Coercivity

Hc/A∑m-1

Saturation magnetic induction

Bs/T

≥

≤

≥

≥

1J87

0.02~0.04

30000(37.5)

100000(125)

2.0

0.5

75

190

＞0.04~0.09

35040(43.8)

120000(150)

1.2

0.5

75

190

＞0.09~0.29

40000(50)

200000(250)

0.8

0.5

75

190

＞0.29~0.50

35040(43.8)

180000(225)

1.2

0.5

75

190

＞0.50~1.00

35040(43.8)

150000(187.5)

1.6

0.5

75

190

1J88

0.02~0.04

30000(37.5)

100000(125)

2.0

0.55

70

180

＞0.04~0.09

35040(43.8)

120000(150)

1.6

0.55

70

180

＞0.09~0.29

40000(50)

150000(187.5)

1.2

0.55

70

180

＞0.29~1.00

30000(37.5)

100000(125)

2.0

0.55

70

180

1J89

0.02~0.04

15040(18.8)

70000(87.5)

2.4

0.45

85

200

＞0.04~0.09

20000(25)

90000(112.5)

1.6

0.45

85

200

＞0.09~0.29

25040(31.3)

100000(125)

1.2

0.45

85

200

＞0.29~1.00

20000(25)

80000(100)

1.6

0.45

85

200

1J90

0.02~0.04

30000(37.5)

100000(125)

2.0

0.45

85

250

＞0.04~0.09

35040(43.8)

150000(187.5)

1.6

0.45

85

250

＞0.09~0.29

40000(50)

180000(225)

0.8

0.45

85

250

＞0.29~1.00

35040(43.8)

150000(187.5)

1.2

0.45

85

250

1J91

0.02~0.04

5000(6.25)

40000(50)

3.2

0.45

80

300

＞0.04~0.09

8000(10)

60000(75)

2.0

0.45

80

300

＞0.09~0.29

10000(12.5)

80000(100)

1.6

0.45

80

300

＞0.29~1.00

8000(10)

60000(75)

2.0

0.45

80

300

Competitive Advantage:

First-class quality, complete specifications, reasonable price, timely delivery and rigorous specified according to customer requirements, suited materials for basic principles, to allow customers to buy satisfaction with assured.
