DIN 1.3401 Mn13 High Manganese Wear Resistant Steel Plates 6mm X120Mn12
DIN 1.3401 Mn13 High Manganese Wear Resistant Steel Plates 6mm X120Mn12
DIN 1.3401 Mn13 High Manganese Wear Resistant Steel Plates 6mm X120Mn12
DIN 1.3401 Mn13 High Manganese Wear Resistant Steel Plates 6mm X120Mn12
DIN 1.3401 Mn13 High Manganese Wear Resistant Steel Plates 6mm X120Mn12
DIN 1.3401 Mn13 High Manganese Wear Resistant Steel Plates 6mm X120Mn12
DIN 1.3401 Mn13 High Manganese Wear Resistant Steel Plates 6mm X120Mn12
DIN 1.3401 Mn13 High Manganese Wear Resistant Steel Plates 6mm X120Mn12
Specifications
Brand Name :
OEM/ODM
Model Number :
Mn13
Certification :
ISO
Place of Origin :
CHINA
MOQ :
3ton
Price :
negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
800 tons per month
Delivery Time :
5-8 work days and depend on the quantity
Packaging Details :
Standard exporting seaworthy packing or as customer demands
Grade :
High Manganese Mn13
Length :
4m-12m or as required
Width :
1m-3m or as required
Thickness :
3-15mm
Technique :
Hot Rolled
Use :
Mining machinery and equipment
Description
Mn13 High Manganese Alloy Steel Plate Wear Resistant Steel Plate
Product Description
Size
Thickness
3-3000mm
Width
0.6m-3m or as required
Length
4m-12m or as required
Standard
AISI,ASTM,GB,DIN,BS,JIS
Grade
Ar500/xar450 500 600/nm400 500 600
Inspection
X-ray inspection, manual ultrasopic inspection,surface inspection,hydraulic testing
Technique
Hot Rolled
Section Shape
Flat
Productivity
5000 Tons/month
Packing
covered with a layer of plastic film and cardboard , packed on the wooden pallets , bound with iron belt , loaded in the containers
Surface Treatment
Black Painted, PE Coated, Galvanized or Customized all available
Remarks
1.Payment Terms T/T, L/C,
2.Trade Term:FOB/CFR/CIF , discussible
3.Minimum Quantity of Order: 2 Tons
4.Delivery Time:7-15 days after receipt of deposit
Mechanical property
Grade
Tensile strength
(Mpa)
Elongation
(%)(min)
Hardness
(HBW)
-20℃ Impact
AKv/J (min)
NM360
≥1100
12
330-390
24
NM400
≥1200
10
370-430
24
NM450
≥1250
7
420-480
24
NM500
470(min)
NM550
530(min)
NM600
570(min)
Mechanical property
Grade
Yield strength (Mpa)
Hardness (HB)
Impact energy
400
900-1100
370-430
45J/-40℃
450
1100-1300
425-475
50 J/-40℃
500
1250-1400
470-540
37 J/-40℃
550
525-575
30 J/-40℃
600
550-640
Our company can produce low alloy high strength abrasion resistant steels of grade NM360, NM400, NM450, NM500, NM550 and NM600 which have high strength and good abrasion resistant properties, good toughness and weldability, excellent processing properties and formability. Good performances of our company’s plates have been positively proven in different climates, terrains and environments.
PACKAGE PER BUNDLE
1.Reinforcement of angle in steel wore rodcircles or according to customer's requirements.
2.Package in PVC material or according to customer's requirements
SHIPPING
1.Delivery: Within 7-30 days after the confirmation of the order
2.Transport cargo to port by truck and will covered on the road and also covered at port.
3.Shipping by bulk or container
Packaging
Standard seaworthy export packing, other types of packing can be customized as every requirement.
Shipping packaging
Bundled with firm steel straps, easy for loading and unloading.
Shipping time
5-7 work days after delivery
Shipping way
BY SEA
Shipping port
ShangHai

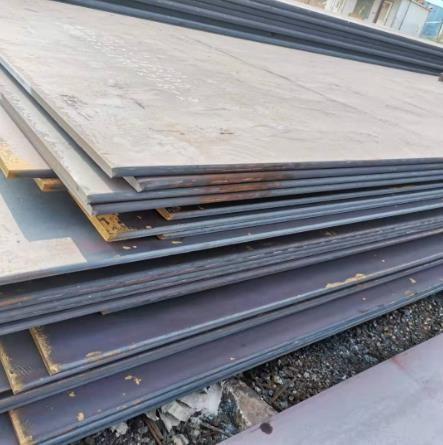

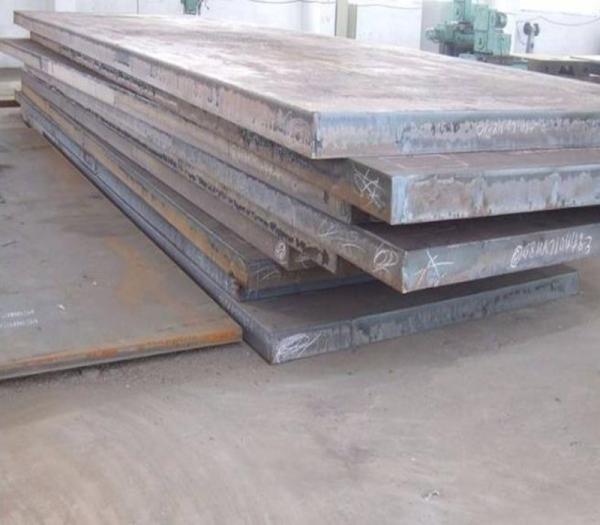

Product show
DIN 1.3401 Mn13 High Manganese Wear Resistant Steel Plates 6mm X120Mn12
If you have any question, please feel free to contact us any time.
