Silicone Cold Shrink Tube for Telecom & Fiber Optic Cables
Silicone Cold Shrink Tube for Telecom & Fiber Optic Cables
Specifications
Brand Name :
ZKCS
Model Number :
Customized
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
1000pcs
Price :
Negotiation
Payment Terms :
L/C,T/T
Supply Ability :
100000pcs/month
Delivery Time :
20-30days after receiving 40% deposit
Packaging Details :
50pcs or 100pcs/carton
Material :
Silicone
Color :
Black or grey
Length :
Customized
Name :
Cold Shrink Tube
Application :
Insulation Protection
Product name :
Rubber Cold Shrink Tube For Insulate Wire
Packing :
Carton
Free samples :
yes
Description

Product name:

Silicone Cold Shrink Tube for Telecom & Fiber Optic Cables


Description:
Equivalent 3M quality Insulation Cold Shrink Splice Sleeves are designed for single and multicore low voltage power cables. the silicone tube shrinks uniformly to form a tight, permanent seal. Its premium silicone material ensures stable performance against moisture, UV exposure, temperature changes, and environmental aging.


Features :
•Ideal solution for abandoning cables temporarily or permanently
• Provides environmental sealing and mechanical protection
• Heat and special tools not required
• Simple reliable installation


Applications

  • Outdoor power cable insulation

  • Telecom and fiber optic cable sealing

  • Cable joints, terminals, and connectors

  • Utility, infrastructure, and industrial installations

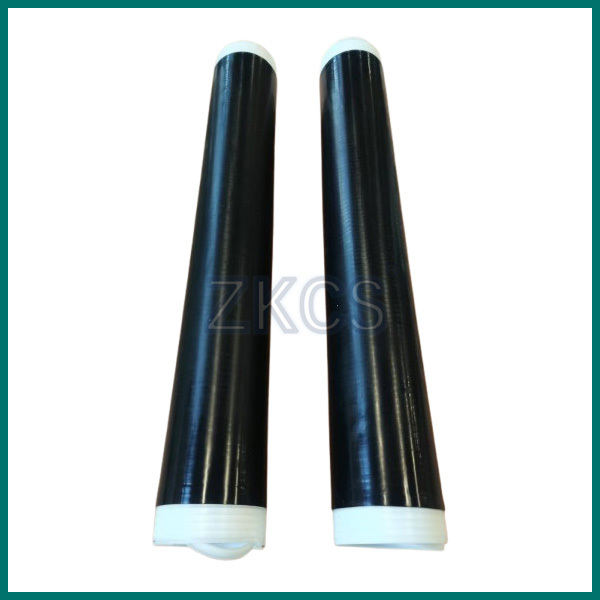

Picture for your reference.

Silicone Cold Shrink Tube for Telecom & Fiber Optic Cables


Silicone Cold Shrink Tube for Telecom & Fiber Optic Cables

Introduction:


Equivalent 3M quality Insulation Cold Shrink Splice Sleeve are a series of open-ended, tubular rubber sleeves, which are factory expanded and assembled onto a removable core. They are supplied for field installation in this pre stretched condition. The core is removed after the tube has been positioned for installation over an in-line connection terminal link allowing the tube to shrink and form a waterproof seal. The insulating tube is made of EPDM rubber which contains no chlorides or sulphurs.


Material technical parameters:
No Items Test method Unit Test standard Remarks
1 Hardness (Shore A) GB/T 531.1-2009 Shore A 43±5 　
2 Tensile strength GB/T 528-2009 Mpa 8±3 　
3 Break elongation GB/T 528-2009 % 800±200 　
4 Tear strength GB/T 529-2008 kN/mm 38±5 　
5 Volume resistivity GB/T 2439-2001 Ω•cm ≥1013 　
6 dielectric strength GB/T 1695-2005 MV/m ≥18 　
7 dielectric Constant(50Hz) GB/T 1693-2007 / ≤8 　
