Specifications
Brand Name :
ZKCS
Model Number :
ZK2023 Self-amalgamating EPR tape
Place of Origin :
CHINA
MOQ :
500pcs
Price :
customized
Payment Terms :
D/A,D/P,T/T
Supply Ability :
10000rolls
Delivery Time :
20-30days
Packaging Details :
carton packing
Description

Product Description

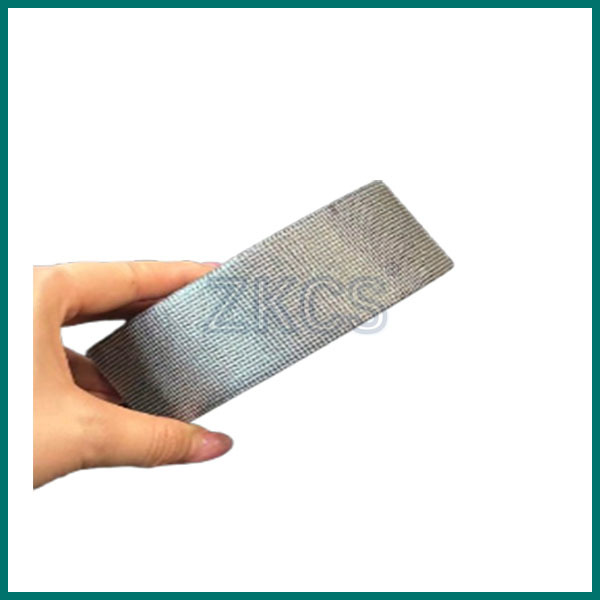

Our Heat & Cold Resistant Self Amalgamating EPR high voltage insulation tape is specially designed for 35kV and below cable low-stress intermediate joints and terminal sheath restoration, delivering perfect moisture-proof sealing and electrical connection protection. This Heat & Cold Resistant Self Amalgamating tape can also be used for binding and protective wrapping of DIY tools and electrical appliances. The biggest highlight of Heat & Cold Resistant Self Amalgamating tape is no heating, no open flame and no special tools required, realizing quick self-fusing and self-adhesive repair. The tape surface has no glue at all; after winding, the rubber layer fuses as a whole to form a tight sealed protective layer. In later maintenance, this Heat & Cold Resistant Self Amalgamating tape can be easily peeled off without leaving any residue on the wrapped object, keeping the surface clean and intact permanently.


Product Application

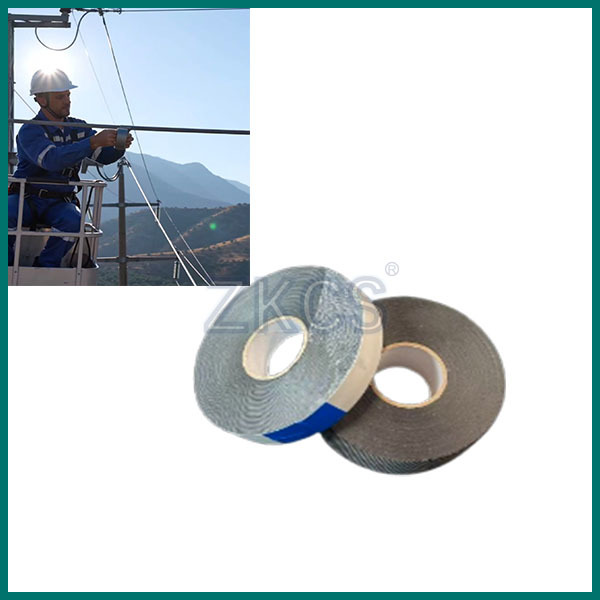

  • Widely applied for 35kV and below cable low-stress intermediate joint wrapping and terminal sheath recovery, using Heat & Cold Resistant Self Amalgamating performance to achieve long-term moisture-proof and sealing insulation.
  • Perfect for binding and safety protection of various DIY tools and electrical appliances, Heat & Cold Resistant Self Amalgamating property adapts to indoor, outdoor and variable temperature working environments.
  • Ideal for power engineering, overhead lines and underground cable insulation repair, Heat & Cold Resistant Self Amalgamating structure ensures stable sealing and high voltage insulation all year round.
  • Suitable for electrical connection sealing and daily circuit maintenance, the reliable performance of Heat & Cold Resistant Self Amalgamating tape meets industrial and household DIY repair demands.


Product Features


  • Made of premium EPR rubber material, it owns excellent Heat & Cold Resistant Self Amalgamating performance, stable insulation and sealing in extreme high and low temperature conditions.
  • This Heat & Cold Resistant Self Amalgamating tape needs no heating, no open flame and no special tools, easy installation for engineering construction and daily DIY use.
  • The surface of Heat & Cold Resistant Self Amalgamating tape is glue-free, it can fuse into one integrated protective layer automatically after winding, with outstanding waterproof, moisture-proof and airtight effect.
  • Convenient for later maintenance and disassembly, Heat & Cold Resistant Self Amalgamating tape peels off easily with zero residual glue, no damage to the original equipment surface.
  • Industrial high voltage grade, Heat & Cold Resistant Self Amalgamating design perfectly matches 35kV and below cable insulation, joint repair and sheath recovery scenarios.



Product Normal Specification:


Product Model No. Normal Specification


ZK2023

LINERED RUBBER (EPR) HIGH VOLTAGE SELF AMALGAMATING TAPES


1 19mm*0.76mm*9.15m
2 25.4mm*0.76mm*5m
3 38mm*0.76mm*9.15m
4 51mm*0.76mm*9.15m




EPR high voltage insulation tape technical parameters


Technical parameters
Performance Typical data Test method
Tensile strength 3.83MPa ASTM D 4325
Elongation at break 850% ASTM D 4325
dielectric strength 35.16KV/mm ASTM D 4325
volume resistivity 3.5×1015Ωcm ASTM D 4325
Heat aging(130℃168h) Pass ASTM D 4325
Ozone aging Pass ASTM D 4325
UV aging Pass ASTM D 4325
Xenon lamp Pass ISO 4892-2


FAQ

Q1: What makes Heat & Cold Resistant Self Amalgamating EPR high voltage insulation tape different from ordinary electrical tape?
A1: Heat & Cold Resistant Self Amalgamating tape adopts glue-free surface and self-fusing integral structure, no heating or tools needed, better waterproof sealing and high voltage insulation, and no residue after removal.

Q2: Can Heat & Cold Resistant Self Amalgamating tape work stably in outdoor high and low temperature environment?
A2: Yes. Heat & Cold Resistant Self Amalgamating EPR material has excellent temperature adaptability, keeping stable insulation and sealing performance in hot and cold weather, anti-aging and long service life.

Q3: Is Heat & Cold Resistant Self Amalgamating tape difficult to install for ordinary DIY users?
A3: Not at all. Heat & Cold Resistant Self Amalgamating tape requires no heating, no open flame and no professional tools, just simple winding to complete self-fusing sealing, very friendly for DIY and on-site quick repair.

Q4: Will Heat & Cold Resistant Self Amalgamating tape leave sticky residue after dismantling?
A4: No. The unique structure of Heat & Cold Resistant Self Amalgamating tape ensures easy peeling without any glue residue, well protecting the surface of cables and equipment.
