PLC Control PE PP Strip Spiral Winding Machine Digital Tension System Support Tube Production Equipment
PLC Control PE PP Strip Spiral Winding Machine Digital Tension System Support Tube Production Equipment
PLC Control PE PP Strip Spiral Winding Machine Digital Tension System Support Tube Production Equipment
PLC Control PE PP Strip Spiral Winding Machine Digital Tension System Support Tube Production Equipment
PLC Control PE PP Strip Spiral Winding Machine Digital Tension System Support Tube Production Equipment
PLC Control PE PP Strip Spiral Winding Machine Digital Tension System Support Tube Production Equipment
PLC Control PE PP Strip Spiral Winding Machine Digital Tension System Support Tube Production Equipment
PLC Control PE PP Strip Spiral Winding Machine Digital Tension System Support Tube Production Equipment
PLC Control PE PP Strip Spiral Winding Machine Digital Tension System Support Tube Production Equipment
PLC Control PE PP Strip Spiral Winding Machine Digital Tension System Support Tube Production Equipment
Specifications
Brand Name :
ZK
Control System :
PLC + Servo Motor
Heating Method :
Hot Air Welding
Packaging Details :
Export-grade plywood case with moisture-proof film
Tension Control :
Digital Tension System
Tube ID Range :
15-150 mm
Power Supply :
380V 50Hz 3 Phase
Payment Terms :
T/T,L/C,Western Union
Price :
USD 2000-6000 / Set
Place of Origin :
Guangdong, China
Model Number :
ZK-SV1200
Motor Power :
1.5 KW
Delivery Time :
15-25 working days
Certification :
CE, ISO 9001:2015
Supply Ability :
50 Sets per Month
MOQ :
1 Set
Winding Speed :
0-1400 RPM
Description

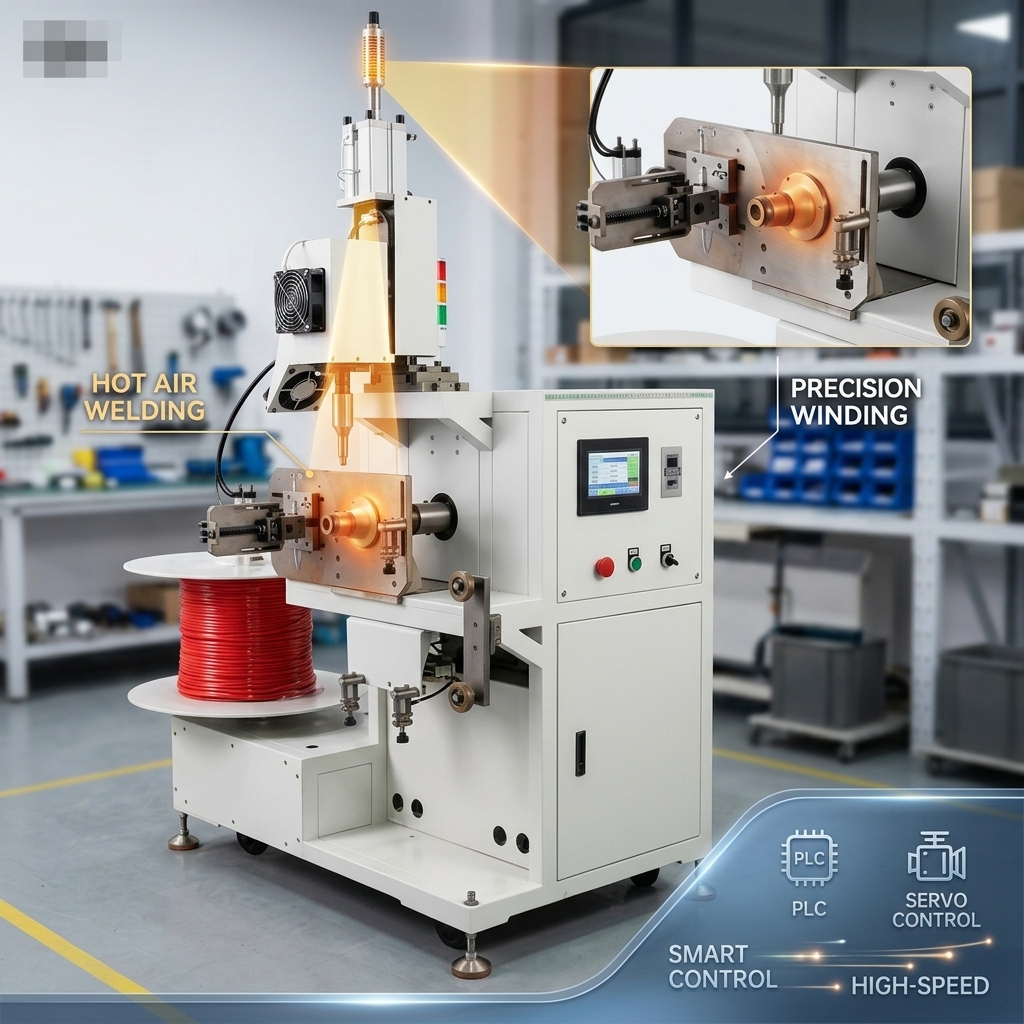

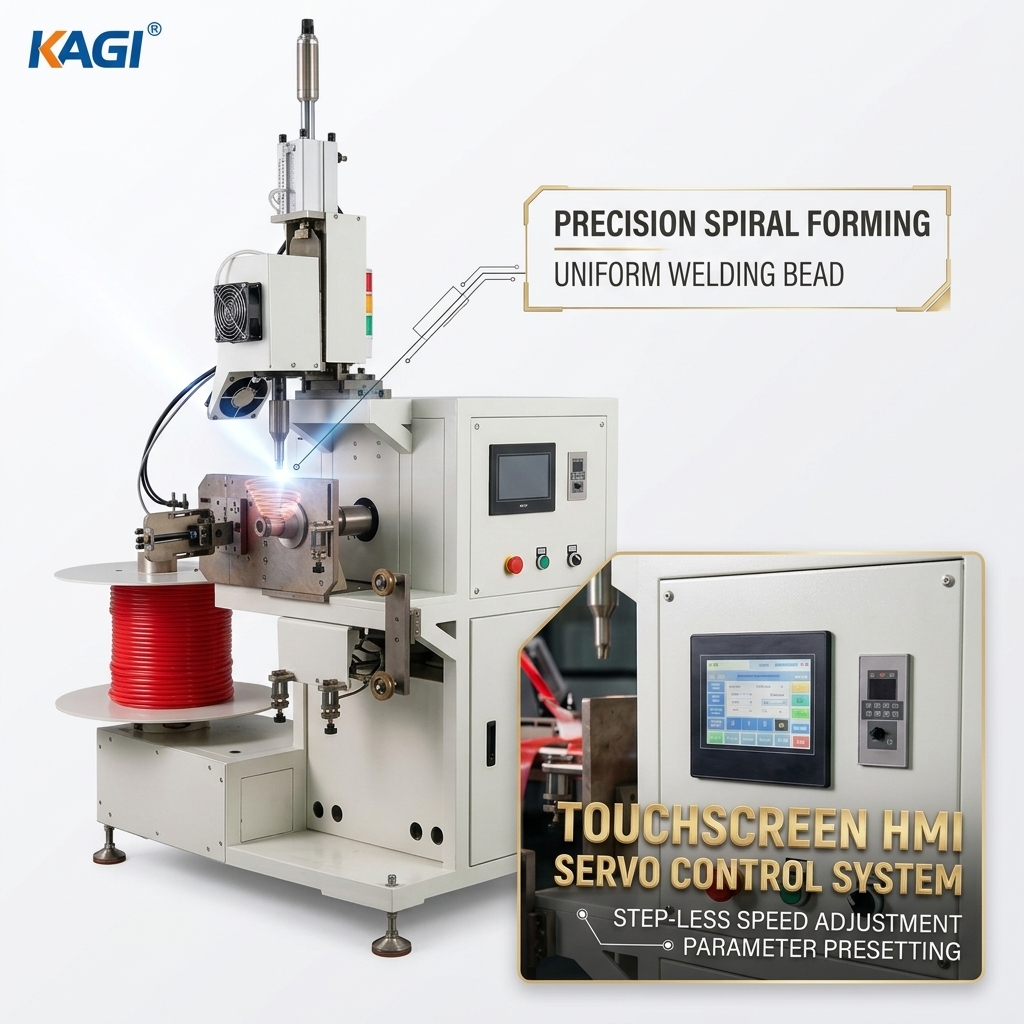

PLC Control PE PP Strip Spiral Winding Machine

This spiral winding machine adopts PLC and servo motor control with a digital tension system, specially designed for winding PE/PP strips into removable support tubes of different diameters and lengths. It delivers precise, stable and high-speed winding for cold shrink tube and cable accessory support tube production.

Applicable Scope

  • Winding PP/PE strips of different widths and thicknesses into spiral support tubes
  • Support tube production for cold shrink tubes, cable accessories and protective sleeves
  • Tube inner diameter from 15 mm to 150 mm

Technical Parameters

No Item Parameters
1 Model ZK-SV1200
2 Control System PLC + Servo Motor
3 Tension Control Digital Tension System
4 Motor Power 1.5 KW
5 Winding Speed 0-1400 RPM
6 Tube ID Range 15-150 mm
7 Heating Method Hot Air Welding
8 Strip Width 10-30 mm
9 Power Supply 380V 50Hz 3 Phase
10 Machine Size (LxWxH) 1600x1000x1450 mm

Key Features

  • Motor driven for precise, stepless speed regulation
  • Digital tension control ensures consistent strip winding quality
  • PLC based control with intuitive touch screen operation
  • Full closed fence for operator safety

FAQ

1. Who are we? We are professional in cold shrink industry with products exported worldwide.

2. Can the machine be customized? Yes, tube diameter and strip width can be modified as requested.
