Grey Silicone Cold Shrink Sleeve Insulation Protection For Antenna
Grey Silicone Cold Shrink Sleeve Insulation Protection For Antenna
Grey Silicone Cold Shrink Sleeve Insulation Protection For Antenna
Grey Silicone Cold Shrink Sleeve Insulation Protection For Antenna
Specifications
Brand Name :
ZKCS
Model Number :
Customized
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
1000pcs
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
100000pcs/month
Delivery Time :
20-30days after receiving 40% deposit
Packaging Details :
50pcs or 100pcs/carton
Material :
Silicone
Color :
Black or grey
Length :
Customized
Name :
Cold Shrink Tube
Application :
Insulation Protection
Product name :
Grey Cold Shrink Sleeve For Antenna
Packing :
Carton
Free samples :
yes
Description

Product name:

Good Product UV Ageing Easy To Apply Grey Cold Shrink Sleeve For Antenna

Description:

inCold shrink tubing is tubing that shrinks in normal temperatures, so there is no need to heat the tubing to shrink it. It’s supplied on a removable core in a pre-stretched shape. The inner core is removed during installation, allowing the tubing to narrow down around the cables, allowing a tight and compact installation. by an inn

s

  • Weather resistance, exposure resistance, ozone aging resistance, UV resistance, salt spray corrosion resistance.
  • Excellent tear strength, the opening will not continue to expand after cutting a small opening with a knife.
  • No heat or special tools required, and no hot melt glue or tape is required at the joints.
  • Standard color: black, other colors can be customized.

Applications
Primary electrical insulation for all solid dielectric (rubber and plastic) insulated wire and cable splices rated to 1000volts

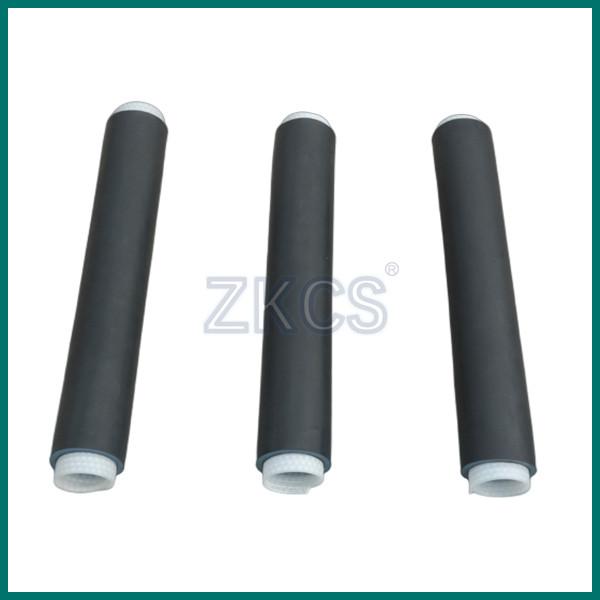

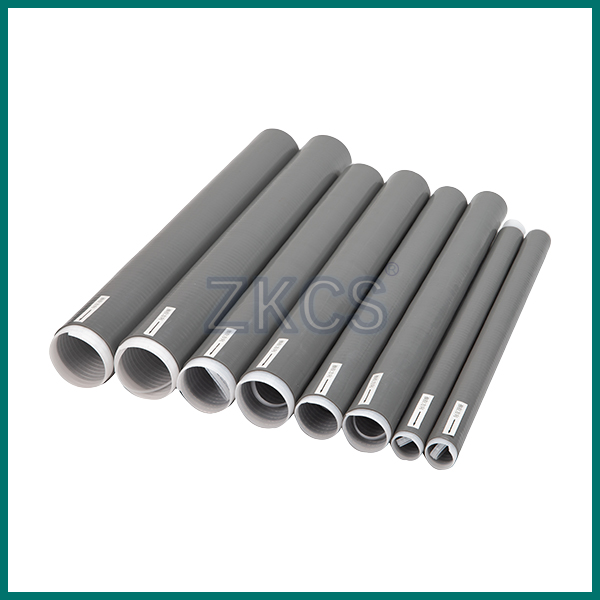

Picture for your reference.

Grey Silicone Cold Shrink Sleeve Insulation Protection For Antenna

Grey Silicone Cold Shrink Sleeve Insulation Protection For Antenna

Grey Silicone Cold Shrink Sleeve Insulation Protection For Antenna

Grey Silicone Cold Shrink Sleeve Insulation Protection For Antenna

Grey Silicone Cold Shrink Sleeve Insulation Protection For Antenna

Introduction:

EPDM Cold Shrink Tubes are a series of open-ended, tubular rubber sleeves, which are factory expanded and assembled onto a removable core. They are supplied for field installation in this pre stretched condition. The core is removed after the tube has been positioned for installation over an in-line connection terminal link allowing the tube to shrink and form a waterproof seal. The insulating tube is made of EPDM rubber which contains no chlorides or sulphurs.

Material technical parameters:
No Items Test method Unit Test standard Remarks
1 Hardness (Shore A) GB/T 531.1-2009 Shore A 43±5 　
2 Tensile strength GB/T 528-2009 Mpa 8±3 　
3 Break elongation GB/T 528-2009 % 800±200 　
4 Tear strength GB/T 529-2008 kN/mm 38±5 　
5 Volume resistivity GB/T 2439-2001 Ω•cm ≥1013 　
6 dielectric strength GB/T 1695-2005 MV/m ≥18 　
7 dielectric Constant(50Hz) GB/T 1693-2007 / ≤8 　
