Specifications
Brand Name :
QIANHE
Model Number :
PPKS
Certification :
ISO9001
Place of Origin :
Hangzhou China
MOQ :
1 set
Price :
US$580-US$1000
Payment Terms :
T/T, Western Union
Supply Ability :
1000 set per month
Delivery Time :
3-7work days
Packaging Details :
Carton with box/foam
Material :
artificial diamond
Application :
Enameled copper wire
Revolution :
5000rpm/min
Usage :
Stripping,Wire Stripping Cutting Chopping
Wire Range :
0.15-2.8mm
Dimension :
31*65mm
Description

Wire Stripper :

Wire Peeling & Stripping Blades (Precision Insulation Removal)

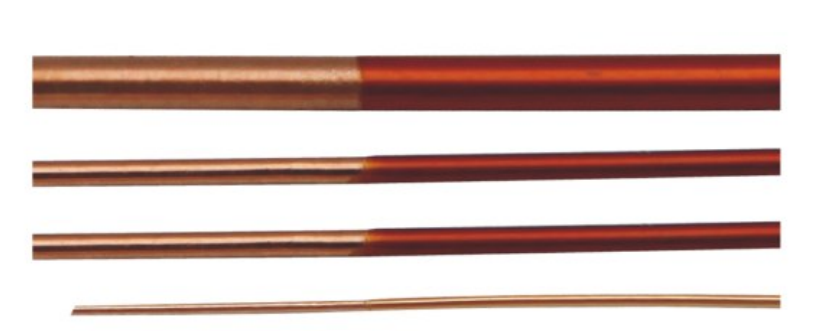

Before soldering, the enamel insulation must be removed cleanly.

NHE Peeling Blades are the perfect partner for your automatic stripping machines.

Material Options:

Tungsten Steel: Best for high-volume production and abrasive insulation wires.

High-Speed Steel (HSS): A cost-effective solution for standard wires.

Precision Grinding: The cutting edge is ground to a specific angle to peel the coating without reducing the wire diameter

(which would increase resistance and cause failure).

Configurations: We supply Flat Blades, Cone Blades, and Three-Claw Blades to fit various stripping mechanisms.

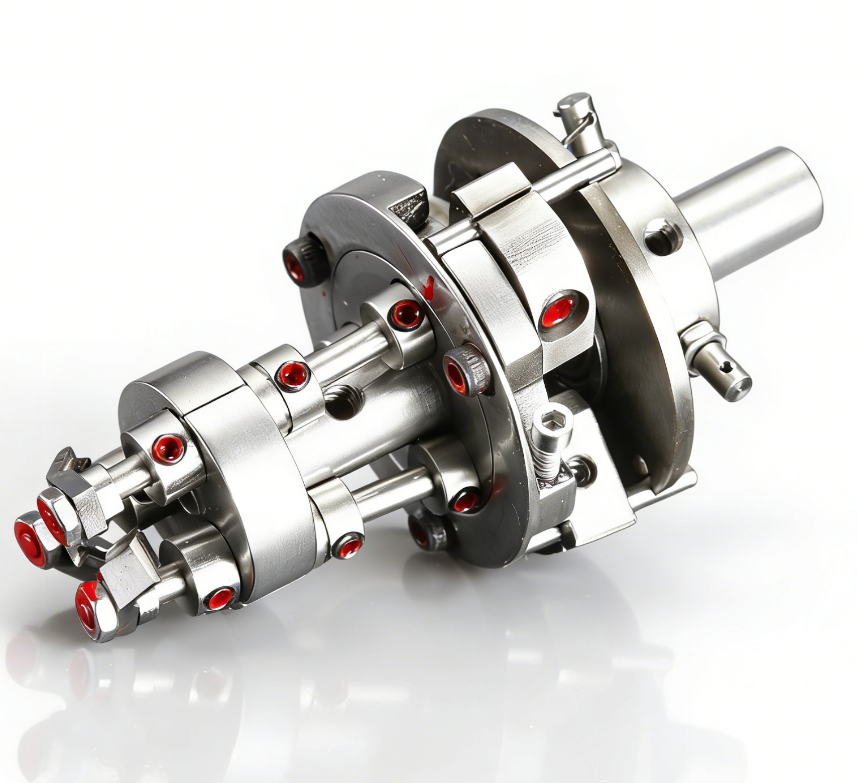

The Principle of the Wire Stripper

It works at low voltage (long durability ,electrically harmless ) and is connected to the CNC Automatic

Coil Winding Machine or other machine which can offer 5000rpm/min.Three pieces of hardened

diamond material blades of the stripper from a funnel ,these will close the wire from the largest to the

smallest diameter,

as the rotary speed increases the magnet wire is feed between the

blades to the required depth ,the start button is pushed and the

stripper slowly drawn away from the wire .

Specification:

Model Wire Diameter(mm) Installation Size Outer Dimension
PPKSS 0.15-0.7 Ф7*13.0 Ф31(max)*65
PPKS 0.7-1.2 Ф7*13.0 Ф31(max)*65
PPKM 1.2-1.8 Ф7*13.0 Ф31(max)*65
PPKL 1.8-2.8 Ф7*13.0 Ф31(max)*65

Picture Show :

Wire Peeling & Stripping Blades Wire Stripper 0.7-1.2mm for automatic Winding Machine

Wire Peeling & Stripping Blades Wire Stripper 0.7-1.2mm for automatic Winding Machine

Wire Peeling & Stripping Blades Wire Stripper 0.7-1.2mm for automatic Winding Machine

Q1: Can you customize peeling blades for special wire shapes?

A: Yes. If you are stripping flat wire or rectangular wire, please send us the wire drawing and insulation specs.

We can grind custom blade profiles to ensure clean stripping without conductor damage.
