Air Nipper Copper wire cutting 0.02-2.0mm C45+WIB-A Wear-resistant blade
Air Nipper Copper wire cutting 0.02-2.0mm C45+WIB-A Wear-resistant blade
Air Nipper Copper wire cutting 0.02-2.0mm C45+WIB-A Wear-resistant blade
Air Nipper Copper wire cutting 0.02-2.0mm C45+WIB-A Wear-resistant blade
Air Nipper Copper wire cutting 0.02-2.0mm C45+WIB-A Wear-resistant blade
Air Nipper Copper wire cutting 0.02-2.0mm C45+WIB-A Wear-resistant blade
Air Nipper Copper wire cutting 0.02-2.0mm C45+WIB-A Wear-resistant blade
Air Nipper Copper wire cutting 0.02-2.0mm C45+WIB-A Wear-resistant blade
Specifications
Brand Name :
QIANHE
Model Number :
C45+WIB-A
Place of Origin :
Hangzhou China
MOQ :
1 set
Price :
US$1-US$150 per set
Payment Terms :
T/T, Western Union
Supply Ability :
5000 set per month
Delivery Time :
3-7 working days
Packaging Details :
Carton /box with Foam
Materials :
Tungsten Steel
Color :
Silver
Working Pressure :
5kg/C㎡
Open mouth :
5.8-6.2mm
Cutting wire :
0.02-2.0mm
Body material :
Aluminum
Action :
Double Acting,Single Acting
Description

Pneumatic Air Nippers & Wire Cutting Blades

Maximize efficiency with NHE Pneumatic Air Nippers and Peeling Blades. Featuring imported Tungsten Steel tips, our nippers ensure

over 1,000,000 clean, burr-free cuts. Available in Square and Round bodies for seamless integration into automatic winding machines.

C45 +WIB-A
Compatible Cutter Head Model: WIB Series
Blade Opening (mm): 5.8~6.2
Air Hose Diameter (mm): φ6
Copper Wire Capacity: 0.02~2.0 mm
 Flexible Wire Capacity: 0.02~2.5 mm

Key Features

1. The cutter head is made of imported tungsten steel with a welded structure, featuring a sharp and wear-resistant cutting edge.

The shear service life of the middle cutting edge exceeds 1,000,000 cycles.

2. The handle base material is manufactured through a series of processes including high-quality alloy steel forging → heat treatment → precision machining → riveting.

3. The cylinder surface is subjected to hardening treatment for scratch resistance, while the piston and sealing ring are made of imported premium materials.

4. Operating Air Pressure: 0.5 Mpa

5. Customization of special dimensions is available according to customer requirements.

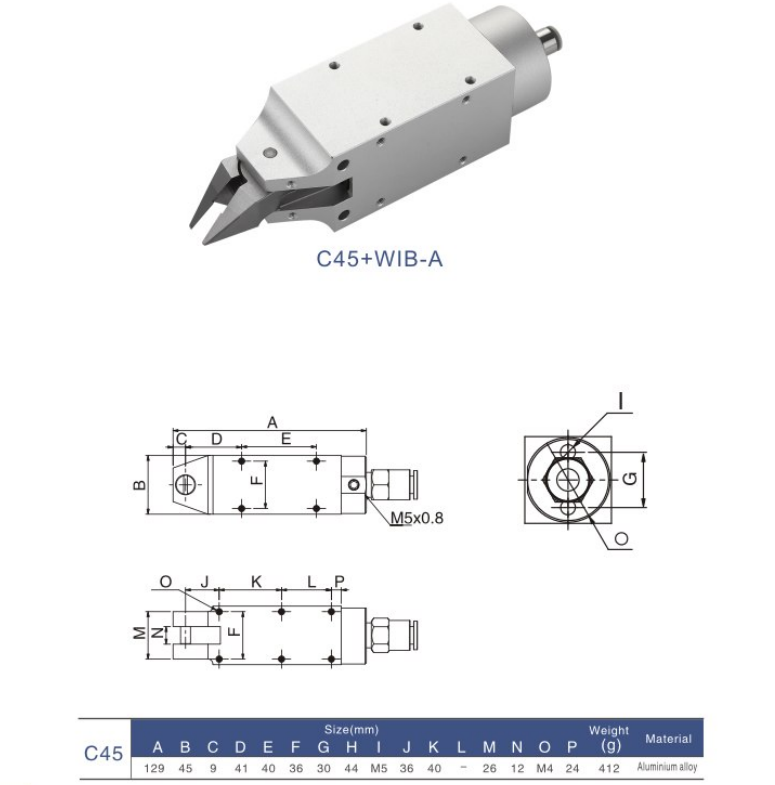

Specification Table

Air Nipper Copper wire cutting 0.02-2.0mm C45+WIB-A Wear-resistant blade

Air Nipper Copper wire cutting 0.02-2.0mm C45+WIB-A Wear-resistant blade

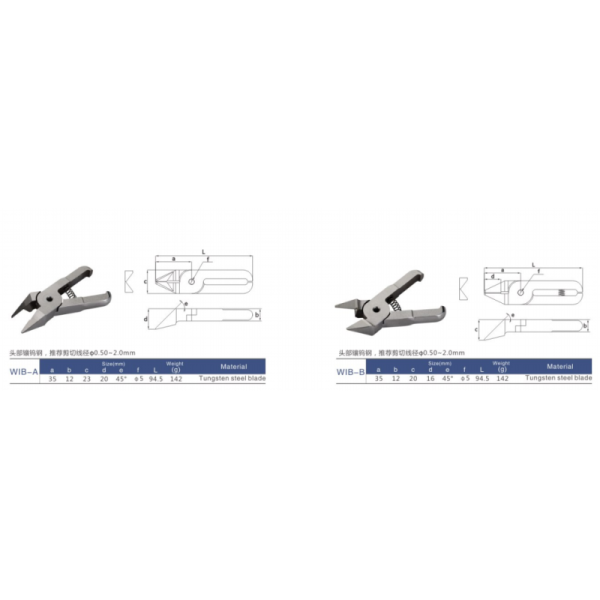

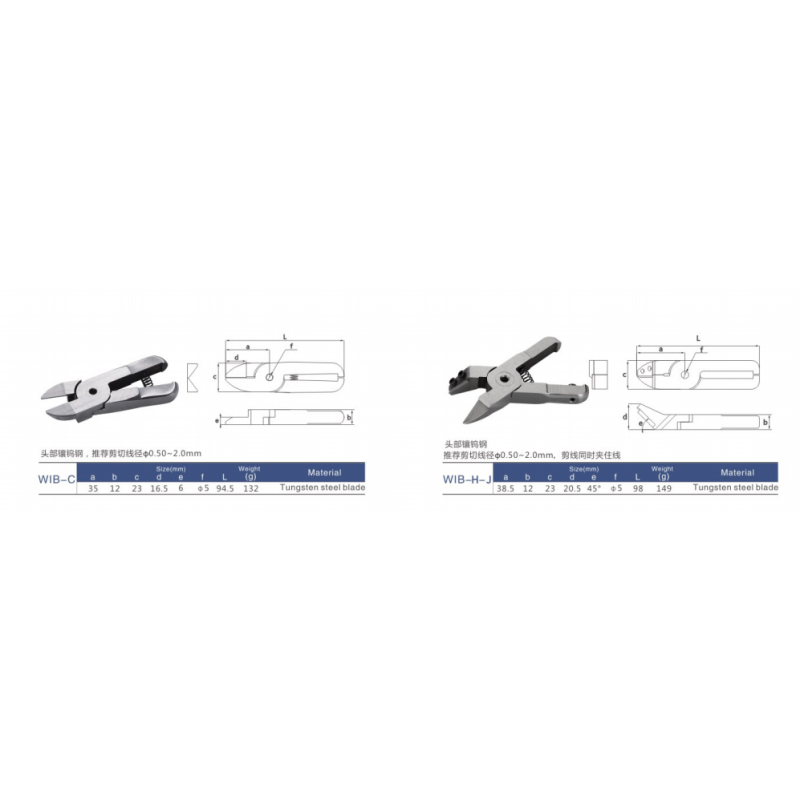

Optional Cutter Blade:

Air Nipper Copper wire cutting 0.02-2.0mm C45+WIB-A Wear-resistant blade
Air Nipper Copper wire cutting 0.02-2.0mm C45+WIB-A Wear-resistant blade

Frequently Asked Questions (FAQ)

Q1: How do I know when to replace the blades?

A: If you notice burrs on the cut wire end, or if the wire is being crushed instead of sliced, the blade edge is dull. For Tungsten Steel blades, we recommend replacement rather than re-sharpening to maintain precision geometry.

Q2: Are NHE nippers compatible with Nile or Vessel models?

A: Yes. Our bodies and blades follow international standard dimensions. For example, our C30 series is a direct replacement for standard square-body nippers from major Japanese brands, offering comparable performance at a more competitive price.
