Coil Winding Tungsten Carbide Nozzle for NITTOKU Machine 35mm length
Coil Winding Tungsten Carbide Nozzle for NITTOKU Machine 35mm length
Coil Winding Tungsten Carbide Nozzle for NITTOKU Machine 35mm length
Coil Winding Tungsten Carbide Nozzle for NITTOKU Machine 35mm length
Coil Winding Tungsten Carbide Nozzle for NITTOKU Machine 35mm length
Coil Winding Tungsten Carbide Nozzle for NITTOKU Machine 35mm length
Coil Winding Tungsten Carbide Nozzle for NITTOKU Machine 35mm length
Coil Winding Tungsten Carbide Nozzle for NITTOKU Machine 35mm length
Specifications
Brand Name :
QINAHE
Model Number :
TC1207-3014-3510
Place of Origin :
Hangzhou China
MOQ :
20 pcs
Price :
US$12.5-US$25
Payment Terms :
T/T, Western Union
Supply Ability :
5000 pcs per month
Delivery Time :
3-10 working days
Packaging Details :
Carton with box/foam
Materials :
Ceramic
Color :
White
Hardness :
1500HV
Flexural strength :
1700N/mm²
Description

Coil Winding Tungsten Carbide Nozzle for NITTOKU Machine 35mm length

Coil winding nozzle ,tungsten carbide nozzle ,Ruby Nozzle ,Ceramic Nozzle China
manufacturer.

This Nozzle made from NMparticles of zirconia material ,with hardness 1500HV, flexural

strength 1700N/mm² ,using professional equipment for precision grinding ,The curvature

radius of scientific computing for both the inlet and outlet ,ensure the safety smoothly for

the wire ,effective ensure the enameled wire paint from damage .

Specification and size list :

Part.No. Model Specifications(mm)
ФD ФD1 Фd1 Фd2 L1 L
1 TC1003-3008-3006 3 0.8 0.3 1.0 6 30
2 TC1003-3010-3510 3 1.0 0.3 1.0 10 35
3 TC1005-3010-3008 3 1.0 0.5 1.0 8 30
4 TC1005-3010-3510 3 1.0 0.5 1.0 10 35
5 TC1207-3014-3008 3 1.4 0.7 1.2 8 30
6 TC1210-3020-3010 3 2.0 1.0 1.2 10 30



Size Drawings:
Coil Winding Tungsten Carbide Nozzle for NITTOKU Machine 35mm length

Example :TC0303-3010-3008

TC (Ceramic Tungsten Alloy )
d2 =0.3 mm : Inner bore
d1 =0.3 mm : Outlet bore
D =3.0 mm : Diameter
D1 =1.0 mm : Diameter
L =30 mm : The total length
L1 =8.0 mm : Length

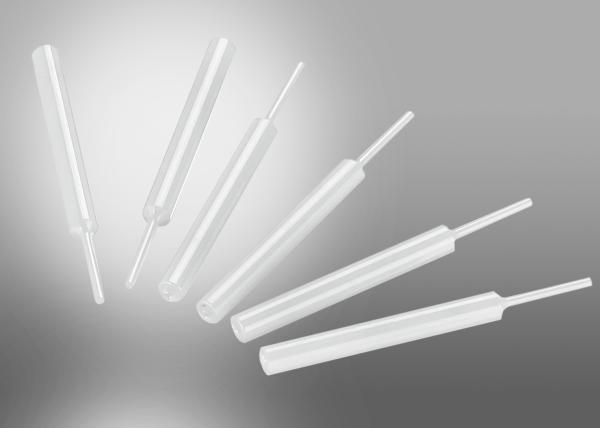

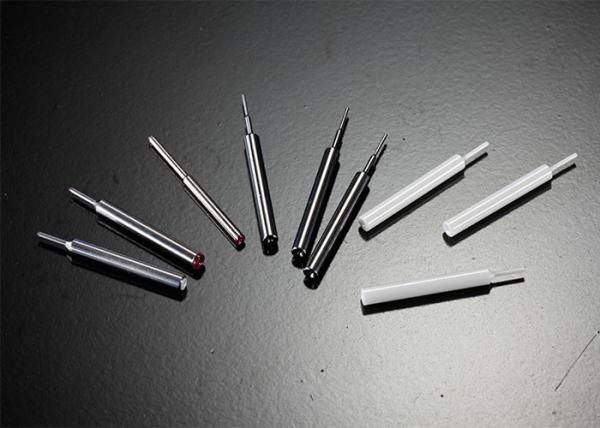

Pictures Show :

Coil Winding Tungsten Carbide Nozzle for NITTOKU Machine 35mm length
Nozzle inner bore

Coil Winding Tungsten Carbide Nozzle for NITTOKU Machine 35mm length
