High Precision Coil Winding Tensioner Servo Tension Controller 200W
High Precision Coil Winding Tensioner Servo Tension Controller 200W
High Precision Coil Winding Tensioner Servo Tension Controller 200W
High Precision Coil Winding Tensioner Servo Tension Controller 200W
Specifications
Brand Name :
QIANHE
Model Number :
ST800-18
Place of Origin :
Hangzhou China
MOQ :
1 set
Price :
US$750-US$2000per set
Payment Terms :
T/T, Western Union ,Paypal
Supply Ability :
500 set per month
Delivery Time :
3-15 working days
Packaging Details :
Carton with foam
Voltage :
DC36-48V
Power :
200W
Input Air pressure :
5kg/cm ²
Mounting hole :
Ф 16mm
Weight :
2.5kg
Product size :
310*170*85(mm)
Color :
White
Wire Speed :
18m/s
Description

High Precision Coil Winding Tensioner Servo Tension Controller 200W

Servo tensioner isdifferent from the traditional passive-line system and it change to take the initiative to send lines from the motor, by replacing the spring tension to change its value,

The linear speed of standard type is 5m/s, and it can be customized that according to your special requirements.

this product comes with tension feedback stabilization system that can automatically tension stable equilibrium

servo tensioner
1.Simple and easy adjustment
2.Stable and consistence tension control
3.Non wire break

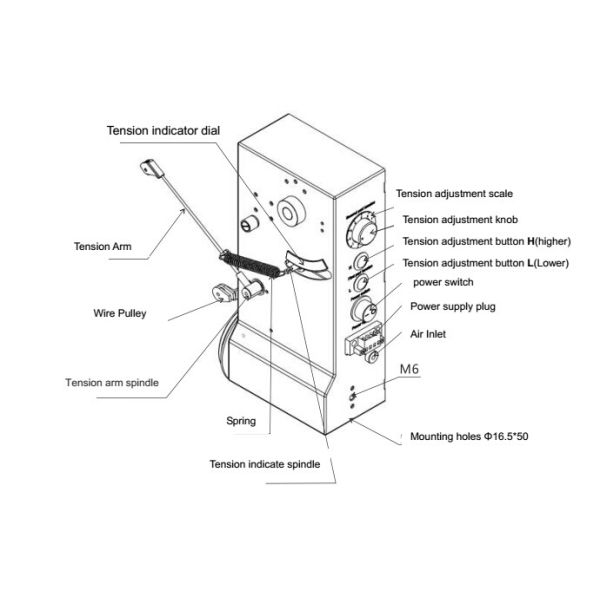

Structure for Servo tensioner

High Precision Coil Winding Tensioner Servo Tension Controller 200W

High Precision Coil Winding Tensioner Servo Tension Controller 200W

Specification :

Part.No. Product Model Maximum wire speed Tension Stage Tension Scope Applied wire diameter Tension Rod
(g) (mm)
1 ST600D-18 18m/s one stage 3-600 0.02-0.3

TR-25#-200

TR-26#-120

TR-27#-150
2 ST800-18 18m/s two stage 3-800 0.02-0.4
3 ST2000-9 9m/s two stage 300-2000 0.2-0.8 TR-28#-150

High Precision Coil Winding Tensioner Servo Tension Controller 200W
