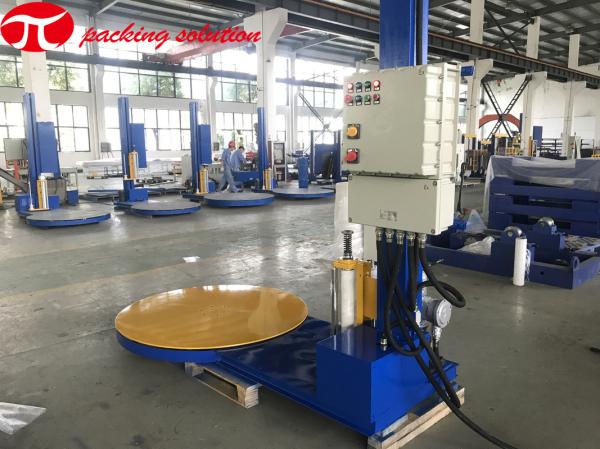

Automatic Turntable Pallet Wrapper JL2100-E With Explosion-Proof Device 1200mm Wider Film Carriage
Automatic Turntable Pallet Wrapper JL2100-E With Explosion-Proof Device 1200mm Wider Film Carriage
Automatic Turntable Pallet Wrapper JL2100-E With Explosion-Proof Device 1200mm Wider Film Carriage
Automatic Turntable Pallet Wrapper JL2100-E With Explosion-Proof Device 1200mm Wider Film Carriage
Specifications
Brand Name :
jlpack
Model Number :
JL2100-C
Certification :
ISO9001，CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
200 sets/Year
Delivery Time :
Stand-alone 1 week ,the packing line 150days
Packaging Details :
Wooden case /standard container
Type :
Wrapping machine
Voltage :
380V/50HZ
Application :
Food, Chemical, Commodity, Medical, Beverage
Packaging material :
Stretch film
Color :
Standard Blue
Turntable diameter :
1500mm
Turntable height :
110mm
Max load weight :
1500KG
Max load height :
2100mm
Warranty :
1 Year
Description

Automatic Turntable Pallet Wrapper JL2100-E With explosion-proof device 1200mm Wider Film Carriage

MACHINE APPLICATION:

The pallet wrapping machine can be widely used in various industries to pack the goods on a pallet with LLDPE stretch film.

It can make the goods stable, tidy and convenient for transportation; moreover. it has waterproof and dust proof effects.

It can also greatly lessen the labor density and improve work efficiency, so it is perfect packing equipment for the modern enterprise.

TECHNICAL PARAMETERS:

Item data JL2100- E(auto)
Working mode Auto
Turntable motor 0.40KW
Up-down motor 0.37KW
Turntable speed 11r/min(adjustable)
Film carriage speed 2.9m/min
Turntable diameter 1500mm
Turntable height 110mm
Tension control Manual
Height control Sensor control
Turntable startstop mode Soft start & Soft stop
Max load weight 1500KG
Max load height 2100mm
Wrapping material

Stretch film

ID76mm,width:500mm
Power voltage AC 380V/50HZ
Gross weight About 800kg
Volume About 4cbm

Note: the datas are only for reference, the machine can be custom designed according to specific object size.

MAIN PARAMETERS:

  1. PLC is adopted for electrical control.
  2. Can set special wrapping position reinforcement at random, can reset automatically.
  3. Automatic working mode. Can also change to manual mode.
  4. Indicator alarms automatically.
  5. Photo electric for pallet height detecting
  6. Simple design, easy for operation and maintenance.
  7. Manual operation, flexible& economical.
  8. Can start,stop,reset freely.
  9. Can set packing position reinforcement at random.

Option:
Pre-stretch & width film carriage
Top-platen(one set need)
Packing height: 1500mm
Turntable diameter: 1650mm, 2000mm
Turntable capacity: 2000kg

Automatic Turntable Pallet Wrapper JL2100-E With Explosion-Proof Device 1200mm Wider Film Carriage
