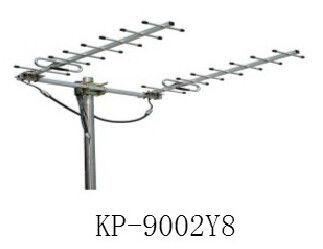

2 Rows 8 Elements Outdoor Wireless Antenna External Wireless Antenna 14.5dBi
2 Rows 8 Elements Outdoor Wireless Antenna External Wireless Antenna 14.5dBi
Specifications
Brand Name :
Ding Shen
Model Number :
DS-9002Y8
Place of Origin :
china
MOQ :
1 set
Price :
Negotiaiton
Payment Terms :
T/T
Supply Ability :
3,000pcs per month
Delivery Time :
3-7 days
Packaging Details :
3,000pcs per month
Gain: :
14.5dBi
Frequency Range: :
806~960Mhz
Bandwidth: :
154Mhz
Weight: :
1.5kg
Connector: :
N Or Customized
Element: :
8 Elements
Description

2 Rows 8 Elements external wireless antenna 14.5dBi long range

Feature:

  1. High Gain Antenna for 806~960Mhz wireless Audio Video transmitter/receiver.
  2. This directional YAGI antenna has a 3 meters extension long cable, it's good for outdoor use.
  3. Frequency Range: 806~960Mhz
  4. Element: 13 elements
  5. How to use: Directly connect the Beamed Ant to transmitter or receiver.

Specifications:

Frequency Range 806~960Mhz
Bandwidth 154MHz
Gain 14.5dBi
Horizontal Beamwidth 18°
Vertical Beamwidth 32°
F/B ratio-dB 18
VSWR ≤1.5
Polarization Vertical
Max Power 100W
Nominal Impedance 50Ω
Connector N or customized
Antenna Dimension 0.8m
Weight 1.5kg
Work Temperature -30°~ 60°
Rated Wind Velocity 60m/s
Element 13 elements

Antenna Erection

1 Fix the wave director and the oscillator in a counterpoint ( please take notice that the drain hole of oscillator should be downward).

2 Erect the antennas to the pole with clamp according to polarization required.

3 Connect the RF cables well, and wrap up the connector with waterproof adhesive tape, and do not let the cable flutter in the wind.

4 Make a shield for protection the water back into the home before RF cables were acrossed indoor.
