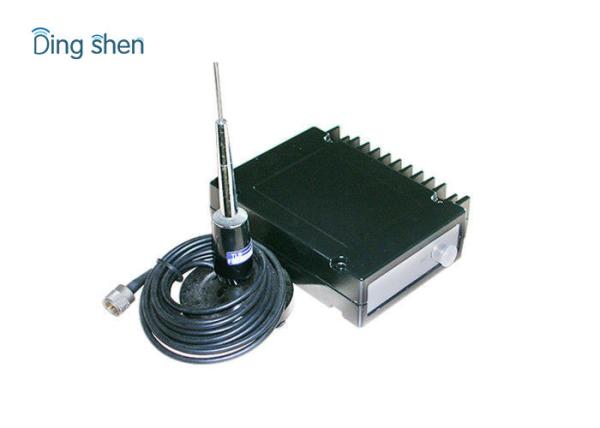

High Power 30W Wireless Data Radio FSK Modulation Long Distance RS232
High Power 30W Wireless Data Radio FSK Modulation Long Distance RS232
Specifications
Brand Name :
Ding Shen
Model Number :
DS-RM30W
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
1000PCS per month
Delivery Time :
3-7 days
Packaging Details :
export standard packing
Transmission Rate: :
1200bps, 2400bps, 4800bps, 9600bps
Interface: :
TTL/ RS232 / RS485
Modulation:: :
FSK / MSK
Frequency Range: :
150MHz, 230MHz, 350MHz, 450MHz
Transmit Power:: :
30W
Transmission Distance:: :
Omni 30km In City
Description

High Power 30W Wireless Data Radio FSK Modulation Long Distance RS232 / TTL

Features:


◆ Transmission rate: 1200bps, 2400bps, 4800bps, 9600bps
◆ Voice or data compatible with transparent signal transmission
◆ frequency range: 150MHz, 230MHz, 350MHz, 450MHz
◆ can be set to 256 frequency points, each frequency interval 25kHz (standard)
◆ receive, send one, digital analog signals can be sent, switch quickly
◆ air send and receive frequency can be the same frequency, but also different frequency
◆ Double phase-locked loop, double VCO structure, high stability
◆ internal use of imported power amplifier module 30W
◆ interface using standard TTL, RS232 serial (or 485) level, you can directly control the keyboard or personal computer
◆ SMT process, stainless steel shell, small size, easy installation, external heat sink
◆ comes with N antenna interface, can be directly connected to the antenna launch

Specification:

Transmitter index
Modulation: FSK / MSK
Transmit power: 30W
Modulation distortion: ≤ 3%
Modulation sensitivity: 100mV (3KHz SINAD)
Adjacent channel power ratio: ≥65dB
Spurious RF component: ≤- 65dB
Receiving index
Available Sensitivity: ≤- 120dBm (12dB SINAD)
Residual level output: ≤- 45dB
Modulation reception bandwidth: ≥ 5KHz
Adjacent channel selectivity: ≥65dB
Intermodulation immunity: ≥ 60dB
Spurious response Immunity: ≥65dB
Demodulation output: ≥0.2V audio voltage
Comprehensive index
Working frequency band: 150MHz, 230MHz, 350MHz, 450MHz
Frequency stability: ± 2.5ppm
Channel spacing: 25kHz
Antenna impedance: 50Ω
Ambient temperature: -30 ℃ ~ +60 ℃
Frequency setting: DIP switch or computer write frequency
Data transfer rate: 1200bps, 2400bps, 4800bps, 9600bps
DC voltage: DC12-14V
Standby current: ≤ 50mA
Operating current when transmitting: ≤7.6A (transmission power of 30W)
Transmission distance: Omni 30km in city
