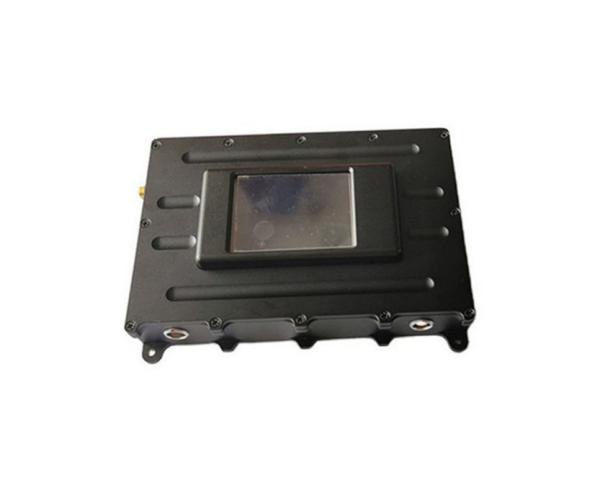

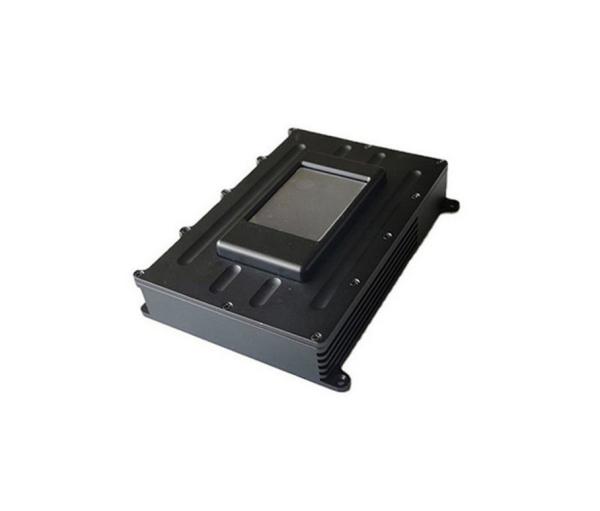

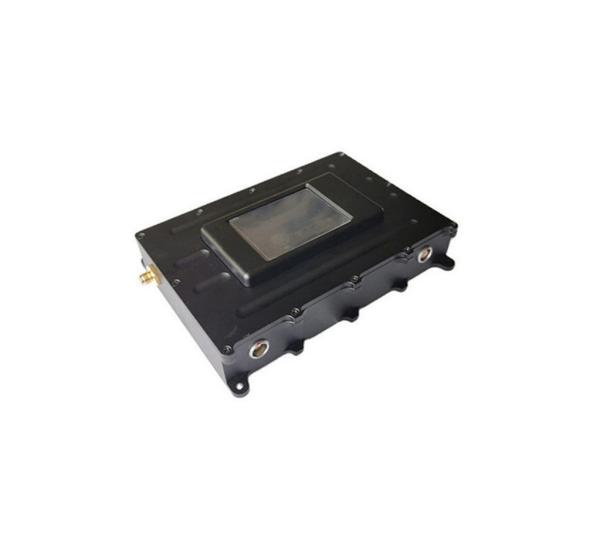

4MHz 8MHz Wireless HD Video Transmitter Cofdm Video Transmission
4MHz 8MHz Wireless HD Video Transmitter Cofdm Video Transmission
4MHz 8MHz Wireless HD Video Transmitter Cofdm Video Transmission
4MHz 8MHz Wireless HD Video Transmitter Cofdm Video Transmission
4MHz 8MHz Wireless HD Video Transmitter Cofdm Video Transmission
4MHz 8MHz Wireless HD Video Transmitter Cofdm Video Transmission
4MHz 8MHz Wireless HD Video Transmitter Cofdm Video Transmission
4MHz 8MHz Wireless HD Video Transmitter Cofdm Video Transmission
Specifications
Brand Name :
Ding Shen
Model Number :
DS-HDT3W
Place of Origin :
China
MOQ :
1set
Price :
>=1 Sets $3700
Payment Terms :
T/T
Supply Ability :
Quantity(Sets) 1 - 100000 >100000
Delivery Time :
5-10 working days
Certification :
CE/FCC
Place of Origin: :
china
Model Number: :
DS-HDT3W
DC Input: :
DC11V~DC16V
Modulation: :
COFDM
Constellation: :
PSK,16QAM,64QAM(optional),QPSK/16QAM/64QAM @ 6/7/8
RF bandwidth: :
4/8MHz(adjustable)
Description

surveillance equipment long distance wireless video transmitter

Model: DS-HDT3W

Introduction of surveillance equipment long distance wireless video transmitter

DS-HDT3Wis a new powerful HD COFDM video audio transmitter, which can up to 15-25W rf power. SFGT-HD25W wireless video transmitter can transmit a super long range that up to 250km on UAV.

It adopts core technology 4th generation mobile communication COFDM modulation and low delay full-HD 1080P technique that can transmit high quality and stable image under the condition of fast moving or many buildings as obstacles(NLOS).

This wireless video transmitter is suitable for vehicles -- cars, boat -- boats, cars - -a building,

Ship--a base station, aircraft--a building/vehicle and etc. SFGT-HD25W transmits high-definition moving video signal even if in a fast moving condition, and the max moving speed can up to 450 km / h.

Transmitter parameter:

Power section
DC Input DC11V~DC16V
Working Current ≤1.1A DC12.5V

Transmitter section
Frequency range Output 250MHz-320MHz330MHz- 450MHz / 1000MHz --4400MHz,or can be customized according to customer's request.
Modulation COFDM
RF bandwidth 4/8MHz(adjustable)
Power output 1-3W(adjustable),in 1dB step
SHG >52dBc
Encryption AES128/256bits
Constellation QPSK,16QAM,64QAM
FEC 1/2,2/3,3/4,5/6, 7/8
Guard Interval 1/32,1/16,1/8,1/4
Carrier 2K
Flatness Full band≤2dB,8MHz≤0.5dB
AV Interface HDMI/SDI(have to choose one)
CNR(weighting) 58dB
Sloping field SNR(unweighted) ≥50dB

Analog Audio
Balanced audio input range Vmax=±15V
Unbalanced audio input range Vmax=3Vpp
HD interface SDI/HDMI(single selection)
Encryption AES 128/265 bit / ALLTECH Basic scrambling
KIIMPOK TECHNOLLOGY CO..,, LLIIMIITED D
Standard SMPTE 425M (Level A and Level B), SMPTE 424M, SMPTE 292, SMPTE 259M-C SMPTE 272M SMPTE 299M
Input range 800±80(mV)
Versions HDMI 1.3
HDCP protocol Yes

Encoding support
AV rate 64,96,112,128,160,192,224,256,320,384Kbps(adjustable)
Audio encoding mode MPEG1 Layer2
CBER <2.0E-4
Video resolution Maximum 1920×1080P/I@ 60P
Video coding H.264
Video rate 500kbps-16.68Mbps(autoadaptation)
Format YCbCr4:2:2
OperatingTemperature -25℃~55℃
Storage Temperature -40℃~70℃
Distance 20-60km LOS distance(on air) 1-3km NLOS distance(Ground to ground)

Appearance characteristics
Dimension 167*90*25mm
Weight 515g

Features:


1. Low delay, lightweight, live broadcast;
2. Support Full- HD quality image;
3. Support 1080i/1080P HD transmission;
4. COFDM modulation;
5. Built-in with HDMI or HD-SDI interface(single selection);
6. All parameters can be adjusted by user;
