DC12V Outdoor Wireless Camera Transmitter And Receiver
DC12V Outdoor Wireless Camera Transmitter And Receiver
DC12V Outdoor Wireless Camera Transmitter And Receiver
DC12V Outdoor Wireless Camera Transmitter And Receiver
DC12V Outdoor Wireless Camera Transmitter And Receiver
DC12V Outdoor Wireless Camera Transmitter And Receiver
DC12V Outdoor Wireless Camera Transmitter And Receiver
DC12V Outdoor Wireless Camera Transmitter And Receiver
Specifications
Brand Name :
Ding Shen
Model Number :
DS-HDT20W
Place of Origin :
Guang Dong China
MOQ :
1set
Price :
Negotiaiton
Payment Terms :
T/T
Supply Ability :
Quantity(Sets) 1 - 100000 >100000
Delivery Time :
3-7 working days
Packaging Details :
220*140*66mm
Certification :
CE/FCC
Place of Origin: :
Guangdong,china
Model Number: :
DS-HDT20W
Modulate :
COFDM
Frequency: :
300-900Mhz or other frequency customized
Video input: :
HDMI/SDI; CVBS
Video resolution: :
1920*1080P/I@60fps; 1280*720P/I@60fps
Description

Outdoor Long Range COFDM Wireless HD Video Transmitter for Vehicle

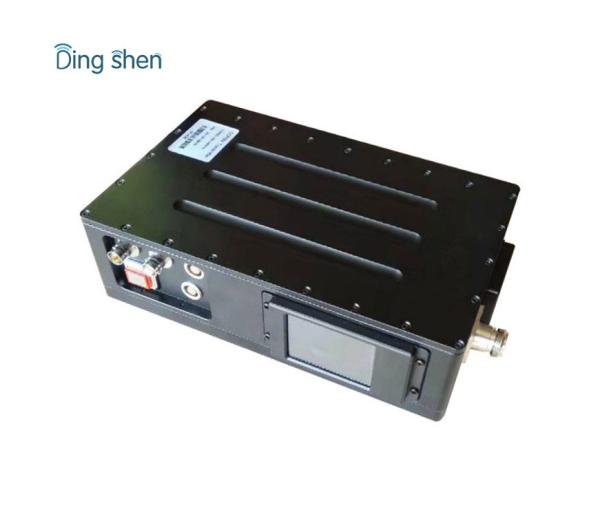

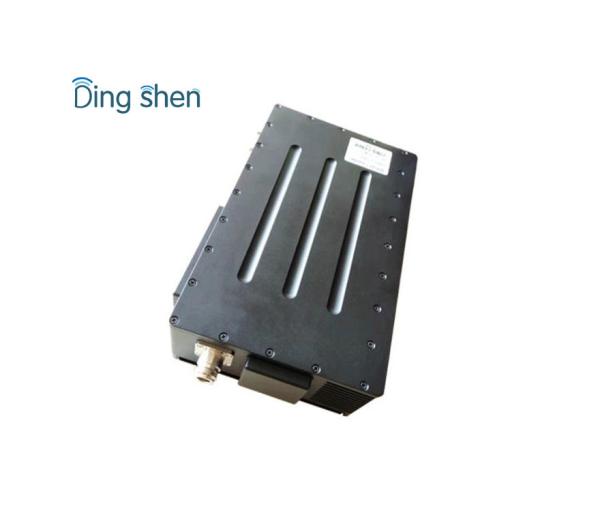

DS-HDT20W is a new arrival digital wireless video audio transmitter which adopts the latest technologies of COFDM modulation and H.264 image compression that enables good NLOS (Non line-of -sight) transmission with DVD quality video. The transmitter is compact size with strong power amplifier for longer-range transmission. Good heat resistant with two cooling fans. Be safety with AES128 bits. It works well in fast-moving transmission.

Transmitter parameter:

Modulate COFDM
Working voltage DC12V
Working current ≤6A@DC12V
RF bandwidth 2/4/6/8MHz (adjustable)
Frequency 300-900Mhz or other frequency customized
Output power 10-20W adjustable
Video input HDM-I/SDI; CVBS
Data input (option) RS232/TTL, up to 115200bps
Video resolution 1920*1080P/I@60fps; 1280*720P/I@60fps
Video coding MPEG-2/H.264/H265
Video rate 512Kbps-16Mbps (adjustable)
Encryption AES 128 bits
AV input 1Vp-p, 75Ω. Left and right channel
Video system PAL/NTSC
Power flatness Full band ≤1.5dB
CNR ≥25dBc@48dBm
Second harmonic ≥60dBc
CBER <2.0E-4
VBER <1.0E-7
MER 32dB
Carrier 2k 4k 8k
Constellation QPSK,16QAM,64QAM (option)
FEC 1/2, 2/3, 3/4, 5/6, 7/8 (option)
Guard Interval 1/32, 1/16, 1/8, 1/4 (option)
Working Temperature -25°C~55°C
Dimension 220*140*66mm
Weight 2.5kg

DC12V Outdoor Wireless Camera Transmitter And ReceiverDC12V Outdoor Wireless Camera Transmitter And ReceiverDC12V Outdoor Wireless Camera Transmitter And ReceiverDC12V Outdoor Wireless Camera Transmitter And Receiver

DC12V Outdoor Wireless Camera Transmitter And ReceiverDC12V Outdoor Wireless Camera Transmitter And Receiver
