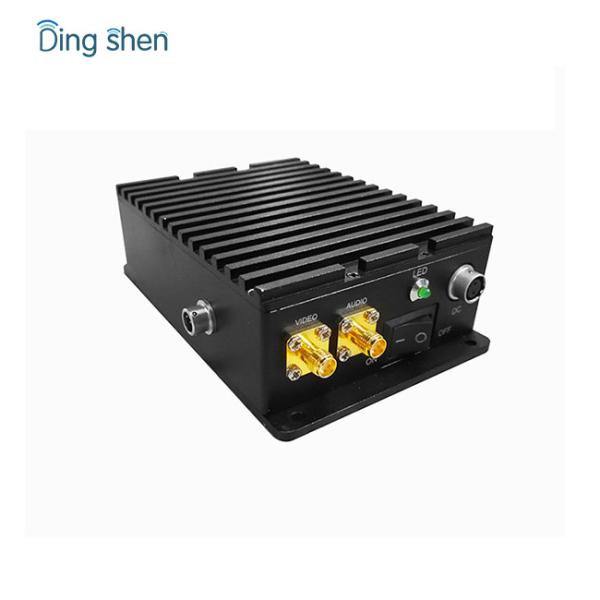

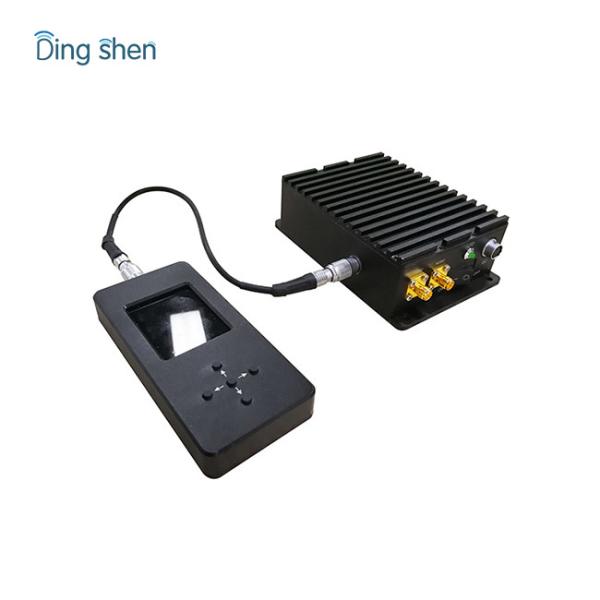

Robot COFDM HD Video Transmitter Surveillance EOD 300MHz
Robot COFDM HD Video Transmitter Surveillance EOD 300MHz
Robot COFDM HD Video Transmitter Surveillance EOD 300MHz
Robot COFDM HD Video Transmitter Surveillance EOD 300MHz
Robot COFDM HD Video Transmitter Surveillance EOD 300MHz
Robot COFDM HD Video Transmitter Surveillance EOD 300MHz
Specifications
Brand Name :
Ding Shen
Model Number :
DS-EOD1
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
1000PCS per month
Delivery Time :
3-7 days
Packaging Details :
export standard packing
Type: :
UGV transmitter, EOD video transmtter
Other name: :
Mini COFDM video transmitter
Modulation: :
COFDM
Function: :
NLOS long range audio video transmission
User: :
UAV, UGV, ground station control, EOD robot
Frequency: :
300MHz-1500MHz, 1.5GHz-4.4GHz
Description

Other Surveillance Products COFDM Robot Transmitter

This video transmitter is specially designed for robot and unmanned vehicle use.

Customized project is welcome!

COFDM Technique Advantages

  1. Strong interference
  2. Anti-multipath fading
  3. LOS & NLOS operation

Warranty

  1. Twelve months free warranty for equipment
  2. Three months for components
  3. Replacement parts will be charged after one year

Other Surveillance Products COFDM Robot Transmitter

Other Surveillance Products COFDM Robot Transmitter
Frequency 300-4400MHz(optional)
RF output Power 1-2 Watt (adjustable 30dBm-33dBm)
Voltage DC12V/ 1.3A
Modulation COFDM
Constellation QPSK,16QAM
Bandwidth 2/2.5/4/8MHz(adjustable)
FEC 1/2,2/3,3/4,5/6,7/8
Guard Interval 1/32,1/16,1/8,1/4
Video Input 1 line PAL/NTSC analog video
Audio Input stereo left and right channels
AV Interface BNC/RCA
Video Compression H.264
Data encryption AES / ALLTECH Basic scrambling
Flatness Full band≤2dB, 8MHz≤0.5dB
Carrier 2K, 8K
Resolution standard 720P
RF Interface N(F)
Video Format PAL/NTSC(self-adaption)
Work environment -30~70℃
Distance 500m-1km max NLOS on ground (customize for longer range)

Over 20kms LOS distance on UAV (if over 300m altitude)
Size 100*100*50mm
Weight 900g(net weight)

Parameters of receiver to Other Surveillance Products COFDM Robot Transmitter

Frequency 300-4400MHz(optional)
Receive sensitivity < -105dBm
RF Interface N(F)
Modulation COFDM
Power supply AC220V/DC12V
Bandwidth 2/2.5/4/8MHz(adjustable)
Constellation QPSK,16QAM
FEC 1/2,2/3,3/4,5/6,7/8
Guard Interval 1/32,1/16,1/8,1/4
Video Output 1 line PAL/NTSC analog video
AV interface RCA
Revolution Standard 720P
Lines of horizontal 625 or 525 Line
Audio Output stereo left and right channels
Data encryption AES/ ALLTECH Basic scrambling
Work environment -30~70℃
Size 430*310*65mm
Weight 3.5kg

Robot COFDM HD Video Transmitter Surveillance EOD 300MHzRobot COFDM HD Video Transmitter Surveillance EOD 300MHzRobot COFDM HD Video Transmitter Surveillance EOD 300MHz
