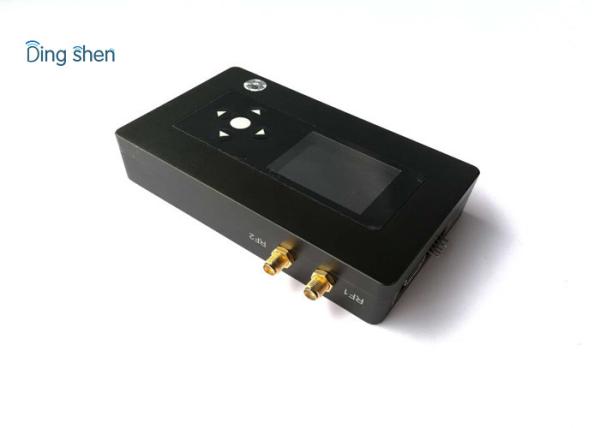

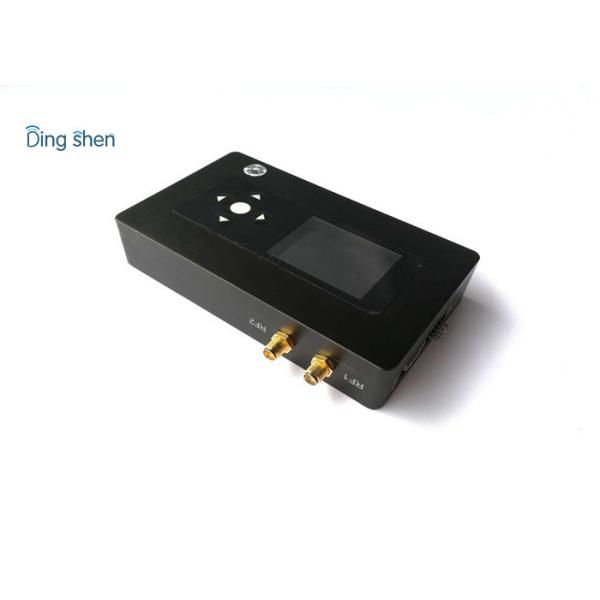

HD COFDM Wireless Video Transmitter Receiver -105dBm/2MHz
HD COFDM Wireless Video Transmitter Receiver -105dBm/2MHz
Specifications
Brand Name :
Ding Shen
Model Number :
DS-320
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
1000PCS per month
Delivery Time :
3-7 days
Packaging Details :
export standard packing
Video Output: :
HDMI And CVBS
Bandwidth: :
2/2.5/4/8MHz
Demodulation :
COFDM
Decoding: :
MPEG2/H.264
Receiving Sensitivity :
-105dBm/2MHz
Radio Frequency: :
300MHz～860MHZ,Stepping 1MHz
Decryption: :
AFS
Demension: :
125mm*73mm*26mm
Description

Mini H.264 Cofdm video Receiver HD handheld 1080P diversity reception

Product introduction

DS-320 HD H.264/MPEG2 COFDM Wireless video transmission Receiver. Using advanced multi-carrier diversity reception technology.Support high-speed movement and non-line of sight reception.Simple and efficient to use control interface.It’s can simultaneously output multiple video including HD and SD video.Widely used in security, fire fighting, radio and television, emergency communications and ect.Receiving wireless signals,realize the remote video transmission and monitoring under the condition of mobile non line-of-sight.

Features

● Support COFDM model H.264/MPEG2 full-featured video decoding

● Support NLOS,High-speed movement transmission

● Digital operation panel and display,easy to use

● Support dual antenna multi-carrier diversity reception

DS-320 Technical parameters

Model DS-320
Voltage DC 6~15V
Current 350mA_12V
Receive sensitivity -102dBm/2MHz
Video output CVBS:Support D1 SD resolution
HDMI:Support HD1080,720P,576,480
Bandwidth 2/2.5/4/8MHz
Radio frequency 300MHZ—860MHz,stepping 1MHz
Input SMA
Decoding MPEG2/H.264
Demodulation COFDM

Parameter control

mode

Through the LCD display panel to set the

related parameters
Dimension 125mm*73mm*26mm

HD COFDM Wireless Video Transmitter Receiver -105dBm/2MHz
