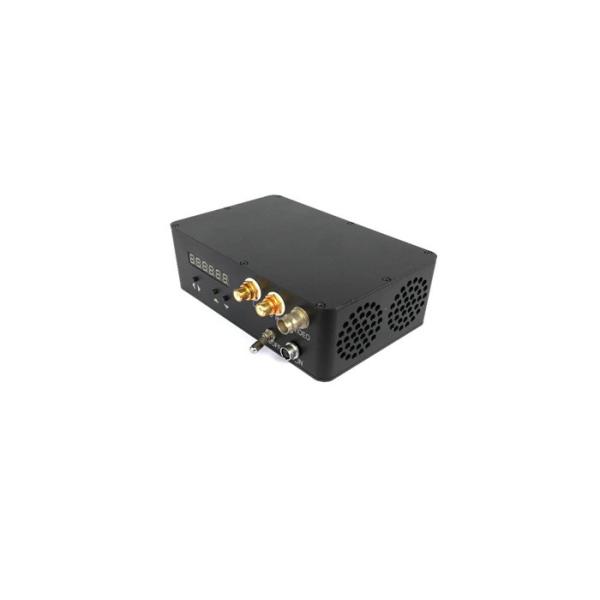

H.264 Wireless AV Sender Receiver Long Range AV Signal Transmitter
H.264 Wireless AV Sender Receiver Long Range AV Signal Transmitter
Specifications
Brand Name :
Ding Shen
Model Number :
DS-220T
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
1000PCS per month
Delivery Time :
3-7 days
Packaging Details :
export standard packing
DC Input: :
DC 12~15V
Audio Channel: :
2 Channel
Operating Frequency: :
300～2400MHz,stepping 1MHz
Video Input: :
CVBS
Working Bandwidth :
2MHZ/4MHZ/8MHZ
Output Power: :
32dbm
Description

H.264 wireless av transmitter CVBS long range Wireless Audio Video Transmitter

Product Introduction

is a multi point to multi point broadband data transmission equipment.Support for multiple

bandwidth allocation. This equipment based on TDD technology, using IP communications functions,

it can be set up wireless local area network (LAN).Easy to realize two-way data and video transmission.

With strong ability of anti-jamming, high confidentiality of signal transmission., etc.

Key Features

●Supports high-definition analog video NTSC/PAL input

●Adopt COFDM modulation technology, MPEG-2 image compression processing

●Highly integrated modular design, small size

●Support NLOS high speed mobile transmission

●Full aluminum alloy design, good heat dissipation

Technical Characteristic

Model DS-220T
Input voltage DC 12~15V
Working Current 2A_12V
Video input CVBS:480i/576i
Audio channel 2 channel
Working bandwidth 2.0/4.0/8.0MHz
Operating frequency 300～2400MHz,stepping 1MHz
Output power 32dBm
RF interface N type
video encoding H.264
Modulation COFDM
Constellation QPSK
Parameter control method Set related parameters through LED digital tube
Dimension 158mm*100mm*52mm
