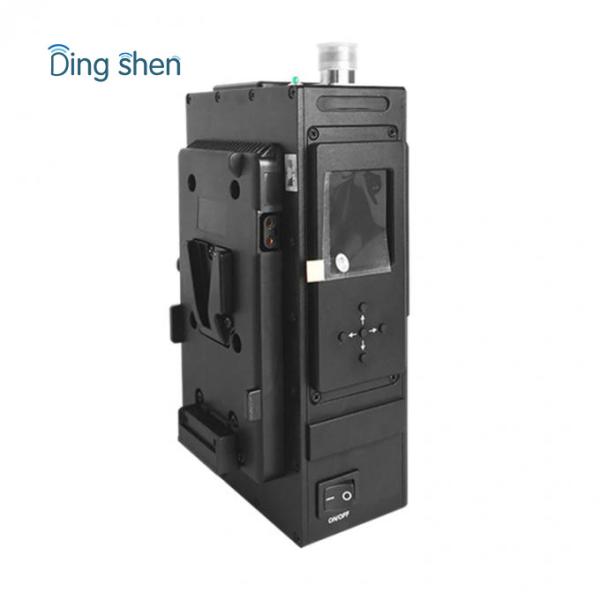

1080P HD COFDM Wireless Video Transmitter 8K Carrier 300-4400MHz Broardcast AV Sender
1080P HD COFDM Wireless Video Transmitter 8K Carrier 300-4400MHz Broardcast AV Sender
Specifications
Brand Name :
Ding Shen
Model Number :
DS-TS350
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
1000PCS per month
Delivery Time :
3-7 days
Packaging Details :
export standard packing
OperatingTemperature: :
-25℃~55℃
Modulation: :
COFDM
AV Interface: :
BNC / Aviation Plug
Transmit Power: :
2-8W (adjustable)
Bandwidth: :
2/2.5/4/8MHz(adjustable)
Video Coding: :
H.264
RF Interface: :
N Type
RF Output Power: :
5 Watt
Resolution: :
720P/
Description

1080P HD COFDM Wireless Video Transmitter 8K Carrier 300-4400MHz Broardcast AV Sender

Feature:

  • COFDM modulation, stability signal
  • HD-SDI/HD and BNC input
  • Bandwidth 2/2.5/4/8MHz adjustable
  • HD & composite video input
  • Balanced stereo audio input.
  • Dual V battery mounts
  • 5W rf power output adjustable
  • Live broadcasting ,low delay time

Specifications:

Power supply
DC Input DC11-16V
Working Current 1.9A@12V
Output Power 5 Watt
Video transmission:
Frequency range Output

300-900MHz(optional),

1.0-1.4G/2.3-2.5G/4-4.4GHz(customized)
Modulation COFDM,2K ,QPSK
RF bandwidth 4/8MHz(adjustable)
RF Power output 1-8W(adjustable)
SHG >52dBc
Encryption AES128/256bits
Constellation QPSK,16QAM,64QAM
FEC 1/2,2/3,3/4,5/6, 7/8
Guard Interval 1/32,1/16,1/8,1/4
Carrier 2K,8K
Flatness Full band≤2dB,8MHz≤0.5dB
AV input BNC: D1 standard definition
HD: HD1080i/1080P, 720P, 576, 480
HD-SDI:HD1080i/1080P, 720P, 576, 480
CNR(weighting) 58dB
Sloping field SNR(unweighted) ≥50dB
Audio transmission
Balanced audio input range Vmax=±15V
Unbalanced audio input range Vmax=3Vpp
Audio channel Stereo L/R audio channel
Standard SMPTE 425M (Level A and Level B), SMPTE 424M, SMPTE 292, SMPTE 259M-C SMPTE 272M SMPTE 299M
Input range 800±80(mV)
Encoding
Audio encoding mode MPEG1 Layer2
CBER <2.0E-4
Video resolution

Minimum 1280*720@50i

Maximum 1920×1080P/I@60hz
Video coding H.264
Video rate 500kbps-16.68Mbps(autoadaptation)
Max speed rate 450km/h
Format YCbCr4:2:2
Working Environment
OperatingTemperature -25℃~55℃
Storage Temperature -40℃~70℃
Appearance

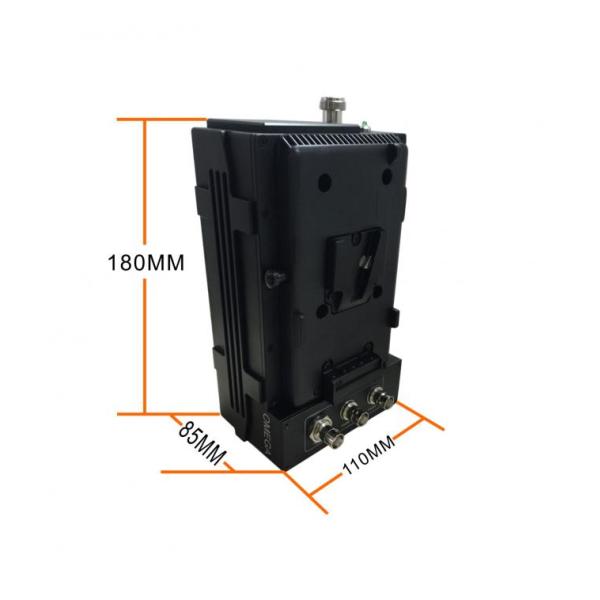

Dimension 180*110*85mm(with dual V mounts)
Weight 1.6kg

1080P HD COFDM Wireless Video Transmitter 8K Carrier 300-4400MHz Broardcast AV Sender

1080P HD COFDM Wireless Video Transmitter 8K Carrier 300-4400MHz Broardcast AV Sender

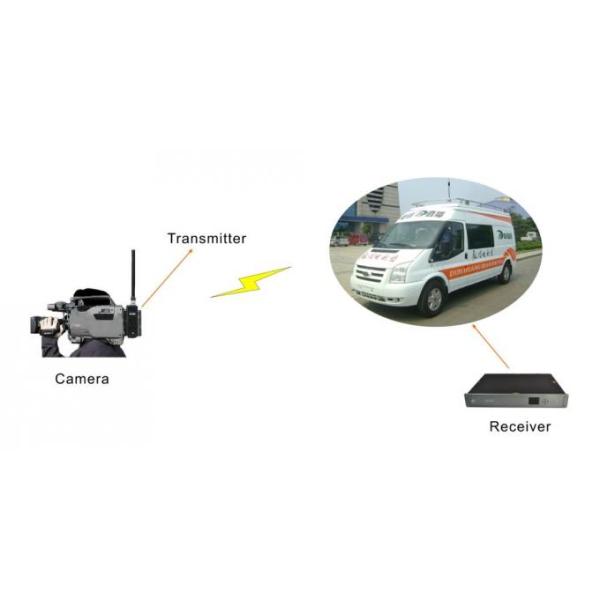

Application:

1080P HD COFDM Wireless Video Transmitter 8K Carrier 300-4400MHz Broardcast AV Sender
