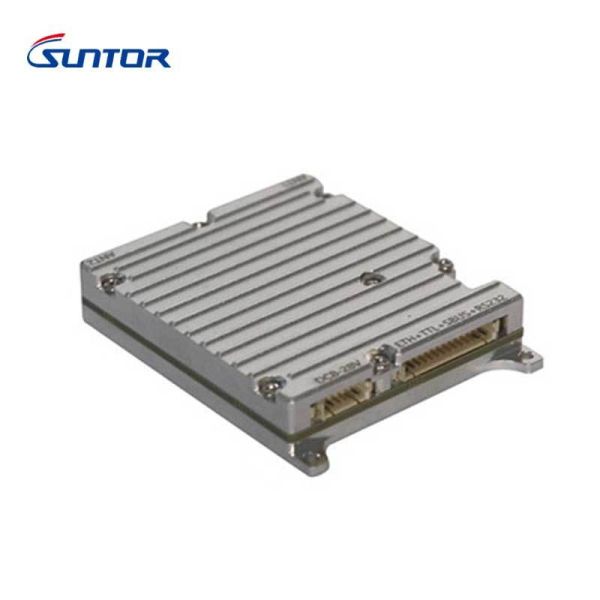

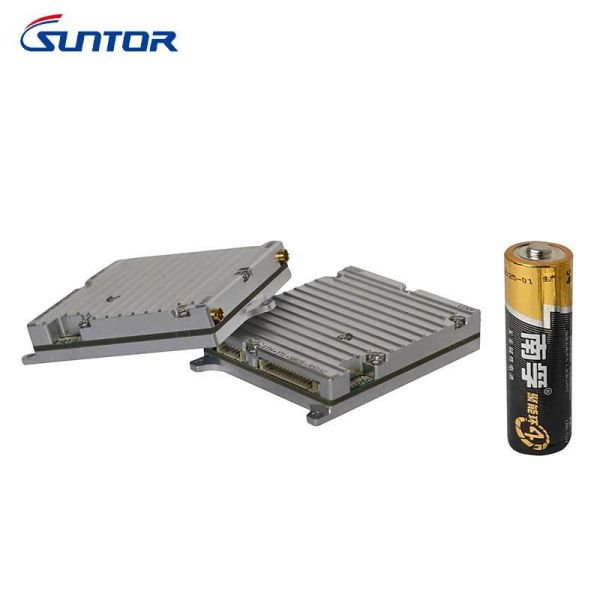

IP Mesh Drone Radio MD30Pro AES Encryption for UAV Communication
IP Mesh Drone Radio MD30Pro AES Encryption for UAV Communication
IP Mesh Drone Radio MD30Pro AES Encryption for UAV Communication
IP Mesh Drone Radio MD30Pro AES Encryption for UAV Communication
IP Mesh Drone Radio MD30Pro AES Encryption for UAV Communication
IP Mesh Drone Radio MD30Pro AES Encryption for UAV Communication
IP Mesh Drone Radio MD30Pro AES Encryption for UAV Communication
IP Mesh Drone Radio MD30Pro AES Encryption for UAV Communication
Specifications
Brand Name :
Suntor
Model Number :
MD30Pro
Place of Origin :
ShenZhen
Frequency Range :
1300~1500MHz
Transmitter Power :
1W (0.5W * 2)
Transmission System :
COFDM
Data Rate :
25Mbps@10MHz (Peak)
Video Input :
ETH (HDMI/SDI for Optional)
Networking Hops :
1 / 2 / 3 / 4 / 10 Hops
Description
MD30Pro Drone Mesh Radio with AES Encryption & 25Mbps Data Rate
The MD30Pro Drone Mesh Radio is a compact, lightweight, and high-performance IP Mesh networking device designed for UAV communication, tactical operations, emergency response, and long-range wireless data transmission. Built with advanced COFDM modulation, AES128/256 encryption, and frequency hopping technology, the MD30Pro delivers stable broadband connectivity in complex environments.
Supporting up to 25Mbps data rate, 30KM air-to-ground transmission, and multi-node self-healing mesh networking, the MD30Pro provides reliable real-time video, telemetry, and IP data transmission for mission-critical applications.
Key Features
  • Long Range UAV Mesh Communication - Supports up to 30KM air-to-ground wireless transmission distance for stable communication links
  • High-Speed Broadband Data Transmission - Peak data rate of 25Mbps supports real-time HD video streaming and IP data communication
  • Advanced IP Mesh Networking - Ad-hoc mesh networking with over 64 IP Mesh nodes that automatically connect and self-organize
  • AES128/256 Encryption Protection - Secure wireless communication for sensitive video and data transmission
  • FHSS Frequency Hopping Technology - IFS/FHSS frequency hopping improves anti-interference capability and reliability

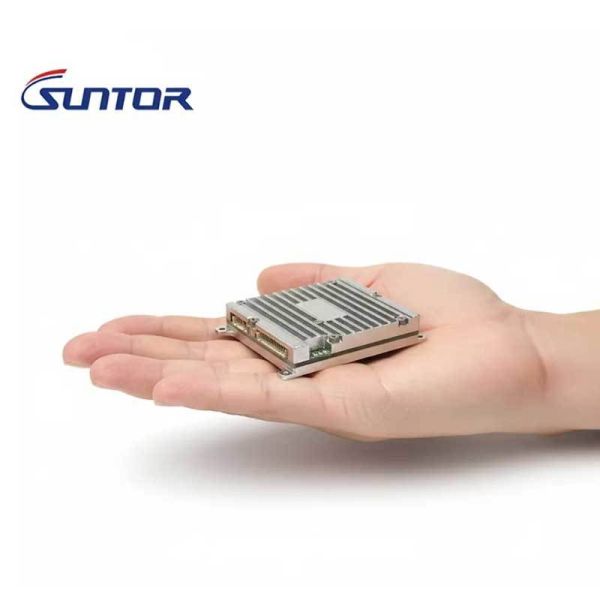

  • Compact and Lightweight Design - Weighing less than 50g, optimized for UAV payload integration
Technical Specifications
Specification Details
Product Model MD30Pro
Transmission Technology COFDM
Networking Type IP Mesh / Ad-Hoc Network
Frequency Range 1350~1450MHz (Customizable)
Data Rate Up to 25Mbps
RF Power 0.5W * 2
Transmission Distance Up to 30KM Air-to-Ground
Encryption AES128 / AES256
Modulation BPSK/QPSK/16QAM/64QAM
Network Nodes More Than 64 Nodes
Networking Hops Up to 10 Hops
Startup Time 5 Seconds
Power Consumption ≤10W Peak
Voltage Input DC 8~28V

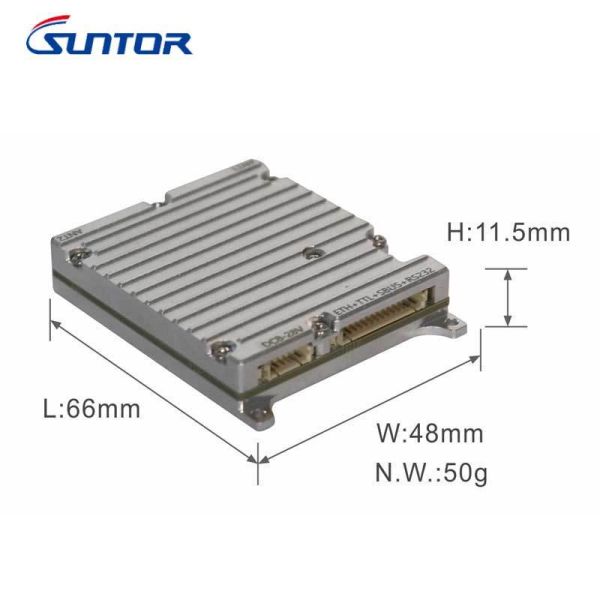

Dimensions ≤66 * 48 * 11.5mm
Weight ≤50g
Operating Temperature -40°C ~ +55°C
Applications
  • UAV Video Transmission
  • Emergency Rescue Communication
  • Tactical Surveillance Systems
  • Public Safety Operations
  • Border Security
  • Firefighting Communication
  • Industrial Inspection Drones
  • Smart City Wireless Networking
  • Tactical and Defense Communication
  • Unmanned Ground Vehicle (UGV) Communication
Why Choose MD30Pro UAV Mesh Radio?
The MD30Pro combines long-range transmission, secure mesh networking, and high-speed broadband communication in an ultra-compact form factor. Its advanced self-healing IP Mesh architecture ensures stable communication even in dynamic and infrastructure-less environments. Whether deployed for emergency response, drone video transmission, or tactical communication, the MD30Pro provides reliable and secure wireless connectivity for professional mission-critical applications.
