OFDM Modulation Drone Video Link Transmitter ST1410KP With RS23 / RS485 Interface
OFDM Modulation Drone Video Link Transmitter ST1410KP With RS23 / RS485 Interface
OFDM Modulation Drone Video Link Transmitter ST1410KP With RS23 / RS485 Interface
OFDM Modulation Drone Video Link Transmitter ST1410KP With RS23 / RS485 Interface
OFDM Modulation Drone Video Link Transmitter ST1410KP With RS23 / RS485 Interface
OFDM Modulation Drone Video Link Transmitter ST1410KP With RS23 / RS485 Interface
OFDM Modulation Drone Video Link Transmitter ST1410KP With RS23 / RS485 Interface
OFDM Modulation Drone Video Link Transmitter ST1410KP With RS23 / RS485 Interface
OFDM Modulation Drone Video Link Transmitter ST1410KP With RS23 / RS485 Interface
OFDM Modulation Drone Video Link Transmitter ST1410KP With RS23 / RS485 Interface
Specifications
Brand Name :
Suntor
Model Number :
ST1410KP
Certification :
CE, RoHS, FCC
Place of Origin :
Shenzhen
MOQ :
1
Payment Terms :
T/T, Western Union
Supply Ability :
1000 pcs per month
Delivery Time :
8-15 days
Packaging Details :
box package
Material :
Aluminum
Range :
32KM
Dimensions :
125.355x15.7mm
Weight :
160g
Modulation :
OFDM
Color :
White
RF Power :
0.3W
Description

The ST1410KP Drone Video Link Transmitter has the characteristics of large bandwidth, long distance, strong anti-interference ability, strong diffraction performance.

Features

  • Two-way data links and one-way video link
  • Physical layer encryption AES 128 bit
  • Frequency range 1410~1470MHz
  • Support RS232& RS485 data
  • Maximum transfer rate up to13Mbps
  • Working temperature: -40℃~+85℃
  • Support video and duplex data

OFDM Modulation Drone Video Link Transmitter ST1410KP With RS23 / RS485 Interface

OFDM Modulation Drone Video Link Transmitter ST1410KP With RS23 / RS485 Interface

Transmission rate

Index Frequency bandwidth A2G Transmission rate G2A Transmission rate
1 20 MHz 12Mbps 115Kbps
2 14MHz 9Mbps 115Kbps
3 14MHz 9Mbps 500Kbps
4 14MHz 9Mbps 1Mbps
5 10MHz 7Mbps 115Kbps
6 10MHz 5Mbps 115Kbps
7 8MHz 5Mbps 115Kbps
8 8MHz 5Mbps 300Kbps
9 8MHz 5Mbps 500Kbps
10 8MHz 2.5Mbps 115Kbps
11 4MHz 1.2Mbps 115Kbps
MARK: A2G: air to ground ; G2A: ground to air

The ST1410KP drone link application for disaster relief, emergency rescue, forest-fire prevention by UAV, emergency communication, live streaming, rebroadcast,individual reconnaissance of field forces image transmission for public security system, armed system, firefighting command truck, etc.

Real-time news gathering and match broadcasting in wireless mobile camera trucks mission,real-time monitoring at sea in frontier areas such as anti-smuggling, maritime affairs and coastal defense.

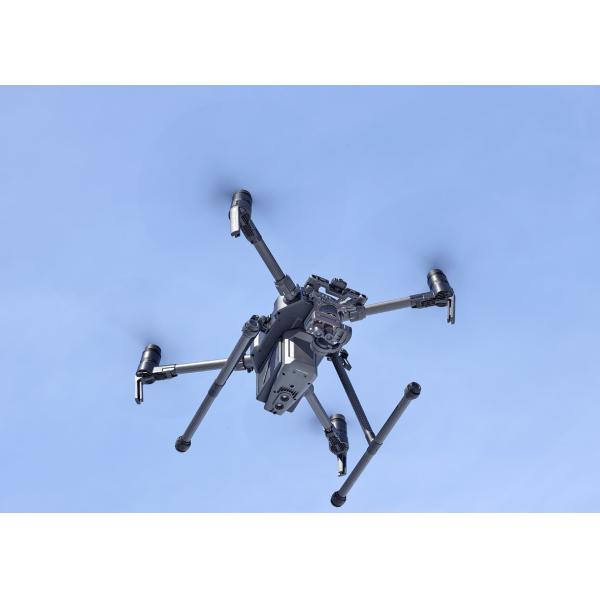

And ST1410KP Drone Video Link application for aerial scouting, monitoring by helicopter, airship, especially for the environment unsuitable or unable for wiring.
