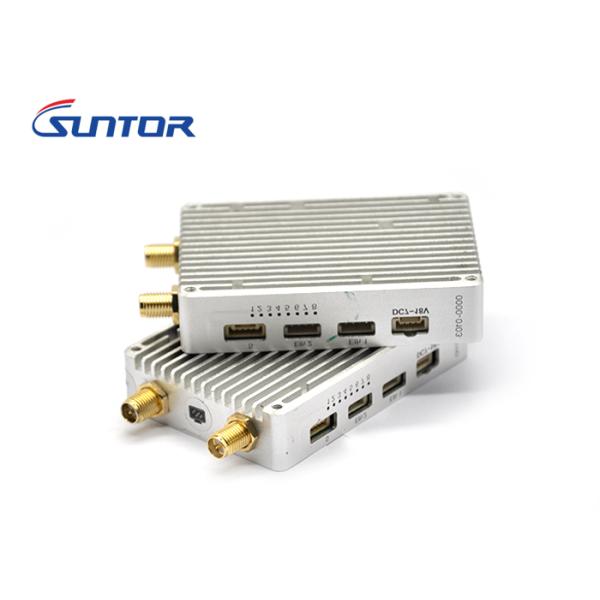

10KM Drone Transmitter And Receiver Link 2.4GHz Frequency With ETH / TTL
10KM Drone Transmitter And Receiver Link 2.4GHz Frequency With ETH / TTL
10KM Drone Transmitter And Receiver Link 2.4GHz Frequency With ETH / TTL
10KM Drone Transmitter And Receiver Link 2.4GHz Frequency With ETH / TTL
10KM Drone Transmitter And Receiver Link 2.4GHz Frequency With ETH / TTL
10KM Drone Transmitter And Receiver Link 2.4GHz Frequency With ETH / TTL
10KM Drone Transmitter And Receiver Link 2.4GHz Frequency With ETH / TTL
10KM Drone Transmitter And Receiver Link 2.4GHz Frequency With ETH / TTL
10KM Drone Transmitter And Receiver Link 2.4GHz Frequency With ETH / TTL
10KM Drone Transmitter And Receiver Link 2.4GHz Frequency With ETH / TTL
Specifications
Brand Name :
Suntor
Model Number :
ST10NPT
Certification :
CE, RoHS, FCC
Place of Origin :
Shenzhen
MOQ :
1
Payment Terms :
T/T, Western Union
Supply Ability :
1000 pcs per month
Delivery Time :
7-10 days
Packaging Details :
Box Package
Range :
10KM
Dimensions :
68×48×15mm
Weight :
68g
Color :
White
RF Power :
30dBm
Material :
GB Aluminum
Modulation :
TDD-COFDM
Frequency :
2.3-2.5GHz
Description

Suntor working at wireless transmission filed has been 13 years. The high-tech enterprise born from a small electronics corporation in Shenzhen to now day a large scale company step by step. Suntor manufacture specially various of wireless video transmission equipment, and did a lot of solutions and help for customers all over the world.

10KM Drone Transmitter And Receiver Link 2.4GHz Frequency With ETH / TTL


Features

1. Ultra-low power consumption 5W
2. Support aes128 encryption
3. Excellent objective and subjective video

4. Ultra-low latency 20-30ms

5. Long range and good performance

6. Ultra small resource and high performance

Ethernet Protocol UDP/ TCP
Frequency

3 frequency for your option 2.3Ghz/2.4Ghz/2.5Ghz(customized)

2.3GHz(2304~2390MHz)

2.4GHz(2402Mhz-2482MHz) default

2.5GHz(2500~2570MHz)
RF Transmitting Power 30dBm(air to ground 5km)
Frequency Bandwidth 4MHz
Error Detection LDPC FEC
Start-up time <35 s
Communication Channel Encryption aes 128
Transmission Mode point to point
Net Weight Tx/ Rx: 68g
Start-up time < 30s
Two-way function Support video and duplex data simultaneously
Data Support SBUS/TTL/MAVLINK Telemetry
Date Rate 4-5Mbps
Appearance Design CNC technology/ double aluminum alloy shell with waterproof design
Sensitivity

-100dbm@4Mhz

-95dbm@8Mhz
Power DC12V (support DC 7-18V)
Power Consumption TX: 6Watts
RX: 5Watts
Temperature Operating temperature: -40 - +85°C
Storage temperature: -55 - +100°C
Interface Power input interface × 1
Antenna interface × 1
TTL Bidirectional Port × 1
Ethernet port× 2
Indicator RJ45 input/output indicator light
Transmitting and receiving indicator light
Transmitting and receiving indicator light
Power light
Size 68×48x15mm

10KM Drone Transmitter And Receiver Link 2.4GHz Frequency With ETH / TTL

Suntor bought many new machines for testing products and control the quality carefully, focus on wireless transmission equipment all the time, for example 1.3-2.5GHz UAV link transmission system, UHF mobile video system, 5.8GHz long range backhaul system and MESH Ad-Hoc Network system. It’s obvious, Suntor brand is more and more popular and stronger in video transmission industry.

.
