CD11HPT Long Range Low Latency 2.4GHz COFDM Video Transmitter For Drone
CD11HPT Long Range Low Latency 2.4GHz COFDM Video Transmitter For Drone
CD11HPT Long Range Low Latency 2.4GHz COFDM Video Transmitter For Drone
CD11HPT Long Range Low Latency 2.4GHz COFDM Video Transmitter For Drone
CD11HPT Long Range Low Latency 2.4GHz COFDM Video Transmitter For Drone
CD11HPT Long Range Low Latency 2.4GHz COFDM Video Transmitter For Drone
CD11HPT Long Range Low Latency 2.4GHz COFDM Video Transmitter For Drone
CD11HPT Long Range Low Latency 2.4GHz COFDM Video Transmitter For Drone
CD11HPT Long Range Low Latency 2.4GHz COFDM Video Transmitter For Drone
CD11HPT Long Range Low Latency 2.4GHz COFDM Video Transmitter For Drone
Specifications
Brand Name :
SUNTOR
Model Number :
CD11HPT
Certification :
CE Rohs
Place of Origin :
China
MOQ :
1set
Price :
talking
Payment Terms :
Western Union, T/T
Supply Ability :
100 set per month
Delivery Time :
15days
Packaging Details :
ABS box
Fre :
2.4g only
Video :
HD digital
Band :
10M/5M
Rate :
2M-3M
POWER :
1W
Distance :
10km
Description

10KM Drone Video Transmitter 2.4GHz Long Range Tiny Dimension Low Latency

CD11HPT Drone Video Transmitter & Receiver Specifi...

Introduction of drone video transmitter:

CD11HPT is a mini Full HD Video transmission and duplex data telemetry control system for UAV drones offering video data control, telemetry & payload in,

Video Transmission in 1 RF channel. It develops video format(H.264+H.265) coding&decoding technology to achieve

Utra-high resolution(1080P), long distance(air to ground 10km) and low delay(50-100ms) transmission. The system

supports two-way(data) communication, adjustable video resolution, bit rate output with 115200. It can realize the soft decoding with low delay. Meanwhile this series products have small size, light-weight,

low consumption, high stability and high sensitivity. They are suitable various environment of different application.

Features of drone video transmitter:

Working Temperature: -40℃—+85℃

Support TTL/Mavlink Telemetry

Double Serial Ports for bi-directional Data

Offering control, telemetry & payload in, Video Transmission in 1 RF channel

Video: Video sources self-adaptive(Max 1080P/60), Support HD digital Input/output

Technical parameters of drone video transmitter:

Distance

10km

Frequency

2.4G

Video

HD+Eth

Data

TTL

Sensitivity receving:

(-93dbm)

Model

PTP

TX Consumption

10W

RX Consumption

6W

Technical Support of drone video transmitter:

Q1:How long range from air to ground?

Suntor 5km 10km 15km 30km.

Q2:Video output type?

HD+Ethernet or Ethernet only.

Q3:Frequency would be?

2.4G 1.4G 800M

Q4:Transmitting mode?

Point to point and point to multi-point

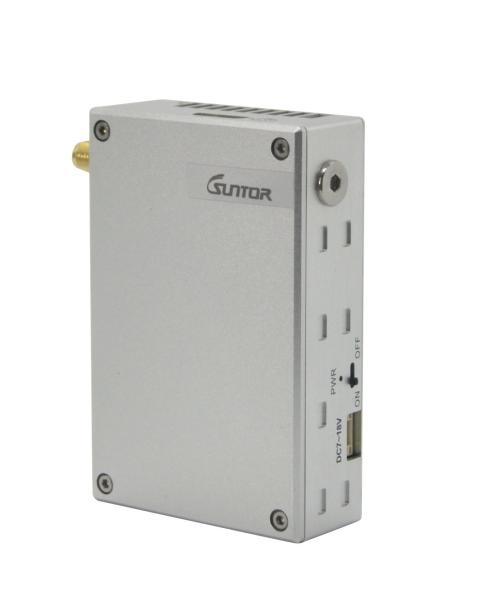

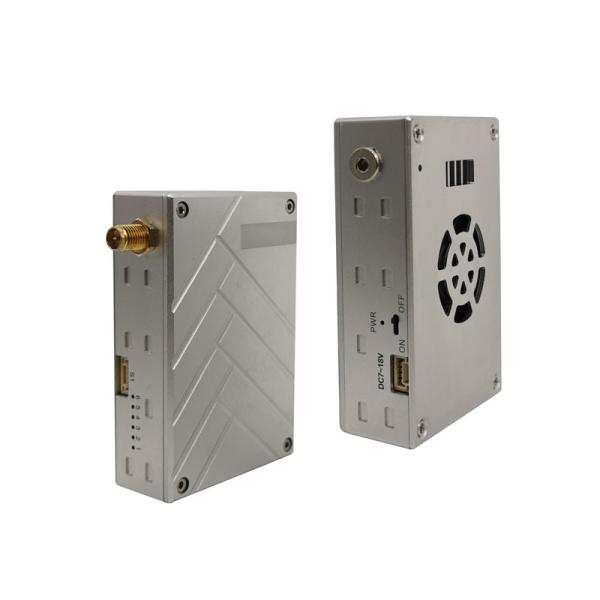

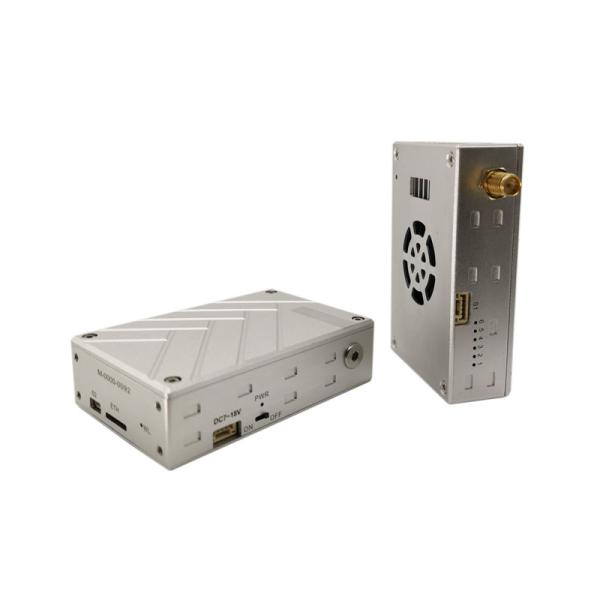

Product picturer of drone video transmitter:

CD11HPT Long Range Low Latency 2.4GHz COFDM Video Transmitter For Drone

CD11HPT Long Range Low Latency 2.4GHz COFDM Video Transmitter For Drone
