CD30Pro 50km UAV Video Transmitter HD Lightweight Wireless Data Link With AES128 Security Protection
CD30Pro 50km UAV Video Transmitter HD Lightweight Wireless Data Link With AES128 Security Protection
CD30Pro 50km UAV Video Transmitter HD Lightweight Wireless Data Link With AES128 Security Protection
CD30Pro 50km UAV Video Transmitter HD Lightweight Wireless Data Link With AES128 Security Protection
CD30Pro 50km UAV Video Transmitter HD Lightweight Wireless Data Link With AES128 Security Protection
CD30Pro 50km UAV Video Transmitter HD Lightweight Wireless Data Link With AES128 Security Protection
CD30Pro 50km UAV Video Transmitter HD Lightweight Wireless Data Link With AES128 Security Protection
CD30Pro 50km UAV Video Transmitter HD Lightweight Wireless Data Link With AES128 Security Protection
Specifications
Brand Name :
Suntor
Model Number :
CD30Pro
Place of Origin :
Shenzhen China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, Western Union, PayPal
Supply Ability :
1000SET/Month
Packaging Details :
Carton
Modulation :
QPSK/16QAM/64QAM
Data Rate :
24Mbps@10MHz(Peak)
Bandwidth :
5MHz/10MHz/20MHz
Tx Power :
33dBm ± 2
Rx Sensitivity :
-99dBm@5MHz
Security :
AES128 Encryption
Dimension :
≤ 118 × 76 × 40mm (Air)
Weight :
≤ 350g (Air)
Description

50km UAV Video Transmitter HD Lightweight Wireless Data Link With AES128 Security Protection

1. Feature

  • 350 Grams Weight
  • Point to Multi-Point Mode
  • Dual Antenna MIMO Design
  • Up to 24Mbps Data Rate
  • 1.4G / 2.4GHz Frequency Range Optional
  • AES128 Security Protection
  • 50KM Air-to-Ground Transmission Distance

2. Specification

Wireless
Technology TDD-OFDM/MIMO/1T2R
Modulation QPSK/16QAM/64QAM
Data Rate 24Mbps@10MHz(Peak)
Frequency Range 1428~1448MHz(Standard)
2401~2481(Optional)
806~826Mhz(Optional)
Bandwidth 5Mhz/10MHz/20MHz
TX Power 33dBm ± 2
RX Sensitivity -99dBm@5MHz

System
Serial Port 1 TTL+1 RS232 + 1S.BUS
Video Port

1 Ethernet Port

1 ETH + 1 SDI/HDMI(Customized)
Security AES128 Encryption
Power

DC12V Power Supply

≤12W @ DC12V Power

Consumption(Air)

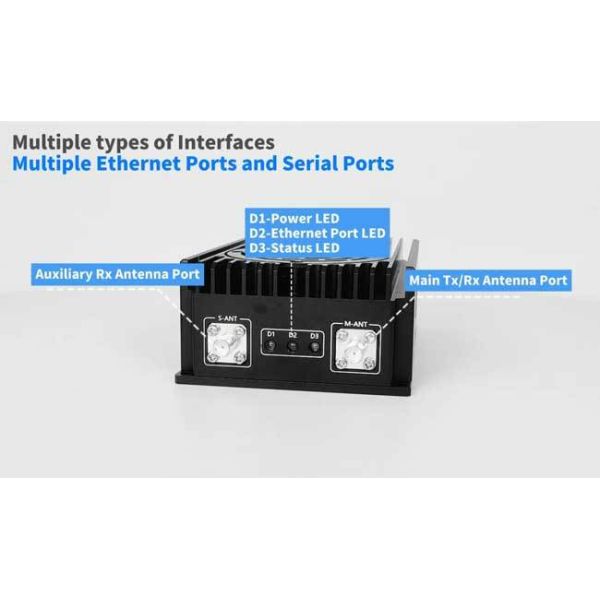

Interface
RF Antenna SMA*2
Serial Port Interface JST*2
S.BUS Interface JST*1
Video Port Interface

JST(ETH)*2 or

JST(ETH)*1+SDI/HDMI*1(Cus)
Power Input XT30

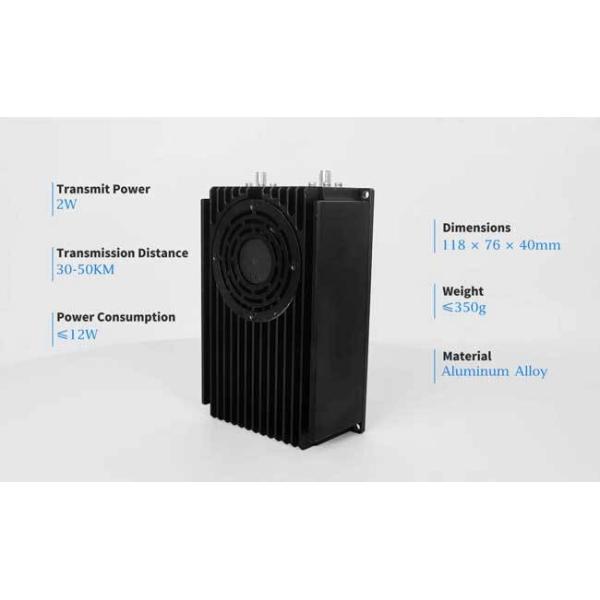

Physical
Dimension ≤118x76x40mm(Air)
Weight ≤350g(Air)

CD30Pro 50km UAV Video Transmitter HD Lightweight Wireless Data Link With AES128 Security Protection

CD30Pro 50km UAV Video Transmitter HD Lightweight Wireless Data Link With AES128 Security Protection

CD30Pro 50km UAV Video Transmitter HD Lightweight Wireless Data Link With AES128 Security Protection

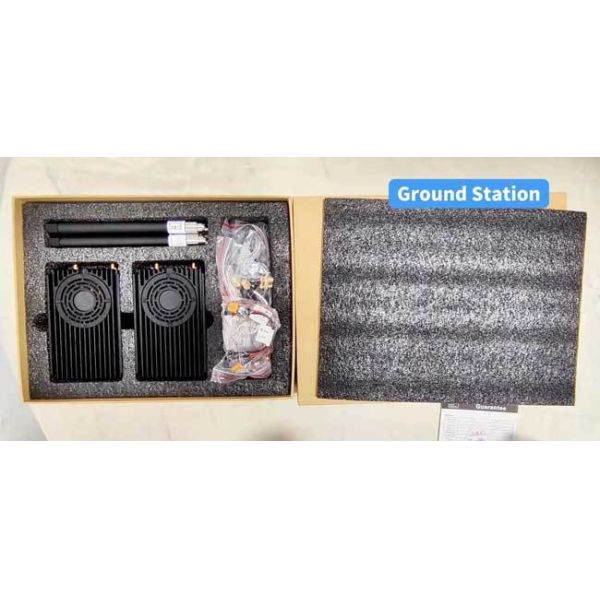

3. Accessories

OMNI Antenna for Air Unit × 2
OMNI Antenna for Ground Unit × 1
Directional Antenna for Ground Unit × 1
ETH Cable × 2 or ETH Cable × 1 + SDI/HDMI Cable × 1 (Customized)
Serial Cable × 2
S.BUS Cable × 1
XT30 Power Cable × 1
VTA-Manual (Manual Tracking Antenna System) × 1

4. Packing & Delivery

CD30Pro 50km UAV Video Transmitter HD Lightweight Wireless Data Link With AES128 Security Protection
