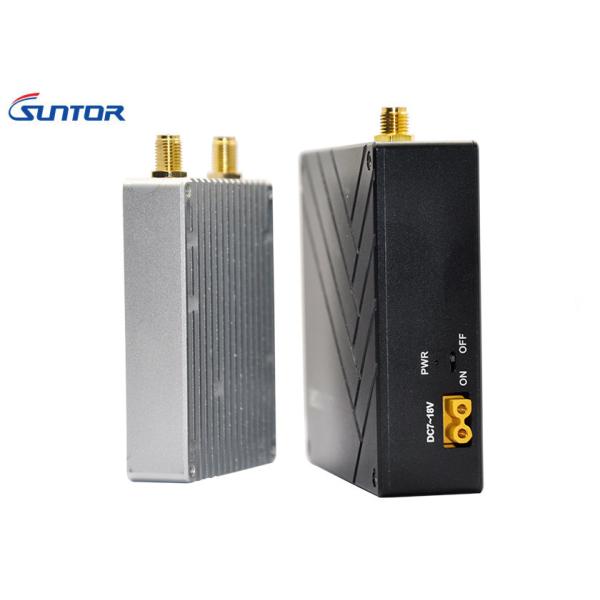

2.4GHz COFDM Wireless Transmitter
2.4GHz COFDM Wireless Transmitter
Specifications
Model Number :
ST20NPT
Place of Origin :
Shenzhen, China
Brand Name :
SUNTOR
Certification :
FCC, CE, RoHS
MOQ :
1 set
Price :
Negotiation
Packaging Details :
Plastic Box
Delivery Time :
7-15 days
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
1000 set/ month
Modulation :
TDD-COFDM
RF Transmitting Power :
2W
Duplex Data :
Support SBUS/PPM/TTL
Air to Ground Distance :
20km
Operating temperature :
-40 - +85°C
Sensitivity :
-100dbm~-90dbm
Power supply :
DC 7-18V
Net Weight :
Tx: 146g/ Rx: 68g
Description

2.4GHz COFDM Wireless Transmitter

2.4GHz 20km TDD - COFDM wireless transmitter video duplex data for IP camera

ST20NPT Specs.pdf

Introduction:
ST20NPT Integrating RC, MavLink, HD video, ethernet data all function into one link.
ST20NPT Suport two IP cameras
Specially for heavy lift VTOL uav.

Suntor drone video data links have three port: double ethernnet and serial port.
Main functions as belows:
1. Ethernet video input and output
2. Ethernet data dulplex transmission
3. Serial data from flight controller or RC
4. Support telemetry MavLink
5. Both video and data transmission range can up to 20km

Application:
ST20NPT wireless video transmitters are designed to withstand harsh environments and are ideal for Drones, UAS, UAV, UGV, , and other applications requiring efficient, high quality video/audio/data transmission in a compact, rugged package.

Parameter

Frequency2.4GHz (2.402-2.478GHz)
RF Transmitting Power33dBm(air to ground 18-22km)
Frequency Bandwidth2/4/6/8MHz
Antenna1T1R
Adjustment mode of bit rateSoftware adjustment
Communication Channel EncryptionWEP, WPA(PSK), WPA2(PSK), WPA+WPA2 (PSK), AES 125/256
Transmission Modepoint to point / point to multipoint
Start-up time< 30s
Two-way functionSupport video and duplex data simultaneously
DataSupport SBUS/PPM/TTL
Transmission Rate3-5Mbps
Sensitivity-100dbm@4Mhz, -95dbm@8Mhz
PowerDC 7-18V
Power ConsumptionTX: 6Watts
RX: 6Watts
TemperatureOperating temperature: -40 - +85°C
Storage temperature: -55 - +100°C
InterfacePower input interface × 1
Antenna interface × 2
RS232 Bidirectional Port × 1
Ethernet to USB / RJ45 on Windows × 1(TX), Ethernet Port x2(RX)
IndicatorRJ45 input/output indicator light
Transmitting and receiving indicator light
Transmitting and receiving indicator light
Power light
Appearance DesignCNC technology/ double aluminum alloy shell with waterproof design
SizeTX: 76*73*24mm/RX: 68×48x15mm
Net WeightTX: 146g
Rx: 68g
