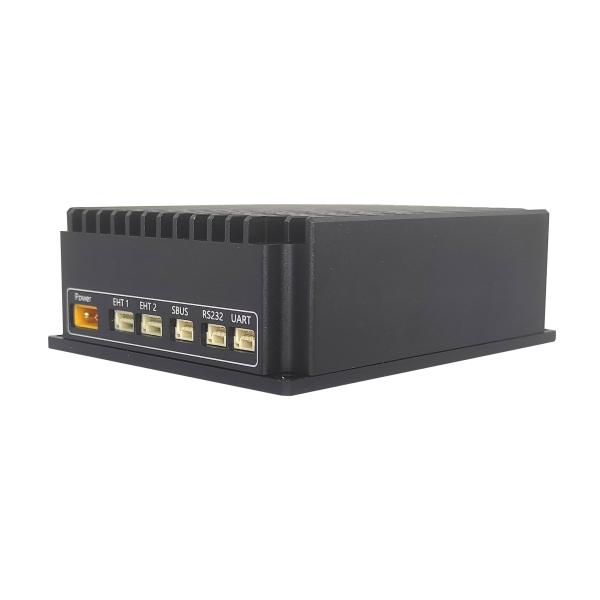

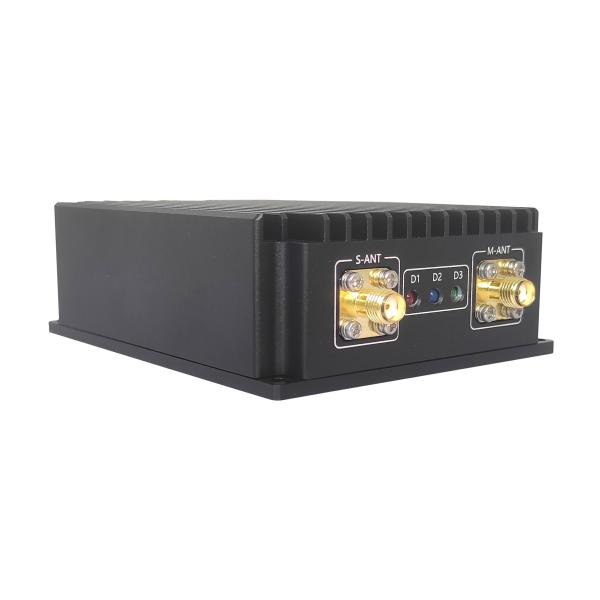

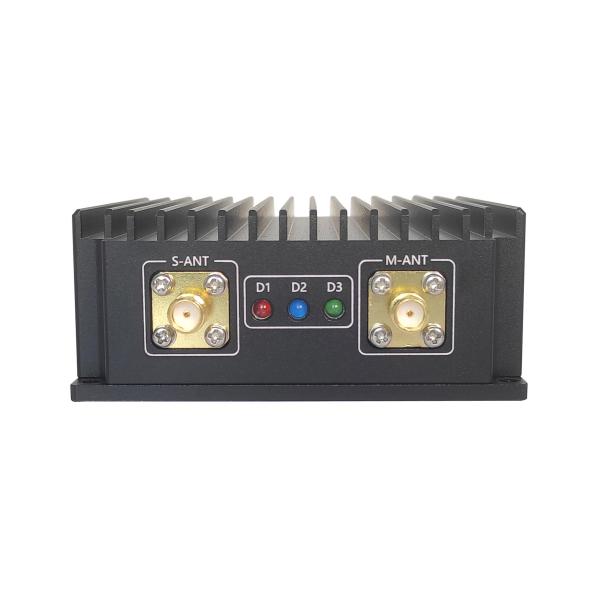

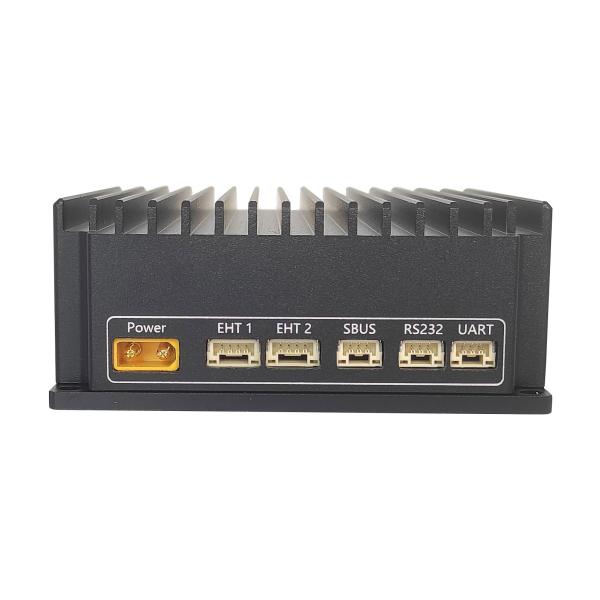

CD15Pro COFDM HD Transmitter for UAV & Drone Long-Range Video/Data Link
CD15Pro COFDM HD Transmitter for UAV & Drone Long-Range Video/Data Link
CD15Pro COFDM HD Transmitter for UAV & Drone Long-Range Video/Data Link
CD15Pro COFDM HD Transmitter for UAV & Drone Long-Range Video/Data Link
CD15Pro COFDM HD Transmitter for UAV & Drone Long-Range Video/Data Link
CD15Pro COFDM HD Transmitter for UAV & Drone Long-Range Video/Data Link
CD15Pro COFDM HD Transmitter for UAV & Drone Long-Range Video/Data Link
CD15Pro COFDM HD Transmitter for UAV & Drone Long-Range Video/Data Link
Specifications
Model Number :
CD15Pro
Place of Origin :
Shenzhen, China
Brand Name :
SUNTOR
MOQ :
1 set
Payment Terms :
T/T,Western Union,Paypal
Supply Ability :
1000 set/ month
Delivery Time :
7-15 days
Price :
Negotiation
Packaging Details :
Plastic Box
Technology :
TDD-OFDM / MIMO/1T2R
Encryption Type :
AES128
Frequency Options :
1.4GHz / 2.4GHz / 800MHz
Weight :
330g (Air Unit)
Antenna Type :
Dual SMA Antennas
Power Supply :
DC 12V–24V
Power Consumption :
≤ 6W (Air Unit)
Power Input :
XT30
Description

CD15Pro COFDM HD UAV Video Transmitter – Long-Range Secure Data Link for Drones

Product Description

The CD15Pro COFDM HD UAV Video Transmitter is designed for professional drone and UAV applications requiring stable, long-range, and secure video/data links. With a transmission distance of up to 20KM, AES128 encryption, and dual-antenna MIMO technology, it ensures uninterrupted, high-definition video streaming for aerial filming, search and rescue, public safety, and live broadcasting.

Key Features

  • COFDM HD Transmission – Delivers stable, high-definition video even in challenging environments.
  • Long-Range Performance – Up to 20KM air-to-ground transmission distance.
  • AES128 Encryption – Ensures secure video and data transfer.
  • MIMO Dual-Antenna Design – Improves signal stability and reduces interference.
  • Flexible Frequency Options – 1.4GHz / 2.4GHz / 800MHz frequency bands.
  • Lightweight & Compact – Only 330g for easy UAV integration.

​

Technical Specifications

Specification Details
Technology TDD-OFDM / MIMO / 1T2R
Modulation QPSK / 16QAM / 64QAM
Data Rate 24Mbps @ 10MHz
Frequency Range 1.4GHz / 2.4GHz / 800MHz
Tx Power 25dBm ± 2
Encryption AES128
Transmission Distance Up to 20KM
Weight ≤330g
Interfaces 2x ETH or 1x ETH + 1x SDI/HDMI (customized)

Applications

  • Aerial Filming & Photography – Capture stunning, stable footage for film, TV, and commercial use.
  • Search and Rescue (SAR) – Real-time video transmission for emergency teams.
  • Public Safety & Law Enforcement – Reliable communication for surveillance and tactical operations.
  • Live Broadcasting – Seamless live HD streaming from airborne platforms.
  • Mapping & Surveying – Accurate, real-time data delivery for industrial projects.
