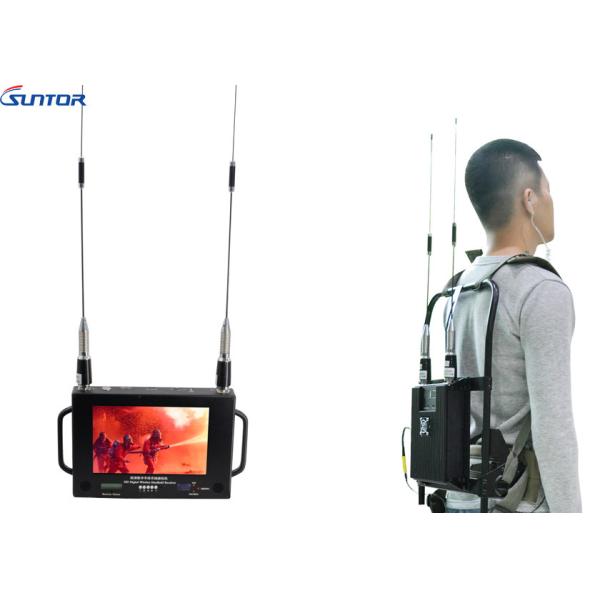

High Definition Multimedia Interface / Av COFDM Wireless Transmitter Backpack System With Digital LED Control Panel
High Definition Multimedia Interface / Av COFDM Wireless Transmitter Backpack System With Digital LED Control Panel
Specifications
Brand Name :
SUNTOR
Model Number :
ST9500DBH
Certification :
FCC, CE, RoHS
Place of Origin :
Shenzhen, China
MOQ :
1 set
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
1000 set/ month
Delivery Time :
7-15 days
Packaging Details :
Plastic Box
Price :
Negotiation
Modulation :
TDD-COFDM
Modulation Type :
QPSK(4QAM), 16QAM, 64QAM
Guard Interval :
1/4,1/8,1/16,1/32
Latency :
200MS
Transmission Range :
2-5 km (NLOS) ~ 15-30 km (LOS)
Video Input :
High Definition Multimedia Interface/AV
Video Compression :
H.264/MPEG-2
Working Voltage :
DC12V
Description

High Definition Multimedia Interface / Av Wireless Transmitter Backpack System With Digital LED Control Panel


Introduction

ST9500DBH wireless video transmitter,using the leading COFDM modulation technology to overcome the analog technology and conventional modulation technology's limit of multipath reflection and occlusion, it can be achieved in the non-line of sight (NLOS), high-speed moving and real-time Transmission with high-quality images, especially suitable for complex environments.


Features

  • 5-7Watt RF output configured by user
  • COFDM modulation,H.264 video compression.
  • Low delay time
  • 2/2.5MHz rf bandwidth for further distance project in 720P resolution
  • Alloy aluminum material of outer-case is good for better heat dissipation and anti-interface
  • AES128bits encryption ensure the safety of video.
  • User easy to operate/configure the parameters via the buttons


Specification:

Frequency 300-4400MHz(option)
RF output Power 5-8Watt(adjustable)
Voltage/current DC12V/3A
Modulation COFDM 2K QPSK
Constellation QPSK,16QAM,64QAM
Bandwidth 2/2.5/4/8MHz
Transfer rate up to 12Mbps automatically allocation
FEC 1/2, 2/3, 3/4, 5/6,7/8
Guard Interval 1/32, 1/16, 1/8, 1/4
Audio Input stereo left and right channels
AV Interface BNC
Video Compression H.264
Data encryption AES128/256bits
Flatness Full band≤2dB,8MHz≤0.5dB;
Carrier 2K,8K
Video Signal 1Vp-p@75Ω,NTSC/PAL adaptive
Video format PAL/NTSC(self-adaption)
Resolution 1280*720,720P
RF Interface N(F)
Case Material Aluminum alloy, rainproof
Work environment -30~70°C
Distance 3-5km NLOS in city for manpack
100km LOS for sky to ground
Size 200*130*60mm
Weight 1.5kg(net weight)
