30dBm UAV Video Data Link 1080P HD Wireless AV Transmission 200g Lightweight
30dBm UAV Video Data Link 1080P HD Wireless AV Transmission 200g Lightweight
30dBm UAV Video Data Link 1080P HD Wireless AV Transmission 200g Lightweight
30dBm UAV Video Data Link 1080P HD Wireless AV Transmission 200g Lightweight
30dBm UAV Video Data Link 1080P HD Wireless AV Transmission 200g Lightweight
30dBm UAV Video Data Link 1080P HD Wireless AV Transmission 200g Lightweight
30dBm UAV Video Data Link 1080P HD Wireless AV Transmission 200g Lightweight
30dBm UAV Video Data Link 1080P HD Wireless AV Transmission 200g Lightweight
Specifications
Brand Name :
Kimpok Technology / OEM
Model Number :
KP-HDT1W
Certification :
CE/FCC/ROHS
Place of Origin :
China
MOQ :
1 set
Price :
Negotiaiton
Payment Terms :
T/T, Western Union,PayPal
Supply Ability :
3,000pcs per month
Delivery Time :
3-7 days
Packaging Details :
export standard packing
Product name :
UAV video link
Resolution :
Max 1080*1920/60P
Output Power :
30dBm
Video port :
HDMI mini
encryption :
AES 256
Video output :
HDMI Mini; CVBS
Description

30dBm UAV Video Data Link 1080P HD Wireless AV Transmission 200g Lightweight​

HD UAV Video Transmitter Introduction:

KP-HDT1W COFDM transmitter is a new designed wireless mobile video transmission system with great features and stable performance. The highly integrated transmission system provided superior performance in LOS (line-of-sight) and NLOS (non line-of-sight) condition.

KP-HDT1W video transmitter is designed for secure, high quality video transmission in multipath environments such as metropolitan areas. It's a high efficiency transmitter design with up to 1000 mW RF output power and features such as full frequency band channelization, MPEG4/H.264 compression, narrow-band and video data encryption.

KP-HDT1W transmitter is designed to withstand harsh environments and are ideal for law enforcement, surveillance, UAV, UGV, military, and other applications requiring high quality video transmission in a compact, rugged package.

UAV video TX Parameters:

Power
Working Voltage DC12V
Working Current 2A
RF
Working Frequency 160MHz~860MHz
Output Power 30dBm
RF Bandwidth 2/4/6/8 MHz
Modulation COFDM
Serial Port
Data Half-duplex transparent data transmission(OSD UART)
Serial Port Config UART
System
Convolutional Encode ratio 1/2, 2/3, 3/4, 5/6, 7/8
Modulation QPSK/QAM16/QAM64
IFFT 2K/8K
Guard Interval 1/4, 1/8, 1/16, 1/32
HDMI
Version HDMI mini
Resolution Ratio Max 1080*1920/60P
Video Encoding H.264
CVBS
Video Encoding H.264
Video Input Format PAL/NTSC
Encryption
Encryption AES 256
Antenna
Omni Antenna SMA
Weight & Dimension
Weight 133g
Dimension 100*60*16mm

Features of UAV video link:

  1. AES encrypted video transmission
  2. Aluminum alloy casing with good shock resistance
  3. External digital frequency controller for users easy adjust on the spot
  4. Mobile video transmission in NLOS(NO LINE OF SIGHT) condition and environment
  5. Work frequency adjustable in appointed frequency range
  6. COFDM modulation and H.264 compression for stable and high quality audio and video signal
  7. Support HDMI signal input, video and audio signal input simultaneous
  8. Multiple bandwidth adjustable 2/4/6/8 MHz
  9. Video input PAL/NTSC optional

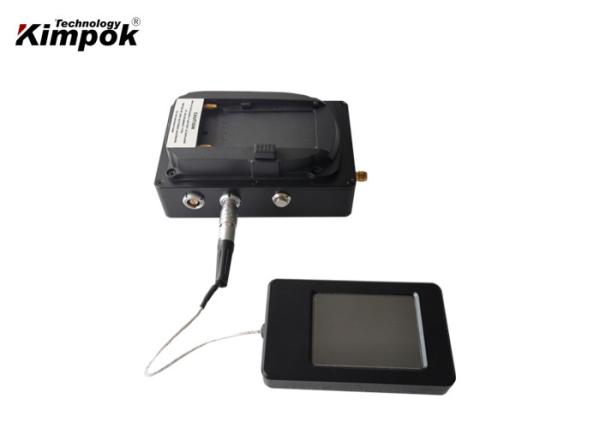

  10. Parameters adjustable: there is a frequency modulator to connect with TX and RX to change the bandwidth, frequency and so on.


30dBm UAV Video Data Link 1080P HD Wireless AV Transmission 200g Lightweight

30dBm UAV Video Data Link 1080P HD Wireless AV Transmission 200g Lightweight

30dBm UAV Video Data Link 1080P HD Wireless AV Transmission 200g Lightweight
