70km To100km Long Range Wireless Video Transmitter Ground Station For UAV Drone
70km To100km Long Range Wireless Video Transmitter Ground Station For UAV Drone
Specifications
Brand Name :
HOWMELLY
Model Number :
HMMAT03
Certification :
CE,FCC,ROHS
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000sets per month
Delivery Time :
5-15days
Packaging Details :
1 whole set strictly packed in paper carton or wooden case
frequency :
300MHz~5.8GHz (Adjustable)
Output power :
5W~8W (Adjustable)
Modulation :
COFDM 2K QPSK/TDS-OFDM
Video input :
HDMI or SDI;
Transmit distance :
3-5km in city 70-100km for UAV
Weight :
1kg
Description

70km to100km Long Range Wireless Video Transmitter Ground Station For UAV Drone

Product Description:
HMMAT03 manpack wireless video transmission equipment has adopted the current leading COFDM modulation technique which has the relatively narrow air bandwidth and strong capability of resistant of multi-path interference to overcome the difficulty caused by the multi-path reflection and barrier thus to realize shooting and transmitting real-time HD video none line of sight,specially suitable for the application in the complex environment.
The RF power of this model is 5-8W that can transmit 3-5km non line of sight in city environment and 70-100km from air to ground
thus it is ideal solution for military tactical, UAV mapping, argriculture,oil filed survenience etc.

Key Feature:
1. High quality H.264 digital video processing and coding
2. High resolution full HD picture 1080P(1920*1080)
3. Long power supply time,can continously work 4 hours.
4. Can stably transmitter video&audio signal under the condition of high-speed mobile and multipath interference.
5. Excellent anti-interference performance under complex electromagnetic condition.
6. One-way picture,one/two way voice,reverse control cloud deck function are available.
7. Strong transmitter capability NLOS.
8. Space diversity reception capability.
9. Small size,low consumption and easy for carry.

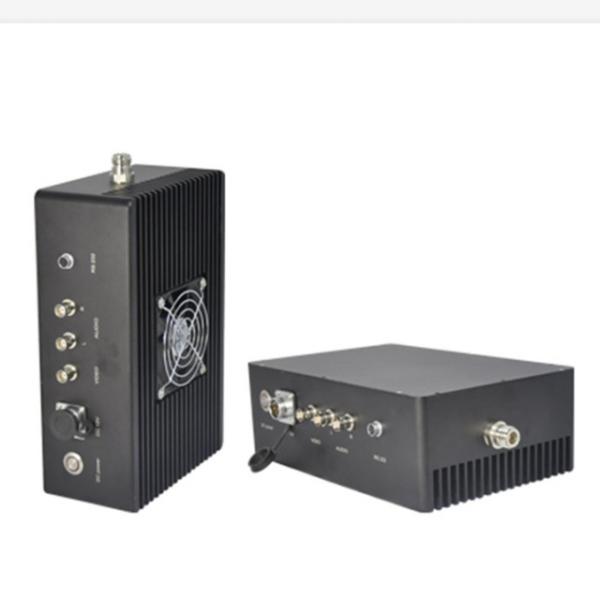

Transmitter Picture:
70km To100km Long Range Wireless Video Transmitter Ground Station For UAV Drone

Transmitter Parameter

General Part:
Work frequency: 300MHz~5.8GHz (Adjustable)
Output power: 5W~8W (Adjustable)
Modulation: COFDM 2K QPSK/TDS-OFDM
Channel bandwidth: 1.25/2/4/6/8MHz (Adjustable)
Encryption: AES/ABS(128bit)
Code stream 0.8Mbps~10Mbp
End to end delay: <40ms
Error rate: ≤10-6
FEC: Viterbi (1/2,2/3,3/4)
Guard interval: 1/32,1/16,1/8,1/4
Power Supply: DC10V~16V/2.0A
Transmit distance: Urban area:3-5 kilometer, 70-100km for UAV from air to ground
Audio&Video Part:
AV data format: H.264,MPEG-2,MPEG-4@ML 4:2:0
Video input: HDMI, SDi,AV
Audio input: Left and right channel
Video compression Adopt H.265,H.264,MPEG-2,MPEG-4
Resolution: 1080P(19208*1080)compatible with 720× 576@ transmit rate is 30fps.
Audio&Video: One way video,two way audio
Two way voice: Two way voice is optional
Others:
Antenna: Omnidirectional whip antenna
Battery: work 4 hours (Continuously)
Weight: 1kg
Size: 215mm×120mm×70mm(L × W ×H)
Work Temperature: Temperature:-30~70℃ Relative humidity:90%
Reserve Temperature: Temperature: -40~80℃ Relative humidity:90%

Our Service:

1. Lifelong maintainance

2. 24 hour technical support

3. Strong R&D capability; Customized project is welcomed

4. High quality product with competitive price,short delivery time and responsible after-sale service
