Full Spectrum CRI98 TunableWhite LED COB 12Watt 2700K-6000K LM-80 COB LED
Full Spectrum CRI98 TunableWhite LED COB 12Watt 2700K-6000K LM-80 COB LED
Full Spectrum CRI98 TunableWhite LED COB 12Watt 2700K-6000K LM-80 COB LED
Full Spectrum CRI98 TunableWhite LED COB 12Watt 2700K-6000K LM-80 COB LED
Specifications
Brand Name :
TYANSHINE
Model Number :
TX-1312SW08A-2760V39-03H98
Certification :
ISO9001, ISO14001
Place of Origin :
CN
MOQ :
100
Packaging Details :
In plastic tray
Current :
400mA
Voltage :
36-39V
Power :
12W
Color Temp. :
2700K-6500K
Efficiency :
100lm/W
CRI :
98
COB Size :
13.35*13.35mm
LES :
Diameter 8mm
Description

Full Spectrum CRI98 TunableWhite LED COB 12Watt 2700K-6000K LM-80 COB LED

Features of Bi-color White LED COB

  • Cross-distribution of LED chips in a circular LES to perform a better color-mixing through optics reflectors or Lenses, anti polarized light and anti color cast;
  • Adopting Eutectic bonding packaging technique with flip-chips, conductivity reach 120-160 W/m-k to enable a longer lifespan;
  • Variable CCT-tunning from 2700K-6500K, dimming from 0%-100%
  • Compatible with the housing / reflectors and Lenses / holders

Specification:

Item Code Color IF
(mA)		 VF
(V)

Power

(W)

 CCT (K) CRI
(Ra)		 Lumen
(lm)		 LES
(mm)
TX-1312SW08A-2760V39-03H98 W 400 36-39 12 5750-6300 98 800 Φ7.6
S 400 36-39 12 2620-2760 950

(W - White, S - WarmWhite) , Ta = 25℃

Full Spectrum:

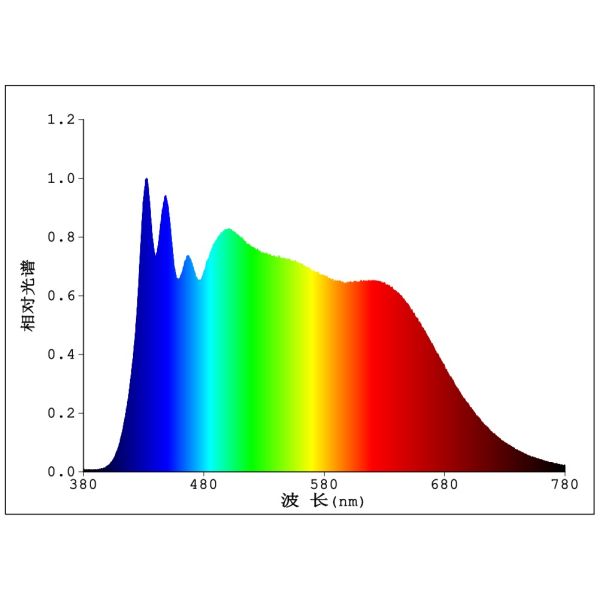

CCT=3000K

Full Spectrum CRI98 TunableWhite LED COB 12Watt 2700K-6000K LM-80 COB LED Full Spectrum CRI98 TunableWhite LED COB 12Watt 2700K-6000K LM-80 COB LED

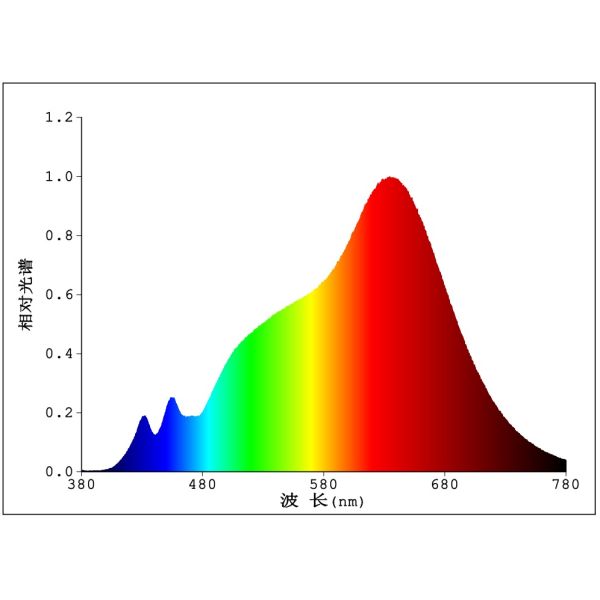

CCT=6000K

Full Spectrum CRI98 TunableWhite LED COB 12Watt 2700K-6000K LM-80 COB LED Full Spectrum CRI98 TunableWhite LED COB 12Watt 2700K-6000K LM-80 COB LED

Applications:

Commercial lighting / Residential lighting / Smart lighting

spot lights,down lights, ceiling lights,bulb lights or tracking lights ...

Photography lighting Fresnels lights
