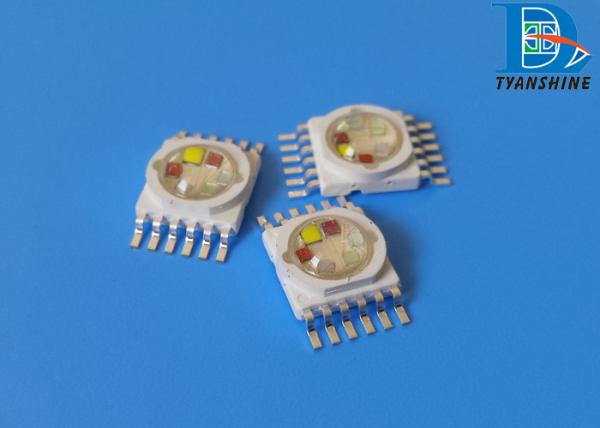

10 W High Power LED Diode , RGBWAP Multicolor Epiled Chip LEDs
10 W High Power LED Diode , RGBWAP Multicolor Epiled Chip LEDs
10 W High Power LED Diode , RGBWAP Multicolor Epiled Chip LEDs
10 W High Power LED Diode , RGBWAP Multicolor Epiled Chip LEDs
10 W High Power LED Diode , RGBWAP Multicolor Epiled Chip LEDs
10 W High Power LED Diode , RGBWAP Multicolor Epiled Chip LEDs
10 W High Power LED Diode , RGBWAP Multicolor Epiled Chip LEDs
10 W High Power LED Diode , RGBWAP Multicolor Epiled Chip LEDs
Specifications
Brand Name :
TYANSHINE
Model Number :
TX-BGRWPY10B120-001
Certification :
ISO9001:2008 SGS RoHS
Place of Origin :
CN
MOQ :
100pcs
Price :
Negotiation
Payment Terms :
EXW,FOB,CIF,CFR
Supply Ability :
1, 000, 000pcs/month
Delivery Time :
5-10 days
Packaging Details :
In plastic tube
LED Chip :
Epiled Cree Bridgelux
Color :
RGBWAP 6in1
Power :
10W
IF :
400mA
VF :
2.0-4V
Viewing Angle :
120°
Description

10 W High Power LED Diode , RGBWAP Multicolor Epiled Chip LEDs

Products’ Features:

  1. Higher stability
  2. Excellent color-mixing effect, smooth light emitting
  3. Widely usage, easy welding
  4. Short reaction time, high power & high light efficiency
  5. Multi-color, 4in1,5in1,6in1
  6. Top LED chips, patent package

Specifications:

Model Color
TX-BGRWPY10B120-001 RGBWAP / RGBWAI / RGBACI

[ R - Red, G - Green, B - Blue, W - White, A - Amber/Yellow, P - UV/Purple, I - Indigo, C - Cyan ]

Absolute Maximum Ratings at Ta=25℃

Parameter Symbol Value Unit
LED Junction Temperature Tj 150 ℃
Power Dissipation PD R 1040 mW
G 1400
B 1400
W 1400
P 1440
Y 1040
Continuous Forward Current IF 400 mA
ElectrostaticDischarge Threshoid ESD 2000 V

Characteristics at If=400mA ,Vr=5V (Ta=25°C)

Parameter Symbol Emitting Color Values Unit
Min. Typical Max.
Forward Voltage VF B 2.9 3.2 3.5 V
G 2.9 3.2 3.5
R 2.0 2.3 2.6
Wh 2.9 3.2 3.5
P / UV 3.0 3.3 3.6
Y / Amber 2.0 2.3 2.6
Luminous Flux φv B 25 35 - lm
G 95 115 -
R 55 70 -
W 120 145 -
P / UV 1 2 -
Y / Amber 60 70
Dominant Wavelength λd B 463 466 468 nm
G 520 523 526
R 618 622 625
P / UV 380 390 400
Y / Amber 588 592 595
Colour Temperature CCT White 7000 7500 8000 K
Viewing Angle 2θ1/2 - - 120 - Degree

Applications:

Stage lighting, LED Par lights, LED Moving-head lights

Entertainment lighting

Architectural lighting

Landscape lighting
