Integrated White LED Module , 100lm/W 5000K - 8000K Flood Lighting LEDs
Integrated White LED Module , 100lm/W 5000K - 8000K Flood Lighting LEDs
Specifications
Brand Name :
Tyanshine
Model Number :
TX-WS60C180-002
Certification :
SGS RoHS
Place of Origin :
CN
MOQ :
10pcs
Packaging Details :
In Tray
Power :
60W
Vf :
30-34v
If :
1A
Chip :
Epileds Epistar Bridgelux
CCT :
5600K/3200K
CRI :
90Ra
Description

Integrated White LED Module , 100lm/W 5000K - 8000K Flood Lighting LEDs

Features:

1, Color Temperature with 3200K / 5600K, an ideal LED Light source to replace Tungsten

2, High performance of CRI (Color Render Index) to enhance the real colors of the items

3, Customized for special color, package or power

Parameters:

Absolute Maximum Ratings at Ta=25℃

Parameter Symbol Value (Max.) Unit
LED Junction Temperature Tj 150 ℃
Power Dissipation PD W 34000 mW
S 34000
Peak Forward Current IFP 2000 mA
Continuous Forward Current IF 1000 mA
Electrostatic Discharge Threshoid ESD 2000 　
Operating Temperature Range Topr -40 ~ +70 ℃
Storage Temperature Range Tspr -40 ~ +100

Characteristics at If=2400mA (Ta=25°C):

Parameter Symbol Color Values Unit
Min. Typical Max.
Luminous Flux φv W 3150 3280 - lm
S 2850 2900 -
Viewing Angle at 50﹪IV 2θ1/2 - - 120 - Deg
Correlated Colour Temperature CCT W 5000 6500 8000 K
S 2700 3000 4000
Forward Voltage Vf W/S 30 32 34 V
Thermal Resistance Junction to Case RθJ-C - - 0.6 - K/W
Temperature Coefficient of Forward Voltage V△F/T - - -2 - mV/℃
Color rendering index Ra 90 CRI - 90 92 - Ra

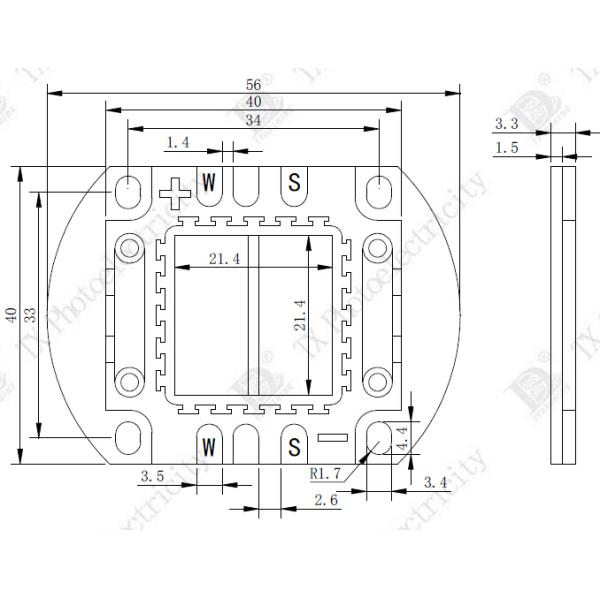

LED Array Package Dimensions:

Integrated White LED Module , 100lm/W 5000K - 8000K Flood Lighting LEDs

Applications of the High CRI White LED Arrays:

Photography Lighting,CINE Illumination for Ianiro,Cosmolight,Spotlight,LupoLux

General Lighitng

Commercial Illumination
