Smart Lighting RGBW LED 40Watt COB LED LES11mm 21V COB RGB+Tunable White
Smart Lighting RGBW LED 40Watt COB LED LES11mm 21V COB RGB+Tunable White
Specifications
Brand Name :
TYANSHINE
Model Number :
TX-1515RGBWS40C11V07-20H90
Certification :
ISO9001:2008 ROHS SGS
Place of Origin :
CN
MOQ :
10
Payment Terms :
Western Union, T/T, L/C
Packaging Details :
In tray
Color :
RGBW
Current :
500mA
Voltage :
19V - 23V
Power :
40 Watt
LES :
Φ11
Beam Angle :
120°
CRI :
90
Description

Smart Lighting RGBW LED 40Watt COB LED LES11mm 21V COB RGB+Tunable White

Key Features:

■ Excellent color-mixing, no color deviation, even color spot;

■ Cross-distribution of different colors, no polarized light;

■ High light quality, anti-glare

■ Fast thermal conductivity substrate, lower resistance

■ Compatible COB PKG size, easy to adapt accessories

Specifications:

Code Color

Vf

(V)

If

(mA)

RθJ-C

Φv

(lm)

 Power

LES

(mm)
TX-1515RGBWS40C11V07-20H90 RGB+TunableWhite 19-23V 500 0.75 K/W 1700-2000 40 11

Characteristics at If=1800mA (Ta=85°C)

Parameter Symbol Emitting
Color		 Values
Min. Typ. Max.
Luminous Flux φv R 370lm 430lm -
G 440lm 520lm -
B 95lm 110lm -
W 440lm 520lm -
S 360lm 420lm -
Dominant Wavelength λd R 625nm 630nm 635nm
G 513nm 518nm 523nm
B 445nm 450nm 455nm
Colour Temperature CCT W 6000K - 6500K
S 2670K - 2780K
Forward Voltage Vf R 19V 21V 23V
G 19V 21V 23V
B 19V 21V 23V
W/S 19V 21V 23V

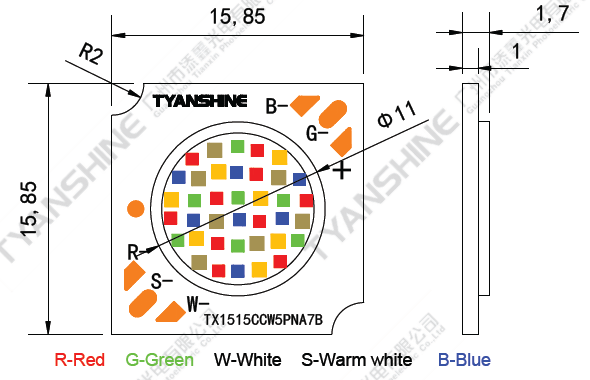

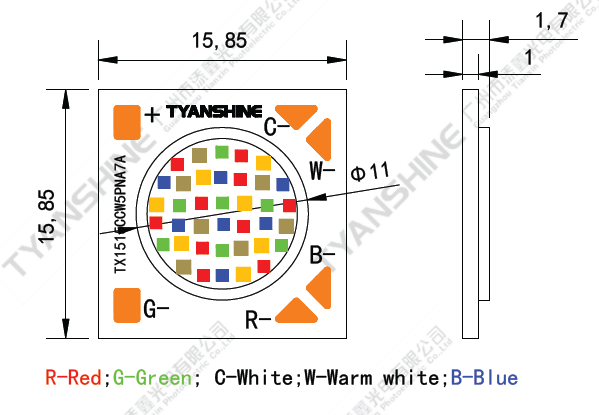

Dimsions:

Smart Lighting RGBW LED 40Watt COB LED LES11mm 21V COB RGB+Tunable White

Smart Lighting RGBW LED 40Watt COB LED LES11mm 21V COB RGB+Tunable White

Applications:

Entertainment lighting, Projection lights

Architectural lighting

Medical lighting

Event lighting

Stage lighting Projection

Fiber optic lighting
