Power Density 1000W LED Module High CRI95 TunableWhite Multi-Chip COB LED Engine
Power Density 1000W LED Module High CRI95 TunableWhite Multi-Chip COB LED Engine
Power Density 1000W LED Module High CRI95 TunableWhite Multi-Chip COB LED Engine
Power Density 1000W LED Module High CRI95 TunableWhite Multi-Chip COB LED Engine
Specifications
Brand Name :
TYANSHINE
Model Number :
TX-90100
Certification :
ISO9001:2008 ROHS
Place of Origin :
CN
MOQ :
10pcs
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10,000pcs/week
Delivery Time :
5-10 days
Packaging Details :
In Tray
Power :
1000W / 1500W
Colour :
White & Tunable White
Substrate :
Copper PCB & Ceramic
Voltage :
36V
CRI :
90 / 95
LES :
21mm
Description

Power Density 1000W LED Module High CRI95 TunableWhite Multi-Chip COB LED Engine

Power Density 1000W LED Module High CRI95 TunableWhite Multi-Chip COB LED Engine

Features:

1, Small LES, 5W/mm²

2, Eutectic flip-chip bonding technique

3, Higher Forward Voltage, Lower Forward Current,

4, Average efficiency upto 40lm/W @Tj=85℃ with full power

5, Excellent effect of color-mixing for 3 Colors or 4 Colors LEDs light source

6, Copper MCPCB, high thermal conductivity

Specifications:

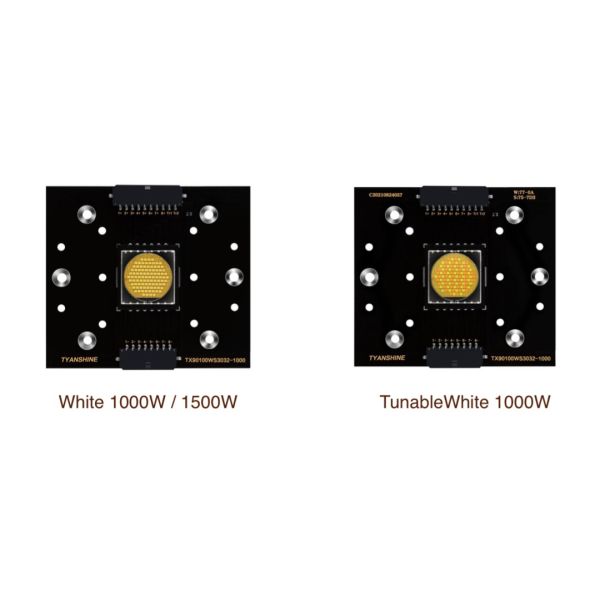

White Version 1000Watt & 1500Watt

Power Vf (V) If (A)

CCT(K)

 φv(lm) CRI LES(mm)

1000W

 36-41V 3.5A * 8 7000-9500K 11000-14000 * 8 70/80

20.7
36-41V 3.5A * 8 6000-7000K 6200-7500 * 8 90
1500W 44-50V 3.0A * 10 6000-6500K 54000-60500 * 2 80 25

Tunable White Version 500W+500W CRI95

Power Vf (V) If (A) CCT(K) φv(lm) CRI LES(mm)

TunableWhite

500W+500W

 36-41V 3.5A * 4 6700-7300K 7400-9000 * 4 95 20.7
36-41V 3.5A * 4 2670-2740K 4400-5500 * 4 95

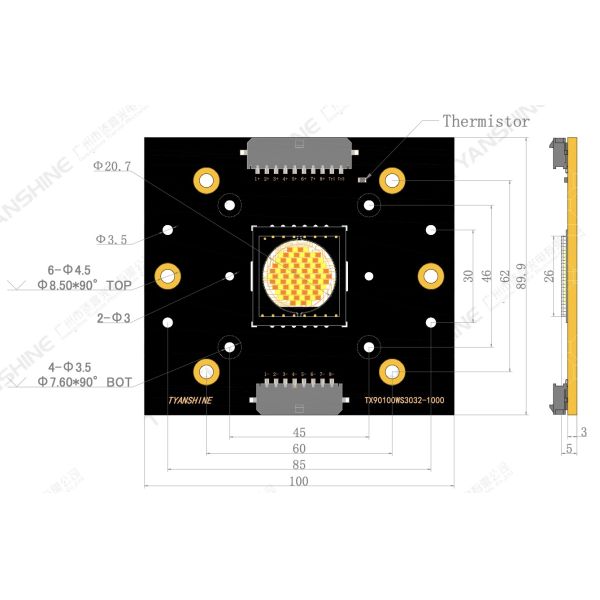

Dimensions:

Power Density 1000W LED Module High CRI95 TunableWhite Multi-Chip COB LED Engine

Applications:

• Entertainment
• Architectural Lighting
• Medical Lighting
• Spot Lighting
• Fiber Coupled Illumination
• Displays and Projection
