Studio Lighting Daylight 5600K 300W LED COB Tungsten 3200K CRI95 450W LED Module
Studio Lighting Daylight 5600K 300W LED COB Tungsten 3200K CRI95 450W LED Module
Studio Lighting Daylight 5600K 300W LED COB Tungsten 3200K CRI95 450W LED Module
Studio Lighting Daylight 5600K 300W LED COB Tungsten 3200K CRI95 450W LED Module
Studio Lighting Daylight 5600K 300W LED COB Tungsten 3200K CRI95 450W LED Module
Studio Lighting Daylight 5600K 300W LED COB Tungsten 3200K CRI95 450W LED Module
Studio Lighting Daylight 5600K 300W LED COB Tungsten 3200K CRI95 450W LED Module
Studio Lighting Daylight 5600K 300W LED COB Tungsten 3200K CRI95 450W LED Module
Specifications
Brand Name :
TYANSHINE
Model Number :
TX-5266W
Certification :
SGS RoHS
Place of Origin :
CN
MOQ :
10
Price :
USD
Payment Terms :
Western Union, L/C, T/T, Western Union
Supply Ability :
10, 000pcs/month
Packaging Details :
In Tray
Colour :
5600K / 3200K
Power :
300W / 450W
Substrate: :
Copper PCB & Ceramic
Voltage :
36V
CRI :
95

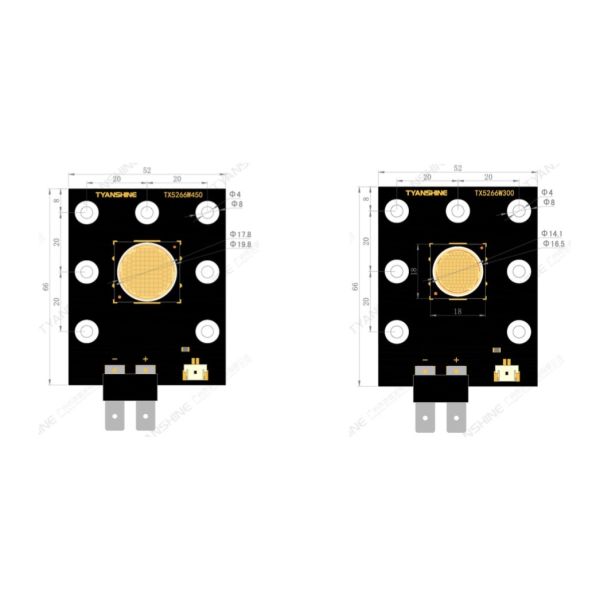

Size :
52x66mm
Description

Studio Lighting Daylight 5600K 300W LED COB Tungsten 3200K CRI95 450W LED Module

Studio Lighting Daylight 5600K 300W LED COB Tungsten 3200K CRI95 450W LED Module

Products’ Features:

1, Small LES, 5W/mm² , High Power and high light density for spot lighting,far distance

projection illumination

2, The latest Eutectic Flip-chip bonding with Cree Chips, Thermoelectric solution, fast heat-conductivity

between LEDs and MCPCB substrate

3, Unique Parallel and Serial connection of LED design, Lower Forward Current result in Lower heat-emission to enable longer lifespan

4, Average efficiency upto 40lm/W @Tj=85℃ with full power

Specifications:

Daylight / Tungsten White 300Watt

Power Vf (V) If (A) CCT(K) φv(lm) CRI LES(mm)
300W 32-36V 10A Daylight 5600K 22000-26500 95 14.1
32-36V 10A Tungsten 3200K 20000-24000 95
32-36V 10A CoolWhite 6500-8500K 30000-37000 70

Daylight / Tungsten White 450Watt

Power Vf (V) If (A) CCT(K) φv(lm) CRI LES(mm)
450W 32-36V 13A Daylight 5600K 30000-32500 95 17.8
32-36V 13A Tungsten 3200K 25000-28000 95
32-36V 13A CoolWhite 7000-8000K 52000-62000 70

Applications:

  • Entertainment spot/wash lighting
  • Architectural spot/wash lighting
  • Fiber coupled illumination
  • Effect lighting
  • Commercial LOGO Projection illumination
  • Stage lighting Projection
