Specifications
Brand Name :
JH
Model Number :
800W
Certification :
ISO9001:2008 ROHS
Place of Origin :
CN
MOQ :
10pcs
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10,000pcs/week
Delivery Time :
5-10 days
Packaging Details :
In Tray
Color :
White
Power :
800W
PCB :
Copper
LES :
diameter 55mm
Open Hole :
20mm
Focal Distance :
50mm
Description

Stage Lighting White 800Watt 30V LED Engine Gobo Beam Light 8500K LED Module

Stage Lighting White 800Watt 30V LED Engine Gobo Beam Light 8500K LED Module

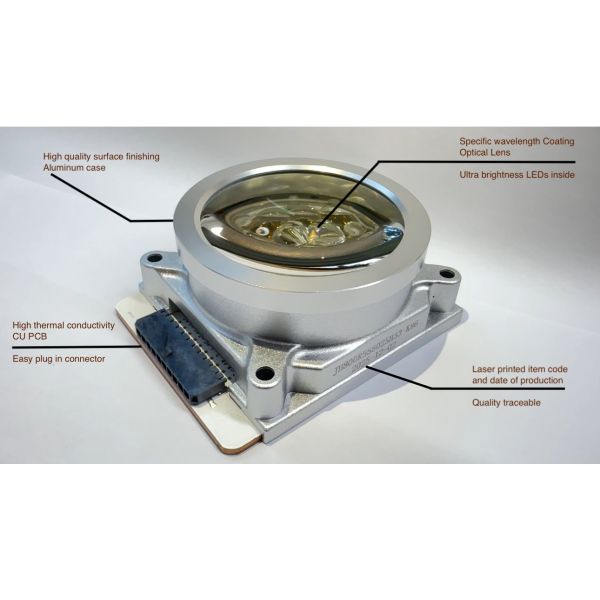

Technical background:

Integrating the latest advanced high-power LED with a dedicated heat dissipation substrate design;

Possessing an excellent heat dissipation condition to allow long-term use at full power;

Featuring high brightness, compact size, and excellent thermal management structure;

Using specific wavelength coating to maximize optical efficiency.

Key Features:

1, Well selected high brintness and stablility Ceramic based LEDs;

2, Small aperture size and ultra-narrow emission angle;

3, Optical alignment assembly process ensures product consistency;

4, Adopting the advanced packaging process to ensures an excellent heat dissipation efficiency;

5, Comparing with peer products, it can maximize the use of limit power and the utilization of maximum luminous efficiency.

Specifications:

Recommended Typical conditions:

Item Value Unit
Forward Current 6.2 A

Working Temperature

(NTC thermistor value:1688Ω / 80°C)

 ≤80​ °C
Lifetime ＞20000 H

Extreme Using conditons:

Item Value Unit
Min. forward current 10 μA
Max. forward current 6.8 A

Peak surge current

(Instantaneous time ≤ 10μs; duty cycle ≤ 90%;

ambient temperature ≤ 80℃)

 8 A

NTC Max. Working Temperature

(NTC thermistor value:1452Ω / 85°C)

 85 °C
Storage Temperature minus 40 - 85 °C

Optical Data:

ITEM Value Unit
Related Color Temperature Typ. CCT 8500 K
Min. 7600
Max. /
Lumen Output Typ. Φv 48800 lm
Min. 44700
Max.
Colour Rendering Index Typ. Ra 73
Min. 68
Max. 90

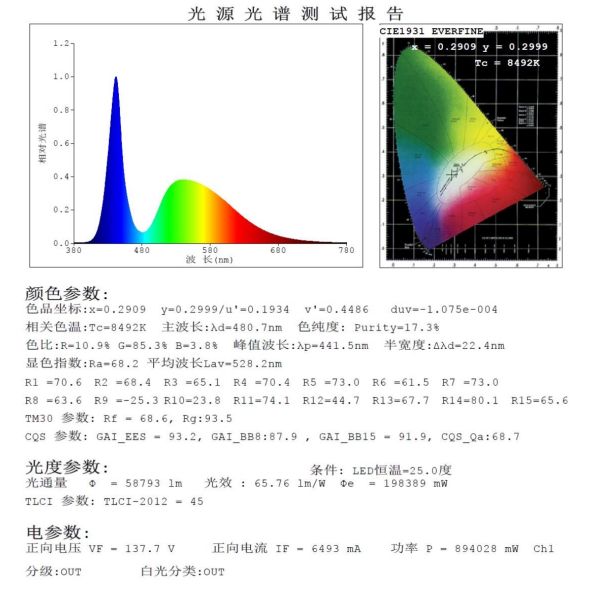

Spectrum Testing Results:

Stage Lighting White 800Watt 30V LED Engine Gobo Beam Light 8500K LED Module

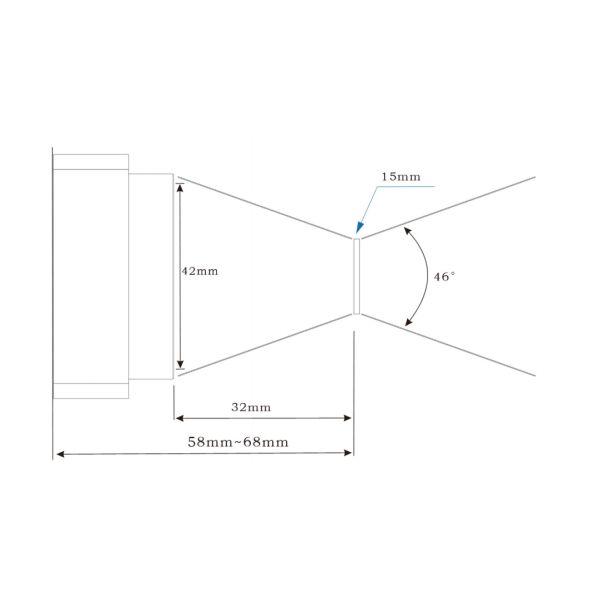

Optical path diagram:

Stage Lighting White 800Watt 30V LED Engine Gobo Beam Light 8500K LED Module

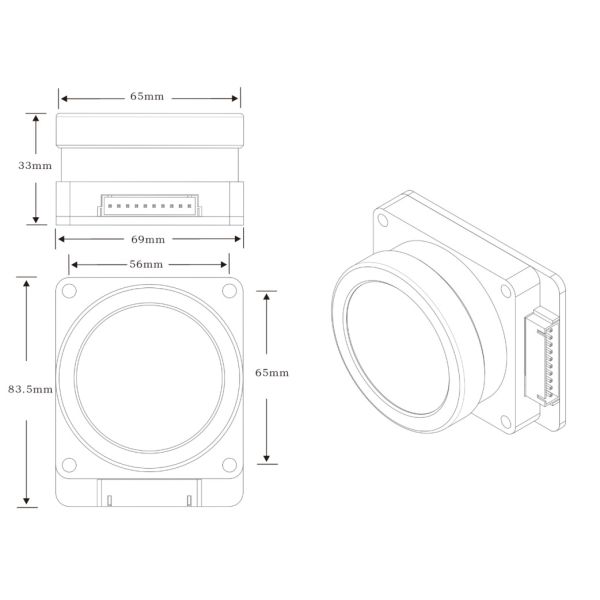

Dimensions:

Stage Lighting White 800Watt 30V LED Engine Gobo Beam Light 8500K LED Module

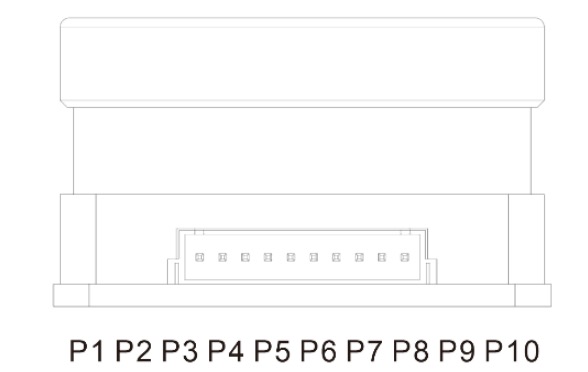

Pin Definition:

Stage Lighting White 800Watt 30V LED Engine Gobo Beam Light 8500K LED Module

PIN P1 P2 P3 P4 P5 P6 P7 P8 P9 P10
Definition W1+ W1+ W1- W1- W2+ W2+ W2- W2- NTC NTC
Value 30～34V/(6.5A) 33～37V/(6.5A) 1.4521K/85℃

Applications:

• Stage Lighting
• Architectural Lighting
• Medical Lighting
• Gobo Beam Lighting
• Fiber Coupled Illumination
• Displays and Projection
