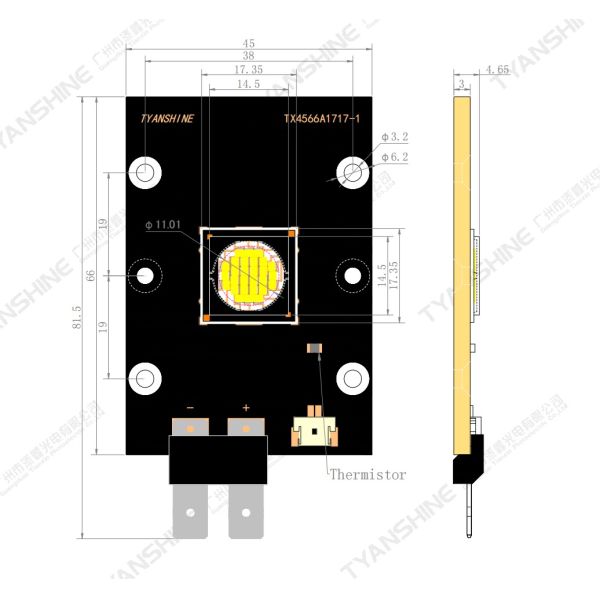

Studio Lighting CRI95 300W LED 42V Daylight 5600K COB LED Module
Studio Lighting CRI95 300W LED 42V Daylight 5600K COB LED Module
Studio Lighting CRI95 300W LED 42V Daylight 5600K COB LED Module
Studio Lighting CRI95 300W LED 42V Daylight 5600K COB LED Module
Specifications
Brand Name :
TYANSHINE
Model Number :
TX-4566W
Certification :
RoHS SGS
Place of Origin :
CN
MOQ :
10pcs
Payment Terms :
Western Union, T/T, L/C,PayPal
Packaging Details :
In plastic Tray
CCT :
3200K / 5600K / 7500K
Power :
300W / 400W
Voltage :
42V
Current :
8A
CRI :
95 / 70
LES :
11mm
Description

Studio Lighting CRI95 300W LED 42V Daylight 5600K COB LED Module

Studio Lighting CRI95 300W LED 42V Daylight 5600K COB LED Module

Features of the White LED:

1, Small LES, 5W/mm² , high brightness and light density. To generate strong light beam used for

Moving head lights.

2, Eutectic packages technique,compact light source, fast heat-conductivity, low thermal resistance

3, Special Parallel and Serial connection,1/4 current for the same power compared with Luminus CBT-90;

4, Average efficiency upto 40lm/W @Tj=85℃ with full power;

5, Multi chip on board technology, using 3mm Copper substrate to absorb heat immediately.

Specifications:

Power Vf (V) If (A) CCT(K) φv(lm) CRI LES(mm)
300W 40-44V 8A Daylight 5600K 16200-22000 95 11
300W 40-44V 8A Tungsten 3200K 10800-14000 95
400W 41-45V 9.2A CoolWhite 7000-8500K 32500-39500 70

Applications:

  • Entertainment lighting, Projection lights, Moving-Heads
  • Architectural lighting
  • Medical lighting
  • Event lighting
  • Stage lighting Projection
  • Fiber optic lighting
