Smart Lighting 500mA RGBW LED 70W COB LED LES12mm 36V LED COB RGBW
Smart Lighting 500mA RGBW LED 70W COB LED LES12mm 36V LED COB RGBW
Specifications
Brand Name :
TYANSHINE
Model Number :
TX-1818RGBW30FC120-CUHCNG-01
Certification :
ISO9001:2008 ROHS SGS
Place of Origin :
CN
MOQ :
10
Payment Terms :
Western Union, T/T, L/C
Packaging Details :
In tray
Color :
RGBW
Current :
500mA
Voltage :
36V
Power :
70W
LES :
Φ12mm
CRI :
90+

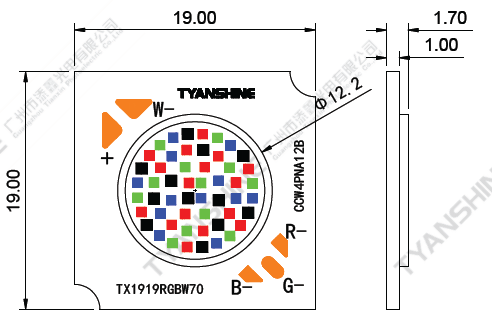

Dimension :
19 x 19 mm
Description

Smart Lighting 400mA RGBW LED 70W COB LED LES12mm 36V LED COB RGBW

Key Features:

■ Excellent color-mixing, no color deviation, even color spot;

■ Cross-distribution of different colors, no polarized light;

■ High light quality, anti-glare

■ Fast thermal conductivity substrate, lower resistance

■ Compatible COB PKG size, easy to adapt accessories

Specifications:

Code Color

Vf

(V)

If

(mA)

CRI

CCT

 Power

LES

(mm)
TX-1919RGBW70C12V12-02H90 RGBW 36V 500 90+ 6000K 70W

Φ12mm

Characteristics at If=450mA (Ta=25°C)

Parameter Symbol Emitting
Color		 Values
Min. Typ. Max.
Luminous Flux φv R 550lm 700lm -
G 920lm 1160lm -
B 230lm 290lm -
W 1020lm 1200lm -
Dominant Wavelength λd R 620nm 625nm 630nm
G 522nm 527nm 532nm
B 450nm 455nm 460nm
Colour Temperature CCT W 5500K - 6000K
Forward Voltage Vf R 31V 33V 36V
G 33V 36V 39V
B 33V 36V 39V
W 33V 36V 39V

Smart Lighting 500mA RGBW LED 70W COB LED LES12mm 36V LED COB RGBW

Applications:

Entertainment lighting,

Architectural lighting

Smart lighting

Event lighting

Commercial Lighting
