Smart Lighting 400mA RGBW LED 40W COB LED LES11mm 21V LED COB RGBW
Smart Lighting 400mA RGBW LED 40W COB LED LES11mm 21V LED COB RGBW
Specifications
Brand Name :
TYANSHINE
Model Number :
TX-1515RGBW40C11V07-20H90
Certification :
ISO9001:2008 ROHS SGS
Place of Origin :
CN
MOQ :
10
Payment Terms :
Western Union, T/T, L/C
Packaging Details :
In tray
Color-mixing :
RGBW
Forward Current :
400mA
Forward Voltage :
21V
Power :
40W
LES :
Φ11

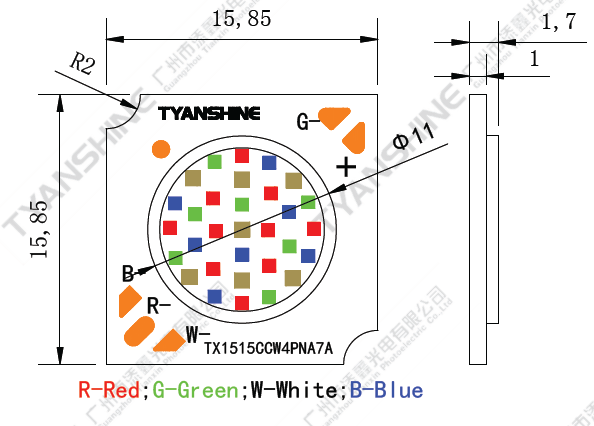

COB Size :
15.85 * 15.85mm
CRI :
90
Description

Smart Lighting 400mA RGBW LED 40W COB LED LES11mm 21V LED COB RGBW

Key Features:

■ Excellent color-mixing, no color deviation, even color spot;

■ Cross-distribution of different colors, no polarized light;

■ High light quality, anti-glare

■ Fast thermal conductivity substrate, lower resistance

■ Compatible COB PKG size, easy to adapt accessories

Specifications:

Code Color

Vf

(V)

If

(mA)

CRI

CCT

 Power

LES

(mm)
TX-1515RGBW40C11V07-20H90 RGBW 19-23V 400 90+ 4000K / 6500K 40W 11

Characteristics at If=400mA (Ta=25°C)

Parameter Symbol Emitting
Color		 Values
Min. Typ. Max.
Luminous Flux φv R 420lm 490lm -
G 500lm 600lm -
B 100lm 120lm -
W 500lm 600lm -
Dominant Wavelength λd R 625nm 630nm 635nm
G 512nm 517nm 522nm
B 445nm 450nm 455nm
Colour Temperature CCT W 3900-4200K, 6000-6500K
Forward Voltage Vf R 19V 21V 23V
G 19V 21V 23V
B 19V 21V 23V
W 19V 21V 23V

Smart Lighting 400mA RGBW LED 40W COB LED LES11mm 21V LED COB RGBW

Applications:

Entertainment lighting, Projection lights

Architectural lighting

Medical lighting

Event lighting

Stage lighting Projection

Fiber optic lighting
