Smart Lighting 700mA RGBW LED 60W COB LED LES16mm 36V COB RGB+Tunable White
Smart Lighting 700mA RGBW LED 60W COB LED LES16mm 36V COB RGB+Tunable White
Specifications
Brand Name :
TYANSHINE
Model Number :
TX-1919RGBWS60C16V12-20H90
Certification :
ISO9001:2008 ROHS SGS
Place of Origin :
CN
MOQ :
10
Payment Terms :
Western Union, T/T, L/C
Packaging Details :
In tray
Color-mixing :
RGBW
Forward Current :
700mA
Forward Voltage :
35-37V
Power :
60W
LES :
Φ16
Dimension :
19 * 19mm
CRI :
90
Description

Smart Lighting 700mA RGBW LED 60W COB LED LES11mm 36V COB RGB+Tunable White

Key Features:

■ Excellent color-mixing, no color deviation, even color spot;

■ Cross-distribution of different colors, no polarized light;

■ High light quality, anti-glare

■ Fast thermal conductivity substrate, lower resistance

■ Compatible COB PKG size, easy to adapt accessories

Specifications:

Code Color

Vf

(V)

If

(mA)

 Power

LES

(mm)
TX-1919RGBWS60C16V12-20H90 RGB+TunableWhite 36V 700 60 16

Characteristics at If=1800mA (Ta=85°C)

Parameter Symbol Emitting
Color		 Values
Min. Typ. Max.
Luminous Flux φv R 650lm 760lm -
G 760lm 900lm -
B 160lm 190lm -
W 760lm 900lm -
S 640lm 750lm -
Dominant Wavelength λd R 620nm 625nm 635nm
G 512nm 517nm 522nm
B 445nm 450nm 455nm
Colour Temperature CCT W 6000K - 6500K
S 2670K - 2780K
Forward Voltage Vf R 33V 35V 39V
G 33V 36V 39V
B 33V 36V 39V
W/S 33V 36V 39V

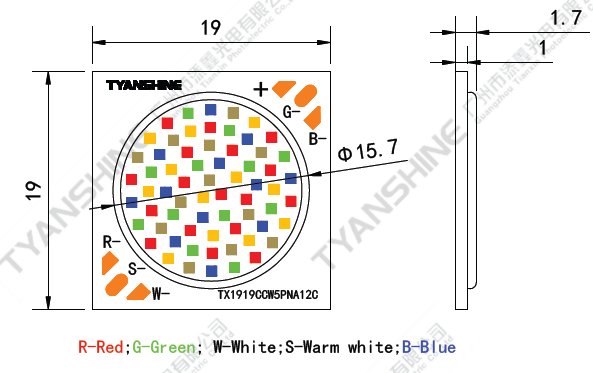

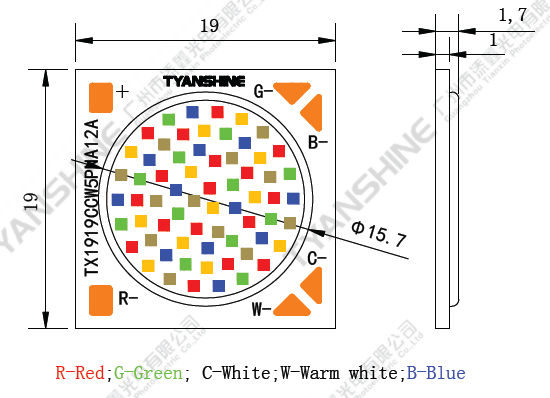

Dimsions:

Smart Lighting 700mA RGBW LED 60W COB LED LES16mm 36V COB RGB+Tunable White

Smart Lighting 700mA RGBW LED 60W COB LED LES16mm 36V COB RGB+Tunable White

Applications:

Entertainment lighting, Projection lights

Architectural lighting

Medical lighting

Event lighting

Stage lighting Projection

Fiber optic lighting
