5M 3000K 24V IP20 Flexible Light Strips 320 Pcs LED Per Meter
5M 3000K 24V IP20 Flexible Light Strips 320 Pcs LED Per Meter
Specifications
Brand Name :
WEERSOM
Model Number :
WES-FCOB-320
Certification :
CE, ROHS
Place of Origin :
Guangdong, China
MOQ :
5 meters
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
800,000 meters per month
Delivery Time :
8-10 work days
Packaging Details :
5 meters/reel, Antistactics bag
Product name :
COB led strip
LED Qty :
320 pcs per meter
Cri (ra>) :
90
Lamp luminous flux(lm) :
110 lm/W
PCB Color :
White
Working lifetime(hour) :
50000
Description

5M 3000K 24V IP20 Flexible Light Strips 320 Pcs LED Per Meter

COB LED STRIPS 5M 9.6W/M 3000K 24V IP20 320LED


Product Introduction for COB led strip

COB LED Strip Light is designed directly packing LED Chips on board of Flexible PCB by iLed which doesn't have frame, don't need SMT and also not Reflow Soldering.Ultra-thin, CRI90 and Dotless provide soft linear lighting and makes it is better replacing traditional Neon Light. This enables the strip to have advantages over traditional strips:

  • Consistent and Uniform Lights with No Hot Spots on White Strips
  • Brighter Than Traditional Strips at up to 500 Lumens per Foot
  • Flexible and Field Cuttable with Cut Points Every 50mm
  • Easily Dimmable
  • Daisy Chain Two Strips Together for a Total of 32 Feet Without Repowering

Parameters

Part number

WES-FCOB-320

 WES-FCOB-480
LED Quantity

320 pcs/meter

 480 pcs/meter
PCB width

8mm/10mm

 6mm/8mm/10mm
Color temperature (CCT)

2700K 3000K
4000K 6000K
Red, Green, Blue, OEM

2700K 3000K
4000K 6000K
Red, Green, Blue, OEM
RA

90 (80 optional)

 90 (80 optional)
Wattage

8mm 12V(8W) 24V(10W)
10mm 12V(10W) 24V(10W)

6mm 12V(6W) 24V(8W)
8mm 12V(8W) 24V(10W)
10mm 12V(10W) 24V(14W)

Cutable Length

50mm

 50mm
IP Rate

IP20/IP65/IP67

 IP20/IP65/IP67


Features

  • Excellent homogenous light, without visible light points thanks to COB technology

  • Great design freedom thanks to flexibility and cuttability of module

  • Easy mounting on many smooth surfaces thanks to self-adhesive tape at the back

  • Simple connection thanks to integrated cables on both sides

  • Maximum flexibility due to large range of accessories

  • Easy installation, no tools required for connection


Application

Widely used in buildings (interior and exterior decoration) bridge road garden courtyard floor ceiling furniture car pond underwater advertising signs on the decoration and lighting. Especially replacing SMD LED Strip Light.

Product Photo

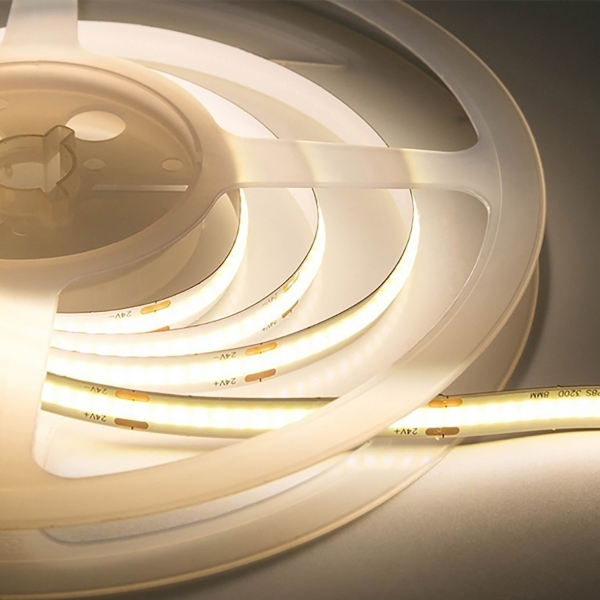

5M 3000K 24V IP20 Flexible Light Strips 320 Pcs LED Per Meter
