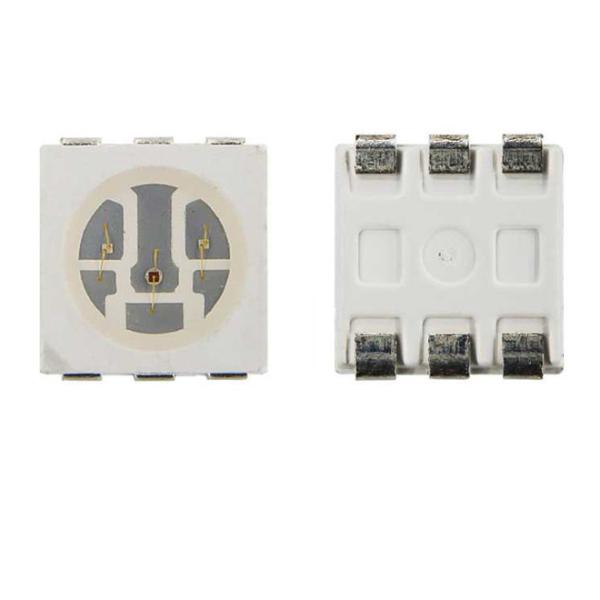

High Brightness P943 Led Chip Code 5050 Rgb Led Chip 18mA Diode
High Brightness P943 Led Chip Code 5050 Rgb Led Chip 18mA Diode
Specifications
Model Number :
WES-5050RGB LED
Certification :
CE, ROHS
Place of Origin :
Guangdong, China
Payment Terms :
L/C, T/T
Supply Ability :
10,000,000 pcs per month
Delivery Time :
8~10 work days
Packaging Details :
1000 pcs/reel, antistactics bag
Brand Name :
WEERSOM
Type :
SMD LED CHIP
Wire :
99.99% Pure gold
Working lifetime(hour) :
50000
Working temperature(℃) :
-20 - 40
Led light source :
Epistar SMD5050 led
Application :
LANDSCAPE,Decorative Lighting,Theme Park,outdoor
Description

High Brightness Rgb SMD LED Chip 5050 With Built In IC Led Diode

IC Introduction

  • P943 is a kind of full color light source LED drive chip,using CMOS technology, supply 3 channel constant current drive and 256 gray modulated output.
  • Using double line transferring (DATA1 and DATA2), transferring from breakpoint, reconstruction inside, can improve transferring distance.
  • Used in driver display light change, different letter change, colorful cartoon picture. Work under offline or online according to different controller and different request from customer.
  • This product with the advantage of excellent performance and viewing effective, simple cascade, the power to transfer signal from break point,
  • will bring customer convenience at no more frequently repairing; stable data transferring, anti-jamming capability.

Product Datasheet

Items No. Emitting Color Wave Length /CCT Luminous Intensity Forward Voltage Forward Current Viewing Angle
P943 -5050 8 PIN Red 625 ±5 nm 250-900MCD 1.8-2.2V 10-18mA 120°
Blue 470 ±5 nm 200-450MCD 2.7-3.2V 10-18mA
Green 525 ±5 nm 800-1600MCD 2.7-3.2V 10-18mA
Yellow 590 ±5 nm 300-900MCD 1.8-2.2V 10-18mA
Mix White 3000-20000K 1800-3500MCD 7-10V 36-60mA
White 1800-7000K 2800-5000MCD 8-12V 36-60mA

Items No. Emitting Color Wave Length /CCT Luminous Intensity Forward Voltage Forward Current Viewing Angle
P943 -5050 6 PIN Red 625 ±5 nm 270-900MCD 1.8-3.2V 10-18mA 120°
Blue 470 ±5 nm 270-450MCD 2.8-3.2V 10-18mA
Green 525 ±5 nm 800-1300MCD 2.8-3.2V 10-18mA
Mix White 3000-20000K 2000-3200MCD 10-12.5V 36-60mA
White 1800-7000K 3000-8000MCD 10-12.5V 36-60mA

Advantage

Dual signal line transmission;Breakpoint continue,compatible with of controllers in the market.Low-energy consumption.
